R185SMS: Sliding Miter Saw With 7-1/4 in. Multi-Material Cutting Blade


  • Make a Selection
  • - $0.00
The smallest in the Evolution sliding mitre saw family, the R185SMS is ideal for portability, weighing only 20 lbs. Perfect for working in confined areas without compromising on cut capacity and versatility.
  • Multi-Material cutting technology. One saw, one blade, cuts all.*

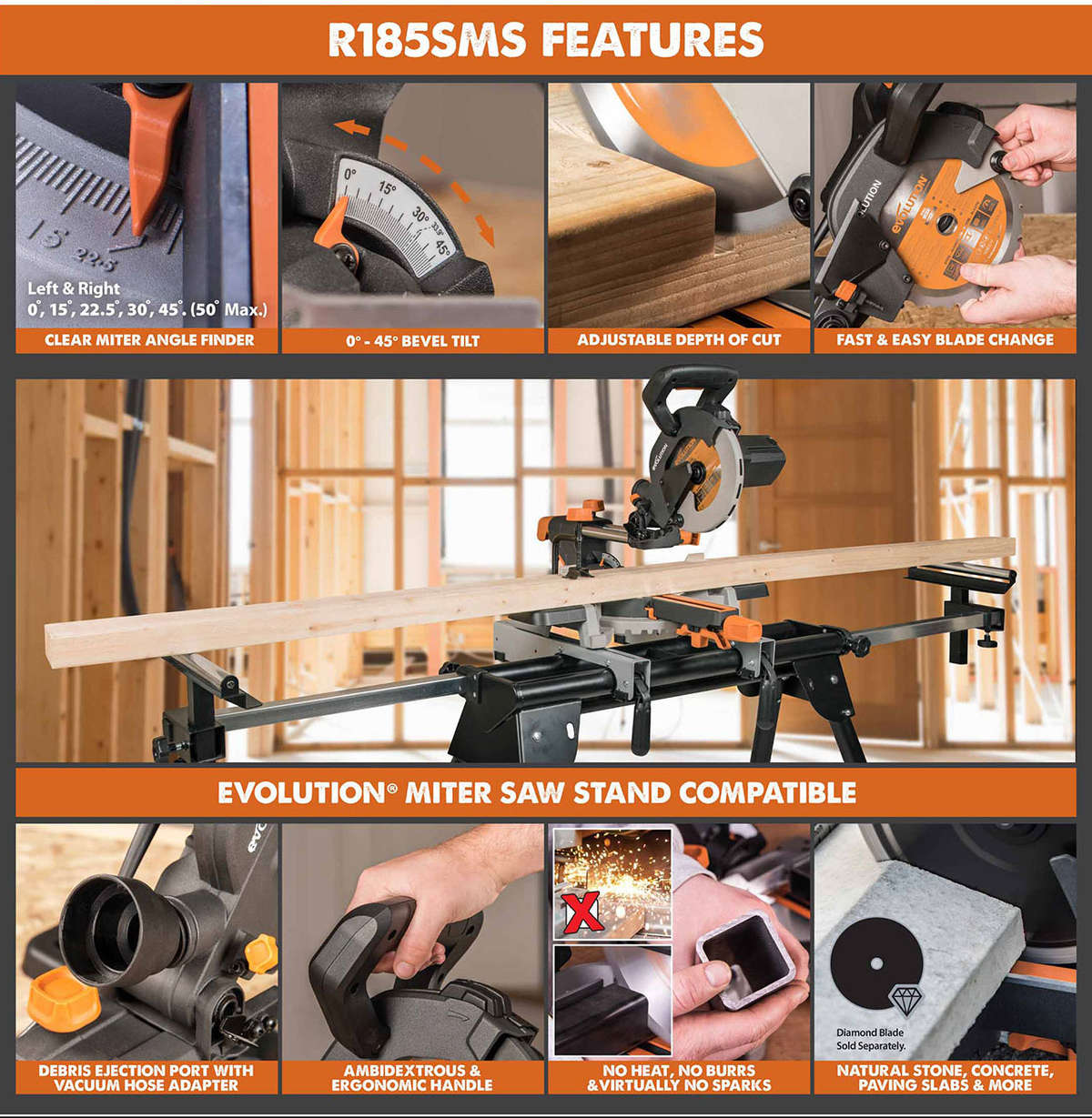

  • Accurate cutting with smooth sliding functionality, adjustable depth of cut and 9 positive mitre stops.
  • Reliable, smooth, square cutting every time in a variety of materials.
  • Powerful 8.3A hi-torque motor with optimised gearbox & blade system.
  • 0° - 45° bevel tilt and 50˚ - 50˚ mitre covers all common cutting angles accurately & easily.
  • 8-1/4 x 2-13/64 in. max. cross cut capacity.
  • Ergonomic trigger handle designed for left and right handed use.
  • Compact, lightweight & robust design, weighing only 8.8kg.
  • Compatible with the Evolution Mitre Saw Stand and 185mm Diamond blade, (sold separately).
  • Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
  • 3 Year limited warranty.

Machine Spec

Speed No Load: 8.3 A
Speed No Load: 3700 rpm
Max. Bevel (Left): 45°
Max. Miter: 50°
Cable Length: 6ft



Blade Spec

Blade Dia.: 7-1/4 In.
No. of Teeth: 16
Bore: 25/32 In.
Kerf: 0.066 in.



Cutting Capacities

Max. Cross Cut (0° x 0°): 8-1/4 In. x 2-1/4 In.
Max. Bevel Cut (0° x 45°): 8-1/4 In. x 1-1/2 In.
Max. Miter Cut (45° x 0°): 5-3/4 In. x 2-1/4 In.
Max. Compound Cut (45° x 45°): 5-3/4 In. x 1-1/2 In.
Mild Steel Box Section
(Max. Wall Thickness):
1/8 In.
Mild Steel Plate
(Max. Thickness):
1/8 In.



Items Included

16T Multi-Material TCT Blade
2 Pc Hold Down Clamp
Machine Table Extensions
Double Ended Hex Key (M6 & M4)
Rotary Table And Neck
Cutting Head
Carriage Slides
Miter Locking Knob
Mains Cable Guide/Clamp (1 Fitted)
Self Tapping Cap Screw
Socket Headed Screws (Fitted)
Cable Clamp Component
Laser Lens Cap (Fitted)
6ft Cable



Dimensions & Weights

Product Dimensions: 11-3/8 In. x 23-1/2 In. x 22-1/4 In.
Packaging Dimensions: 17-33⁄64 In. x 17-1⁄8 In. x 12-13⁄32 In.
Product Weight: 19.6lbs
Packaged Weight: 22.14lbs



Noise Data

Sound Pressure Level LPA: 91,9dB(A)
K=3 dB(A)
Sound Power Level LWA: 104,9dB(A)
K=3 dB(A)



Cutting Applications

 Wood Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
 Ferrous Metal Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
 Non-Ferrous Metal Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
 Plastic Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
 Not Recommended Hardened high carbon, coated and stainless steel.
Note: Cutting galvanized steel may reduce blade life.
