  • Evolution S14CPS Chop Saw Spare Parts (Base Section)

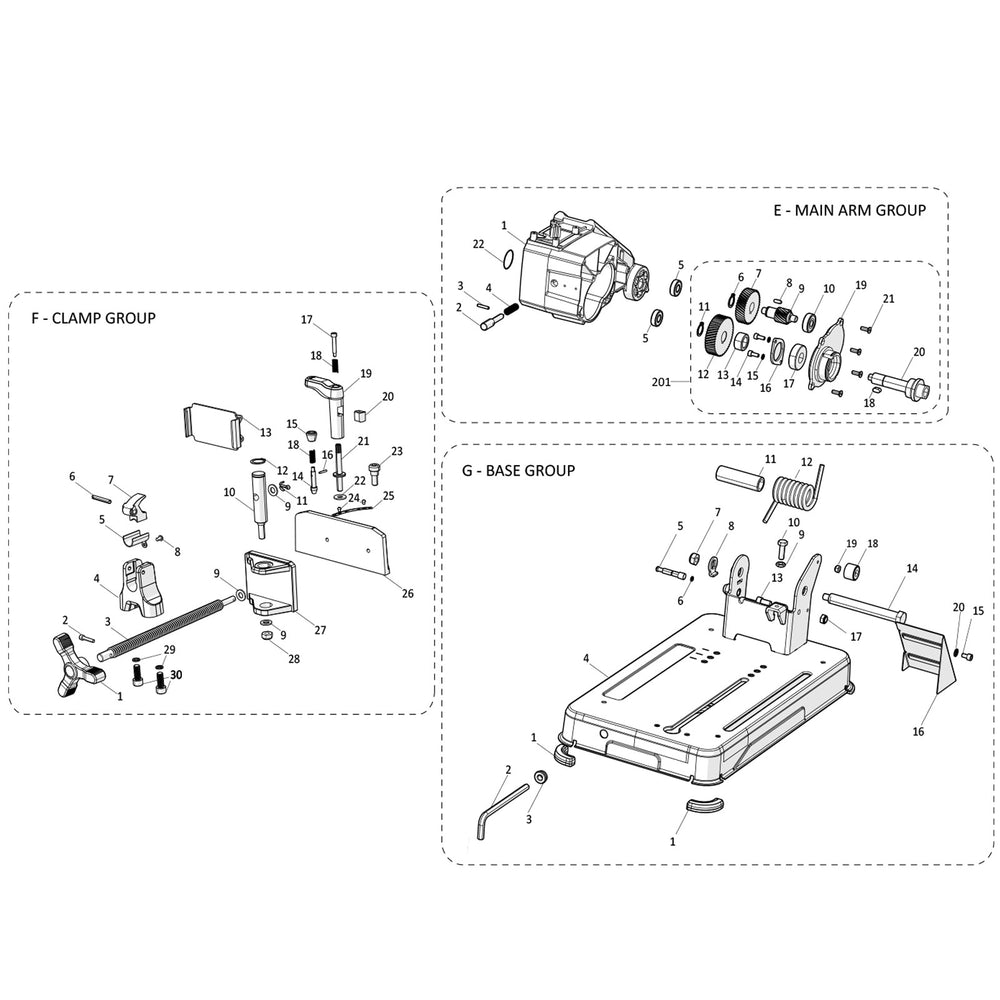

Evolution S14CPS Chop Saw Spare Parts (Base Section)

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 386-8665, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution S14CPS Chop Saw Spare Parts (Base Section)
Evolution S14CPS Chop Saw Spare Parts (Base Section)

Parts List:

Please enter a search term before proceeding.
E01 - Arm (# 083-0160)
$72.99

Only 15 left

E02 - Arbour Locking Pin (# 083-0161)
$2.99

In Stock

E03 - Roller Pin 4x20 (# F-SDL-4-20--ST-BO)
$4.99

Only 20 left

E04 - Locking Pin Spring (# 083-0162)
$2.99

In Stock

E05 - Ball Bearing 6000 YQ (# F-B-6000-2Z)
$3.99

In Stock

E06 - E06 Circlip φ16 (# F-CCEXT-16-100-ST-BO)
$2.99

In Stock

E07 - 1st Drive Gear (# 083-0163)
$9.60

Only 20 left

E08 - Key 5x5x12 (# 083-0164)
$0.96

In Stock

E09 - Gear Shaft (# 083-0165)
$6.00

In Stock

E10 - Ball Bearing 6200 YQ (# F-B-6200-2Z)
$5.99

In Stock

E11 - E11 Circlip φ17 (# F-CCEXT-17-100-ST-BO)
$0.96

In Stock

E12 - 2nd Drive Gear (# 083-0166)
$9.60

In Stock

E13 - Gear Spacer (# 083-0167)
$1.85

In Stock

E14 - Socket Cap Screw M5x12 (# F-SHCS-M5-12-ST-BO)
$2.99

In Stock

E15 - E15 Spring Washer φ5 (# F-SWA-M5-ST-BO)
$2.99

In Stock

E16 - Bearing Bracket (# 083-0168)
$1.85

In Stock

E17 - Ball Bearing 6203 YQ (# F-B-6203-2Z)
$6.00

In Stock

E18 - Key 6x6x14 (# 083-0169)
$0.96

In Stock

E19 - Gear Box Cover (# 083-0170)
$6.00

In Stock

E20 - Arbour Shaft (# 083-0171)
$6.00

In Stock

E21 - Socket Cap Countersunk Screw M5x15 (# F-SCHPZ-M5-15-ST-BO)
$2.99

In Stock

E22 - Rubber Bearing Ring (# 083-0196)
$2.99

In Stock

E201 - Gearbox Assembly (R355) (# 083-0055)
$63.99

Out of Stock

F01 - Clamp Bar Handle Blue (# 084-0132)
$5.99

Only 2 left

F02 - Pozi Pan Head Screw M5x25 (# F-SPHPZ-M5-25-ST-BO)
$2.99

In Stock

F03 - Clamp Bar - 20mm/Trapezoid (# 084-0133)
$5.99

Out of Stock

F04 - Clamp Bar Support - QR (# 084-0134)
$9.99

Only 7 left

F05 - Clamp Bar Wear Plate (# 084-0135)
$2.99

In Stock

F06 - Quick Release Vice Roller Pin (# F-SDL-6-40-ST-BO)
$2.99

In Stock

F07 - Quick Release Vice (# 084-0137)
$4.99

Out of Stock

F08 - Pozi Pan Head Screw M5x8 (# F-SPHPZ-M5-8-ST-BO)
$1.25

In Stock

F09 - F09 Washer φ10xφ20x2 (# F-W-M10-ST-BO)
$1.25

In Stock

F10 - Moving Vice Spindle - QR (# 084-0138)
$3.99

Out of Stock

F11 - Split Pin 3x25 (# 083-0176)
$2.99

In Stock

F12 - F12 Circlip φ22 (# F-CCEXT-22-120-ST-BO)
$2.99

In Stock

F13 - V-Vice Assembly - Steel (# 084-0139)
$5.99

Only 18 left

F14 - 45° Locking Pin (# 084-0140)
$2.99

In Stock

F15 - 45° Locking Knob (# 084-0141)
$2.99

In Stock

F16 - Roller Pin 3.2x18 (# F-SDL-3-18-ST-BO)
$2.99

In Stock

F17 - Quick Release Lever Shaft Screw (# 084-0142)
$2.99

In Stock

F18 - Locking Pin Spring (# 084-0143)
$2.99

In Stock

F19 - Quick Release Lever Blue (# 084-0144)
$5.99

In Stock

F20 - Quick Release Lever Shaft Insert (# 084-0145)
$2.99

Only 20 left

F21 - Quick Release Lever Shaft (# 084-0146)
$3.99

Only 4 left

F22 - Quick Release Lever Shaft Washer (# 084-0147)
$2.99

In Stock

F23 - Socket Cap Shoulder Screw (# 084-0148)
$2.99

In Stock

F24 - Pozi Pan Head Screw M4x5 (# F-SPHPZ-M4-5-ST-BO)
$2.99

Only 7 left

F25 - Fence Scale (# 084-0149)
$2.99

In Stock

F26 - Fence - Cast (# 084-0150)
$16.85

In Stock

F27 - Moving Vice Jaw - Cast (# 084-0151)
$34.99

Only 9 left

F28 - Locking Nut M10 (# F-NNIF-M10-ST-BO)
$2.99

In Stock

F29 - F29 Spring Washer φ8 (# F-SWA-M8-ST-BO)
$5.99

In Stock

F30 - Socket Cap Screw M8x25 (# F-SHCS-M8-25-ST-BO)
$5.99

Only 9 left

G01 - Rubber Foot 083 (# 083-0184)
$2.99

In Stock

G02 - Allen Key S=8 (# F-HEXKEY-M6-ST-BO)
$2.99

In Stock

G03 - Rubber Grommet (# 083-0185)
$2.99

In Stock

G04 - Base Assembly (# 083-0186)
$42.99

Only 8 left

G05 - Head Lock-Down Pin 083 (# 083-0187)
$2.99

In Stock

G06 - O Ring 4.5x1.8 (# 083-0188)
$2.99

In Stock

G07 - Locking Nut M10 (# F-NNIF-M10-ST-BO)
$2.99

In Stock

G08 - Shaft Stop Washer (# 083-0189)
$2.99

In Stock

G09 - Hex Nut M8 (# F-NSF-M8-ST-BO)
$4.99

Only 3 left

G10 - Hex Screw M8x25 (# F-HSS-M8-ST-BO)
$4.99

Only 3 left

G11 - Main Torsion Spring Spacer (# 083-0190)
$2.99

In Stock

G12 - Main Torsion Spring 083 (# 083-0191)
$3.99

Only 16 left

G13 - Socket Cap Screw M8x16 (# F-SHCS-M8-16-ST-BO)
$2.99

Out of Stock

G14 - Arm Pivot Shaft 083 (# 083-0192)
$3.99

In Stock

G15 - Socket Cap Screw M6x10 (# F-SHCS-M6-10-ST-BO)
$1.25

In Stock

G16 - Chip Deflector - Pressed (# 083-0194)
$2.99

In Stock

G17 - Locking Nut M8 (# F-NNIF-M8-ST-BO)
$2.99

In Stock

G18 - Main Linkage Spacer (# 083-0193)
$2.99

In Stock

G19 - Locking Nut M6 (# F-NNIF-M6-ST-BO)
$1.25

In Stock

G20 - G20 Spring Washer φ6 (# F-SWA-M6-ST-BO)
$14.99

In Stock
