Evolution R255DCT 10 In. Concrete Saw Spare Parts

Latest Model

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 EVO-TOOL, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution R255DCT Spare Parts
Evolution R255DCT 10 In. Concrete Saw Spare Parts

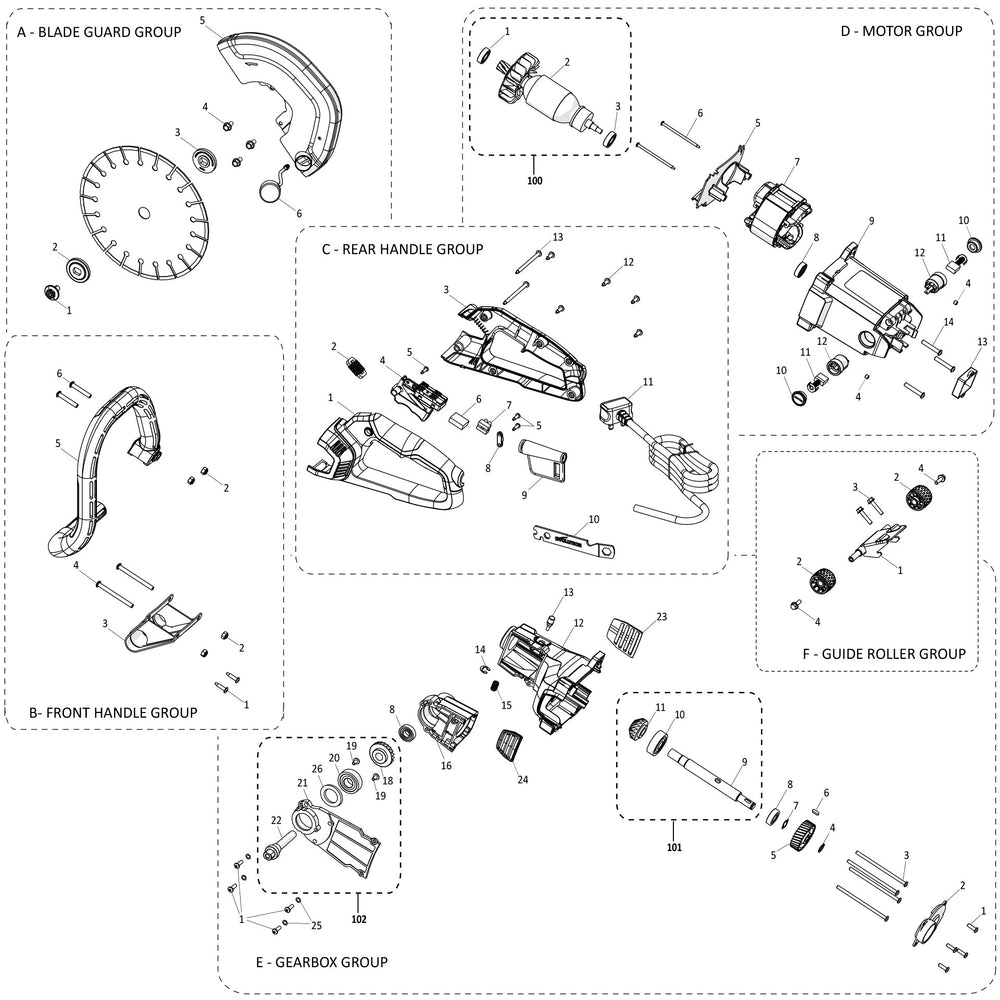

Parts List:

Please enter a search term before proceeding.
A01 - Blade Bolt x1 (# 012-0211)
$2.99

In Stock

A02 - Flange Outer 45mm Pressed x1 (# 010-0114-A1)
$7.99

In Stock

A03 - Flange Inner 45mm Pm x1 (# 010-0113-A1)
$6.99

In Stock

A04 - Screw Hex Flanged Steel Bo M5 16mm x1 (# F-HFS-M5-16-ST-BO)
$2.99

In Stock

A05* - 255mm Blade Guard x1 (# 010-0150-A1)
$50.99

Only 10 left

A06 - Dust Port Cap x1 (# 010-0162-A1)
$2.99

In Stock

B01 - Screw Button Self-Tapping Torx Steel Bo M5 20mm x1 (# F-TFPHT-5-20-ST-BO)
$8.99

In Stock

B02 - Nut Full Nyloc Steel Bo M6 x1 (# F-NNIF-M6-ST-BO)
$10.99

In Stock

B03 - Skid Plate x1 (# 010-0157-A1)
$6.99

Only 20 left

B04 - Screw Button Torx Steel Bo M6 70mm x1 (# F-SPHT-M6-70-ST-BO)
$8.99

In Stock

B05 - Front Bale Handle x1 (# 010-0159-A1)
$10.99

Only 17 left

B06 - Screw Button Torx Steel Bo M6 35mm x1 (# F-SPHT-M6-35-ST-BO)
$2.99

In Stock

C01 - Rear Handle Lh x1 (# 010-0152-A1)
$10.99

Only 8 left

C02 - Rf Choke x1 (# 010-0146)
$2.99

Out of Stock

C03 - Rear Handle Rh x1 (# 010-0153-A1)
$9.99

Only 8 left

C04 - Trigger Switch x1 (# 012-0135)
$9.99

Only 16 left

C05 - Screw Button Self-Tapping Torx Steel Bo M4 15mm x1 (# F-TFPHT-M4-15-ST-BO)
$2.99

In Stock

C06* - Capacitor x1 (# 010-0118)
$3.99

Out of Stock

C07 - Wire Block Connector x1 (# 010-0120)
$2.99

Only 7 left

C08 - Wire Restraint Saddle x1 (# 012-0174-A1)
$2.99

In Stock

C09* - Cable Strain Relief x1 (# 010-0156-A1)
$2.99

In Stock

C10 - Spanner x1 (# 012-0176-A1)
$4.99

In Stock

C11* - cable 120V 4M/13Ft x1 (# 010-0129)
$13.99

Only 15 left

C13 - Screw Button Self-Tapping Torx Steel Bo M5 70mm x1 (# F-TFPHT-5-70-ST-BO)
$2.99

In Stock

D04 - Set Screw Flat Point Steel Bo M6 5mm x1 (# F-SSCFP-M6-5-ST-BO)
$2.99

In Stock

D05 - Motor Fan Baffle x1 (# 010-0116-A1)
$4.99

Only 20 left

D06 - Screw Button Self-Tapping Torx Steel Bo M4 75mm x1 (# F-TFPHT-4-75-ST-BO)
$2.99

In Stock

D07* - Field Coil x1 (# 010-0136)
$70.99

Only 20 left

D08 - Rear Motor Bearing Bush x1 (# 012-0173-A1)
$3.99

Only 8 left

D09 - Motor Housing x1 (# 010-0151-A1)
$41.99

Only 13 left

D10 - Brush Holder Screw Cap x1 (# 010-0160)
$2.99

Only 13 left

D11* - Carbon Brush 110-120v x1 (# 012-0189)
$9.99

In Stock

D12 - Brush Holder x1 (# 012-0168-A1)
$12.99

Only 19 left

D13* - Soft Start PCB x1 (# 010-0138)
$20.99

In Stock

D14 - Screw Button Torx Steel Bo M6 25mm (# F-SPHT-M6-25-ST-BO)
$8.99

In Stock

D100 - 15a Armature Assembly 110-120v (# 010-0051)
$2.99

Only 9 left

E01 - Screw Button Torx Steel Bo M5 16mm x1 (# F-SPHT-M5-16-ST-BO)
$8.99

In Stock

E02 - Helical Gearbox Cover x1 (# 010-0103-A1)
$3.99

Only 15 left

E03 - Screw Button Torx Steel Bo M5 100mm x1 (# F-SPHT-M5-100-ST-BO)
$2.99

In Stock

E04 - Circlip External Heavy Duty 12mm x1 (# F-CCEXT-12-100-ST-BO)
$8.99

In Stock

E05 - Helical Gear x1 (# 010-0106-A1)
$10.99

Only 10 left

E06 - Key Woodruff 4X4x12 x1 (# 010-0139)
$2.99

In Stock

E07 - Washer Wave 12.5id 1.2h x1 (# F-WW-M12-ST-BO)
$8.99

In Stock

E08 - 6001-2Z Bearing Ball 28Od 12Id 08W x1 (# F-B-6001-2Z)
$10.99

Only 16 left

E12 - Helical Gearbox x1 (# 010-0101-A1)
$40.99

Only 9 left

E13 - Arbor Lock Pin x1 (# 010-0111-A1)
$2.99

In Stock

E14 - E-Clip External Heavy Duty 10mm x1 (# F-ECLIP-10-080-ST-BO)
$2.99

In Stock

E15 - Arbor Lock Spring x1 (# 012-0113-A1)
$2.99

In Stock

E16 - Bevel Gearbox x1 (# 010-0102-A2)
$28.99

Only 3 left

E23 - Front Vent Left x1 (# 010-0163)
$2.99

Only 5 left

E24 - Front Vent Right x1 (# 010-0164)
$2.99

Only 5 left

E25 - M5 Spring Washer x1 (# F-SWA-M5-ST-BO)
$15.99

In Stock

E101 - Drive Shaft Assembly x1 (# 010-0060)
$40.99

Only 9 left

E102 - Bevel Gearbox Assembly x1 (# 010-0061)
$56.99

Only 9 left

F100 - Trolley Assembly x1 (# 010-0172)
$17.99

Only 6 left
