Evolution R300DCT 12 In. Concrete Saw Spare Parts

Latest Model

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 EVO-TOOL, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution R300DCT Spare Parts
Evolution R300DCT 12 In. Concrete Saw Spare Parts

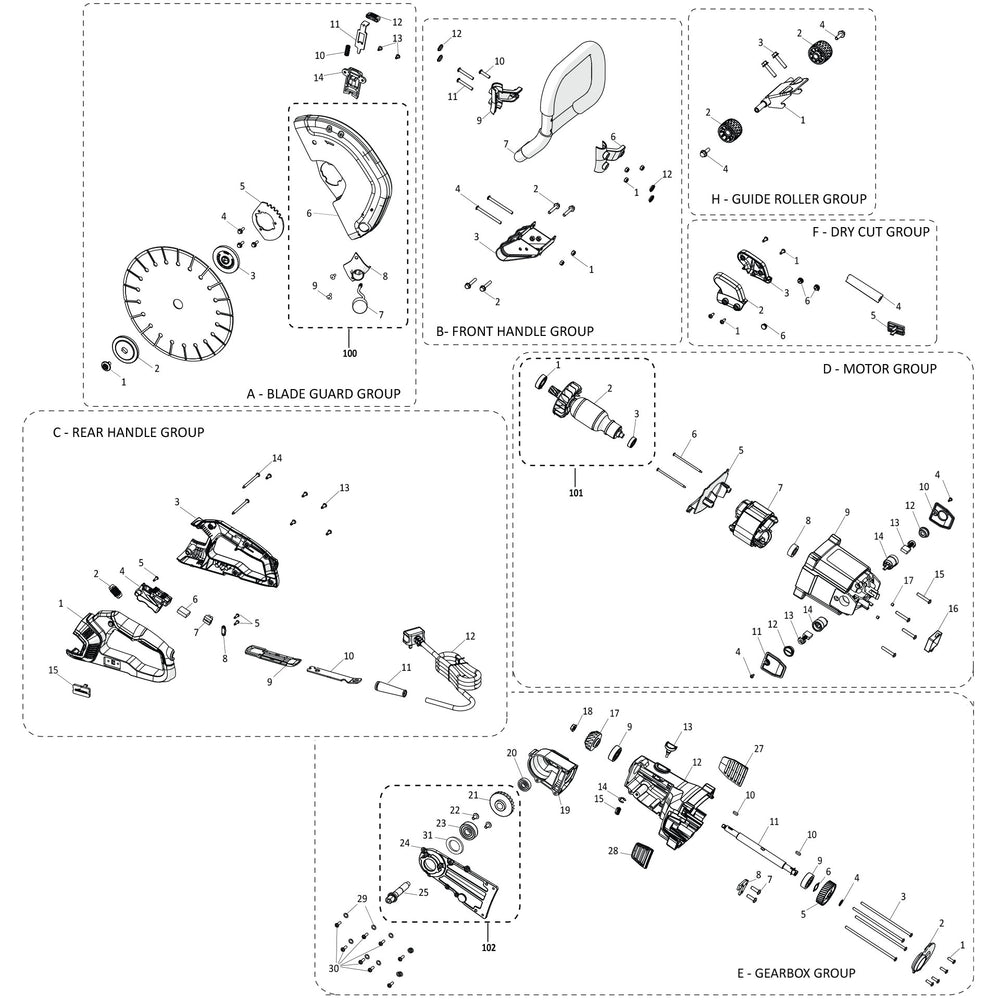

Parts List:

Please enter a search term before proceeding.
A01 - Blade Bolt x1 (# 012-0211)
$2.99

In Stock

A02 - Flange Outer 70mm Pressed x1 (# 012-0203)
$12.99

In Stock

A03 - Flange Inner 70mm Pm Usa (1 In/25.4mm) x1 (# 012-0205)
$5.99

In Stock

A04 - Screw Hex Flanged Steel Bo M5 16mm x1 (# F-HFS-M5-16-ST-BO)
$2.99

In Stock

A05 - 12" Blade Guard Retaining Plate x1 (# 012-0119-A2)
$3.99

Only 10 left

A10 - 12" Blade Guard Rotation Lock Spring x1 (# 012-0122-A1)
$2.99

In Stock

A11 - 12" Blade Guard Rotation Lock Tab x1 (# 012-0121-A2)
$2.99

Out of Stock

A12 - 12" Blade Guard Rotation Lock Knob x1 (# 012-0124-A1)
$2.99

In Stock

A13 - Screw Button Self-Tapping Torx Steel Bo M5 10mm x1 (# F-TFPHT-5-10-ST-BO)
$2.99

In Stock

A14 - 12" Blade Guard Rotation Lock Cover x1 (# 012-0123-A3)
$3.99

In Stock

A100 - 12" Guard Assembly x1 (# 012-0055)
$62.99

Only 14 left

B01 - Nut Full Nyloc Steel Bo M6 x1 (# F-NNIF-M6-ST-BO)
$10.99

In Stock

B02 - Screw Hex Flanged Steel Bo M6 16mm x1 (# F-HFS-M6-16-ST-BO)
$8.99

In Stock

B03 - Skid Plate x1 (# 012-0120-A2)
$8.99

In Stock

B04 - Screw Button Torx Steel Bo M6 70mm x1 (# F-SPHT-M6-70-ST-BO)
$8.99

In Stock

B06 - Front Bale Handle Support Bracket Back x1 (# 012-0166-A1)
$2.99

Only 2 left

B07 - Front Bale Handle W / Overmould x1 (# 012-0181)
$83.99

Only 15 left

B09 - Front Bale Handle Support Bracket Front x1 (# 012-0165-A1)
$2.99

Only 2 left

B10 - Screw Cap Torx Steel Bo M6 25mm x1 (# F-SPHT-M6-25-ST-BO)
$8.99

In Stock

B11 - Screw Cap Torx Steel Bo M6 40mm x1 (# F-SPHT-M6-40-ST-BO)
$8.99

In Stock

B12 - Front Handle Bracket Screw Cap x1 (# 012-0209)
$2.99

In Stock

C01 - Rear Handle Rh x1 (# 012-0153-1-A1)
$13.99

Only 19 left

C02 - Rf Choke x1 (# 012-0131)
$2.99

Out of Stock

C03 - Rear Handle Lh x1 (# 012-0152-1-A1)
$13.99

Only 20 left

C04 - Trigger Switch x1 (# 012-0135)
$9.99

Only 16 left

C05 - Screw Button Self-Tapping Torx Steel Bo M4 15mm x1 (# F-TFPHT-4-15-ST-BO)
$8.99

In Stock

C06* - Capacitor x1 (# 012-0132)
$3.99

Out of Stock

C07 - Wire Block Connector x1 (# 012-0136)
$2.99

Only 6 left

C08 - Wire Restraint Saddle x1 (# 012-0174-A1)
$2.99

In Stock

C09 - Tool Storage Housing x1 (# 012-0175-A1)
$2.99

In Stock

C10 - Spanner x1 (# 012-0176-A1)
$4.99

In Stock

C11* - Cable Strain Relief x1 (# 012-0180-A1)
$2.99

Only 16 left

C12* - cable 120V 3M/10Ft x1 (# 012-0140)
$9.99

Only 2 left

C13 - Screw Button Self-Tapping Torx Steel Bo M5 15mm x1 (# F-TFPHT-M5-15-ST-BO)
$8.99

In Stock

C14 - Screw Button Self-Tapping Torx Steel Bo M5 70mm x1 (# F-TFPHT-M5-70-ST-BO)
$8.99

In Stock

C15 - Rear Handle Lh Water Blanking Plate x1 (# 012-0158-A1)
$4.99

In Stock

D04 - Screw Button Self-Tapping Torx Steel Bo M4 10mm x1 (# F-TFPHT-4-10-ST-BO)
$8.99

In Stock

D05 - Motor Fan Baffle x1 (# 012-0130-A1)
$4.99

Only 15 left

D06 - Screw Button Self-Tapping Torx Steel Bo M4 70mm x1 (# F-TFPHT-M4-70-ST-BO)
$8.99

In Stock

D07* - Field Coil 2000w/15a 110-120v x1 (# 012-0196)
$8.99

Only 9 left

D08 - Rear Motor Bearing Bush x1 (# 012-0173-A1)
$3.99

Only 8 left

D09 - Motor Housing x1 (# 012-0151-A1)
$50.99

Only 10 left

D10 - Brush Cover Cap Lh x1 (# 012-0154-A1)
$2.99

Only 12 left

D11 - Brush Cover Cap Rh x1 (# 012-0155-A1)
$2.99

Only 16 left

D12 - Brush Holder Screw Cap x1 (# 010-0160)
$2.99

Only 13 left

D13* - Carbon Brush 110-120v (# 012-0189)
$9.99

In Stock

D14 - Brush Holder x1 (# 012-0168-A1)
$12.99

Only 19 left

D15 - Screw Button Torx Steel Bo M6 25mm x1 (# F-SPHT-M6-25-ST-BO)
$8.99

In Stock

D16* - Soft Start Pcb x1 (# 012-0149)
$43.99

Only 8 left

D17 - Set Screw Flat Point Steel Bo M6 8mm x1 (# F-SSCFP-M6-8-ST-BO)
$8.99

In Stock

D101 - 15a Armature Assembly 110-120v x1 (# 012-0051)
$116.99

Only 4 left

E01 - Screw Countersunk Torx Steel Bo M5 16mm x1 (# F-SCHT-M5-16-ST-BO)
$8.99

In Stock

E02 - Helical Gearbox Cover x1 (# 012-0103-A1)
$3.99

In Stock

E03 - Screw Button Torx Steel Bo M5 140mm x1 (# F-SPHT-M5-140-ST-BO)
$8.99

In Stock

E04 - Circlip External Heavy Duty 12mm x1 (# F-CCEXT-12-100-ST-BO)
$8.99

In Stock

E05 - Helical Gear x1 (# 012-0106-A1)
$22.99

Only 10 left

E06 - Washer Wave 12.5id 1.5h x1 (# F-WW-M12-ST-BO)
$8.99

In Stock

E07 - Screw Button Torx Steel Bo M6 16mm x1 (# F-SPHT-M6-16-ST-BO)
$8.99

In Stock

E08 - Front Handle Clamp Mount Bracket x1 (# 012-0127-A3)
$3.99

Only 20 left

E09 - 6301-2Z Bearing Ball 37Od 12Id 12W x1 (# F-B-6301-2Z)
$11.99

Only 4 left

E10 - Key Woodruff 4X4x12 x1 (# 012-0197)
$2.99

Only 13 left

E11 - Drive Shaft x1 (# 012-0111-A2)
$31.99

Only 6 left

E12 - Helical Gearbox x1 (# 012-0101-A1)
$46.99

Only 10 left

E13 - Arbor Lock Pin x1 (# 012-0112-A2)
$2.99

Only 15 left

E14 - E-Clip External Heavy Duty 10mm x1 (# F-ECLIP-10-100-ST-BO)
$8.99

In Stock

E15 - Arbor Lock Spring x1 (# 012-0113-A1)
$2.99

In Stock

E17 - Bevel Pinion x1 (# 012-0107-A1)
$31.99

Only 10 left

E18 - Nut Full Flanged Serated Steel Bo M8 x1 (# F-NFS-M8-ST-BO)
$8.99

In Stock

E19 - Bevel Gearbox x1 (# 012-0102-A1)
$36.99

Only 9 left

E20 - 6200 Bearing Ball 30Od 10Id 09W x1 (# F-B-6200-2Z)
$5.99

In Stock

E27 - Front Vent Left x1 (# 012-0207)
$3.99

Only 10 left

E28 - Front Vent Right x1 (# 012-0208)
$3.99

Only 10 left

E29 - Spring Washer M5 x1 (# F-SWA-M5-ST-BO)
$15.99

In Stock

E30 - Screw Button Torx Steel Bo M5 16mm (# F-SBT-M5-16-ST-BO)
$2.99

Out of Stock

E102 - Bevel Gearbox Assembly x1 (# 012-0060)
$56.99

Only 9 left

F01 - Screw Button Self-Tapping Torx Steel Bo M5 15mm x1 (# F-TFPHT-M5-15-ST-BO)
$8.99

In Stock

F02 - None Water Outlet Handle Lh x1 (# 012-0177-A1)
$2.99

Only 13 left

F03 - None Water Outlet Handle Rh x1 (# 012-0178-A1)
$2.99

Only 13 left

F04 - Motor Housing Water Guide Blanking Plate x1 (# 012-0157-A1)
$2.99

Only 4 left

F05 - Rear Handle Lh Water Blanking Plate x1 (# 012-0158-A1)
$4.99

In Stock

F06 - None Water Bung x1 (# 012-0206)
$2.99

In Stock

H100 - Trolley Assembly x1 (# 012-0213)
$20.99

Only 2 left
