  • Evolution S380CPS Spare Parts (Head)

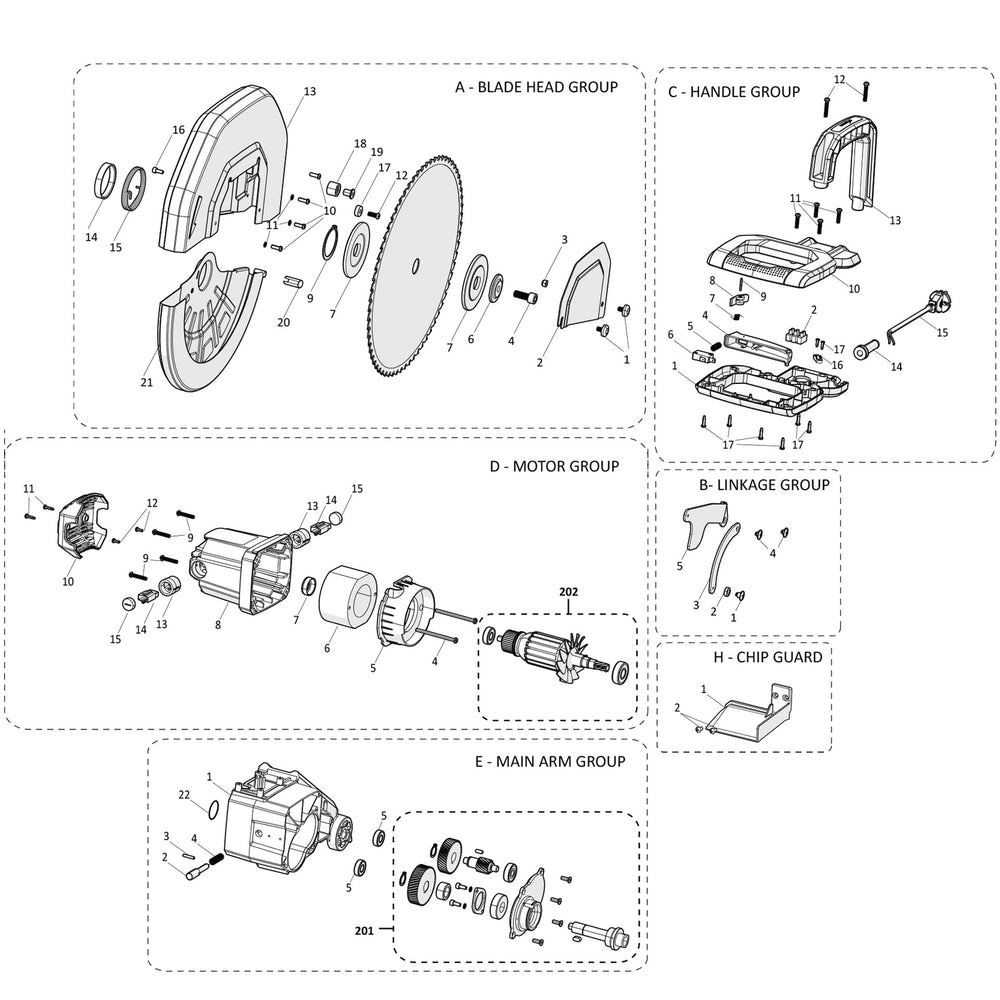

Evolution S380CPS Chop Saw Spare Parts (Head)

Latest Model

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 EVO-TOOL, toll free. They will find the part and create the order for you, with FREE delivery.

Related Spare Parts

Evolution S380CPS Spare Parts (Head)
Evolution S380CPS Chop Saw Spare Parts (Head)

Parts List:

Please enter a search term before proceeding.
A01 - Arbour Cover Screw x1 (# 083-0101)
$2.99

Out of Stock

A02 - Arbour Cover x1 (# 083-0102)
$116.99

In Stock

A03 - Locking Nut M6 x1 (# F-NSH--M6-ST-BO)
$2.99

Out of Stock

A04 - Socket Cap Screw M10X25 x1 (# F-SHCS-M10-25-ST-BO)
$2.99

In Stock

A06 - Blade Washer x1 (# 083-0103)
$2.99

Only 6 left

A07 - Flange 89 x1 (# 084-0104)
$4.99

Out of Stock

A07 - Flange 100 x1 (# 084-0101)
$18.99

Only 1 left

A09 - Circlip Φ48 x1 (# F-CCEXT-48-120-ST-BO)
$3.99

Out of Stock

A10 - Pozi Pan Head Screw M5x14 x1 (# F-SPHPZ-M5-14-ST-BO)
$4.99

In Stock

A11 - Spring Washer Φ5 x1 (# F-SWA-M5-ST-BO)
$15.99

In Stock

A12 - Pozi Pan Head Screw M6x12 x1 (# F-SPHPZ-M6-12-ST-BO)
$9.99

Only 8 left

A13 - Blade Head Assembly 380 x1 (# 084-0102)
$80.99

Only 2 left

A14 - Moving Guard Spring Spacer 380 x1 (# 084-0103)
$2.99

Out of Stock

A15 - Moving Guard Spring x1 (# 083-0107)
$2.99

In Stock

A16 - Socket Cap Screw M5x12 x1 (# F-SHCS-M5-12-ST-BO)
$2.99

In Stock

A17 - Ball Bearing 606 x1 (# F-B-606-2Z)
$8.99

Out of Stock

A18 - Bump Stop x1 (# 083-0108)
$2.99

Only 5 left

A19 - Bump Stop Fixing x1 (# 083-0109)
$2.99

In Stock

A20 - Slider Cap x1 (# 083-0110)
$2.99

In Stock

A21 - Moving Guard Assembly 380 x1 (# 084-0105)
$13.99

Only 1 left

B01 - Linkage Shoulder Screw Upper x1 (# 083-0115)
$2.99

In Stock

B02 - Screw Spacer x1 (# 083-0116)
$2.99

Out of Stock

B03 - Small Linkage x1 (# 083-0117)
$5.99

Only 9 left

B04 - Linkage Shoulder Screw Middle x1 (# 083-0118)
$2.99

Out of Stock

B05 - Main Linkage x1 (# 083-0119)
$7.99

Only 6 left

C01 - Main Handle Lower x1 (# 083-0121)
$21.99

Only 8 left

C02 - Terminal Block x1 (# 083-0122)
$2.99

Only 20 left

C04 - Main Trigger Blue x1 (# 084-0106)
$6.99

In Stock

C05 - Main Trigger Spring x1 (# 083-0126)
$3.99

In Stock

C06 - Switch x1 (# 083-0127)
$18.99

In Stock

C07 - Trigger Lock Spring x1 (# 083-0128)
$2.99

In Stock

C08 - Lock Trigger x1 (# 083-0129)
$2.99

In Stock

C09 - Trigger Lock Pin x1 (# 083-0130)
$4.99

Out of Stock

C10 - Main Handle Upper x1 (# 083-0131)
$15.99

Out of Stock

C11 - Pozi Pan Head Screw M5X30 W/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$13.99

Only 10 left

C12 - Pozi Pan Head Screw M5X30 W/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$13.99

Only 10 left

C13 - Carry Handle x1 (# 083-0132)
$8.99

Only 8 left

C14 - Cable Sleeve Large x1 (# 083-0134)
$3.99

Only 16 left

C15 - Cable R10F x1 (# 084-0110)
$2.99

Out of Stock

C16 - Cable Strain Clamp x1 (# 083-0140)
$2.99

In Stock

C17 - Pozi Pan Head Tapping Screw St4x16 x1 (# F-TFPX-4-16-ST-BO)
$13.99

In Stock

D01 - Ball Bearing 6202 YQ x1 (# F-B-6202-2Z)
$2.99

In Stock

D02 - Armature 65/110-120V 1800W/15A x1 (# 084-0120)
$94.99

Only 19 left

D03 - Ball Bearing 629 YQ x1 (# F-B-629-2Z)
$2.99

Only 20 left

D04 - Pozi Pan Head Tapping Screw St5X80 x1 (# F-TFPX-5-80-ST-BO)
$4.99

In Stock

D05 - Air Baffle 65 x1 (# 084-0125)
$8.99

In Stock

D06 - Stator x1 (# 084-0126)
$63.99

Out of Stock

D07 - Ball Bearing Cap x1 (# 053-0270)
$10.99

Out of Stock

D08 - Motor Housing x1 (# 083-0150)
$22.99

Out of Stock

D09 - Pozi Pan Head Screw M5X30 W/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$13.99

Only 10 left

D10 - End Cap Blue x1 (# 084-0131)
$7.99

In Stock

D11 - Pozi Pan Head Tapping Screw St4x16 x1 (# F-TFPX-4-16-ST-BO)
$13.99

In Stock

D12 - Pozi Pan Head Screw M4x10 x1 (# F-SPHPZ-M4-10-ST-BO)
$15.99

In Stock

D13 - Brush Holder x1 (# 083-0152)
$5.99

In Stock

D14 - Carbon Brush 110-120V x1 (# 083-0154)
$9.99

In Stock

D15 - Brush Holder Cover x1 (# 083-0155)
$3.99

In Stock

D202 - Armature 65 Assembly x1 (# 084-0050)
$101.99

Out of Stock

E01 - Arm x1 (# 083-0160)
$73.99

Only 6 left

E02 - Arbour Locking Pin x1 (# 083-0161)
$9.99

In Stock

E03 - Roller Pin 4X20 x1 (# F-SDL-4-20--ST-BO)
$4.99

Only 20 left

E04 - Locking Pin Spring x1 (# 083-0162)
$2.99

In Stock

E05 - Ball Bearing 6000 Yq x1 (# F-B-6000-2Z)
$11.99

In Stock

E07 - 1st Drive Gear x1 (# 083-0163)
$9.99

Only 20 left

E08 - Key 5x5x12 x1 (# 083-0164)
$2.99

In Stock

E09 - Gear Shaft x1 (# 083-0165)
$5.99

In Stock

E10 - Ball Bearing 6200 YQ x1 (# F-B-6200-2Z)
$5.99

In Stock

E12 - 2nd Drive Gear x1 (# 083-0166)
$9.99

In Stock

E13 - Gear Spacer x1 (# 083-0167)
$2.99

In Stock

E14 - Socket Cap Screw M5x12 x1 (# F-SHCS-M5-12-ST-BO)
$2.99

In Stock

E16 - Bearing Bracket x1 (# 083-0168)
$2.99

In Stock

E17 - Ball Bearing 6203 YQ x1 (# F-B-6203-2Z)
$5.99

In Stock

E18 - Key 6x6x14 x1 (# 083-0169)
$2.99

In Stock

E19 - Gear Box Cover x1 (# 083-0170)
$5.99

In Stock

E20 - Arbour Shaft x1 (# 083-0171)
$5.99

In Stock

E21 - Socket Cap Countersunk Screw M5x15 x1 (# F-SCHPZ-M5-15-ST-BO)
$2.99

In Stock

E22 - Rubber Bearing Ring x1 (# 083-0196)
$2.99

In Stock

E201 - Gearbox Assembly (S355/380) x1 (# 084-0055)
$64.99

In Stock

H01 - Chip Guard x1 (# 084-0170)
$7.99

In Stock

H02 - Pozi Pan Head Screw M5X8 x1 (# F-SPHPZ-M5-8-ST-BO)
$2.99

In Stock
