Evolution S355MCS: Metal Cutting Mitering Chop Saw With 14 in. Mild Steel Blade | Heavy Duty

$800.00

Earn 801 EVO Points with purchase.

Evolution S355MCS: Metal Cutting Mitering Chop Saw With 14 in. Mild Steel Blade | Heavy Duty

SKU: 102-0004

EAN/UPC: 849713097286

Discontinued
  • Mitering Base & Blade
  • Dual-sliding Cast Iron Clamps
  • Sliding Head with Locking Pin
  • Top Clamp & knurled fence.
  • Powerful 15A
    • Read more

Specifications

Blade Size 14 In.
Warranty 3 Years
Power Corded
Max. Cut Capacity
  • 4-3/4" x 4-3/4"
Max. Miter
  • +/- 46°
Learn More

3 Years Warranty Register Your Warranty

45-Day Satisfaction Guarantee

Download Instruction Manual
Download Assembly Guide
Download Parts Diagram
Discontinued
$800.00
Pay-In-4 : $200.00 per month

Out of stock

If you are tax-exempt, please contact customer service for further assistance. Call (833) 685-8472

Hear From Our Customers!

Description

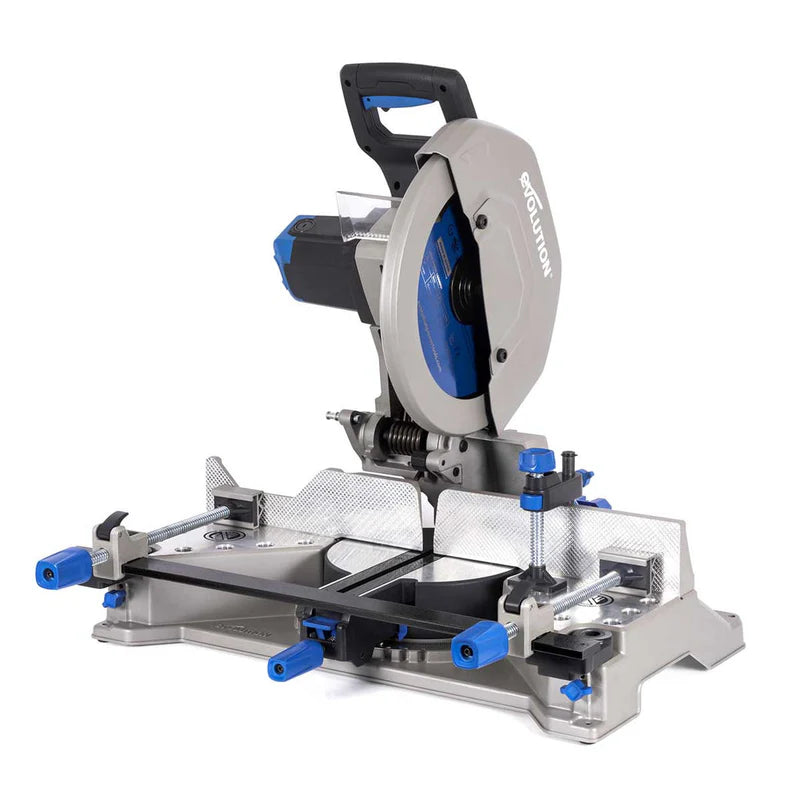

Built for professionals, the S355MCS Mitering Chop Saw from Evolution is the first 14” TCT industrial Chop Saw that allows you to produce accurate miter cuts without having to reposition the workpiece.

  • Designed to tackle heavy cuts in oversized metal pieces the S355MCS Mitering Chop Saw features a precision adjustable miter table, 3-position saw head, and our unique, height adjustable front clamp rail assembly.
  • It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time.
  • Powerful 15A motor.
  • Easy ambidextrous controls and a Bench Dog compatible base plate with a tough knurled back fence.
  • The S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs.
    Cutting Capacities
    Mild Steel Plate (Max Thickness): 1/2 In.
    Stainless Steel Plate (Max Thickness): 13/64 In.
    Square Tube at 90° (Mild Steel): 4-3/4 x 4-3/4 In.
    Square Tube at 45° ML: 4 x 4 In.
    Square Tube at 45° MR: 1-3/4 x 1-3/4 In.
    Rectangle Tube at 90° 6-1/2 x 4 In.
    Rectangle Tube at 45° 4-1/2 x 1-3/4 In.
    Round Tube at 90°  Ø 4-3/4 In.
    Round Tube at 45° (Mild Steel): Ø 4 In.
    Minimum Cut Off Piece Length: 5/16 In.

    Specifications

    Machine

    Motor: (120V 60Hz):15A
    Speed No Load: 1450 rpm
    Max. Miter (Left and Right):
    		 +/- 46°
    Cable Length: 10 ft



    Blade

    Blade Dia.: 14 In.
    No. of Teeth: 66
    Bore: 1 In.
    Kerf: .094 In.



    Dimensions

    Packaging Dimensions: 18 x 30 x 23 In.
    Product Dimensions (assembled): 28.25"L x 26"W x 27.5"H
    Product Weight: 77 lbs
    Packaged Weight: 88 lbs


    Items Included

    Instruction Manual
    66 Tooth Mild Steel TCT Blade
    Double Ended 5mm/8mm Hex Key
    Cutting Head Assembly
    Base Table Assembly
    Rear Stabilizing Leg
    Quick Release Top Clamp
    Rail Bracket & Fixings
    V-Blocks x3
    Quick Release Front Clamps x 2


    Documents

    3-Year Guarantee

    3-Year Guarantee

    Evolution Power Tools 3 Year Warranty
    Please keep your proof of purchase / delivery.
    • The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
    • You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
    • All work will be carried out by Evolution.
    • Any parts which are replaced will become the property of Evolution.
    • The repair or replacement of your machine under guarantee will not extend the period of guarantee.
    • The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
    • The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
    • Overseas users should contact the official importer for that country.
    Evolution does not warrant the repair or replacement of a product when the following has occurred;
    • Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
    • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
    • Lack of servicing.
    • Use of parts not assembled or installed in accordance with the instructions of Evolution.
    • Use of parts and accessories which are not Evolution Genuine Components.
    • Faulty installation (except installation by Evolution).
    • Repairs or alterations carried out by parties other than Evolution.

    Compare Models:

     Placeholder

    Product reviews

    Price

    Blade Size

    Blade Type

    Product Weight

    Max. Miter Angle

    Cable Length

    Speed No Load

    S355MCS

    View Product

    $800.00

    14 In.

    14BLADEST

    70.5 lbs

    +/- 46°

    10 ft

    1450 RPM

    S14MCS

    View Product

    $1,000.00

    $1,100.00

    14 In.

    EVOMAX14ST

    72.5 lbs

    +/- 46°

    10 ft

    1100 RPM

    Questions & Answers


    More about the S355MCS

    In a League of its own
    Innovative dual sliding front clamps with quick-release clasps offer quick and versatile clamping to securely hold all shapes & sizes.

    Chop Saw Safety
    Clamp your materials closer to the blade and have full confidence that they will remain in place. This will also lead to longer blade life and the highest-quality cuts.

    Quick-Release Top Clamp
    Top clamp positioned to the right/left of the blade that secures the workpiece after cutting it. 3x V-Block adapters included.

    Height Adjustment Clamp Rail
    Height adjustable bar gives forwards, backwards, up, down, left & right movement. Features quick release ACME threads.

    46°-46° Mitering Base
    Stainless Miter Gauge with positive stops at 0°, 15°, 22.5°, 30°, & 45°
