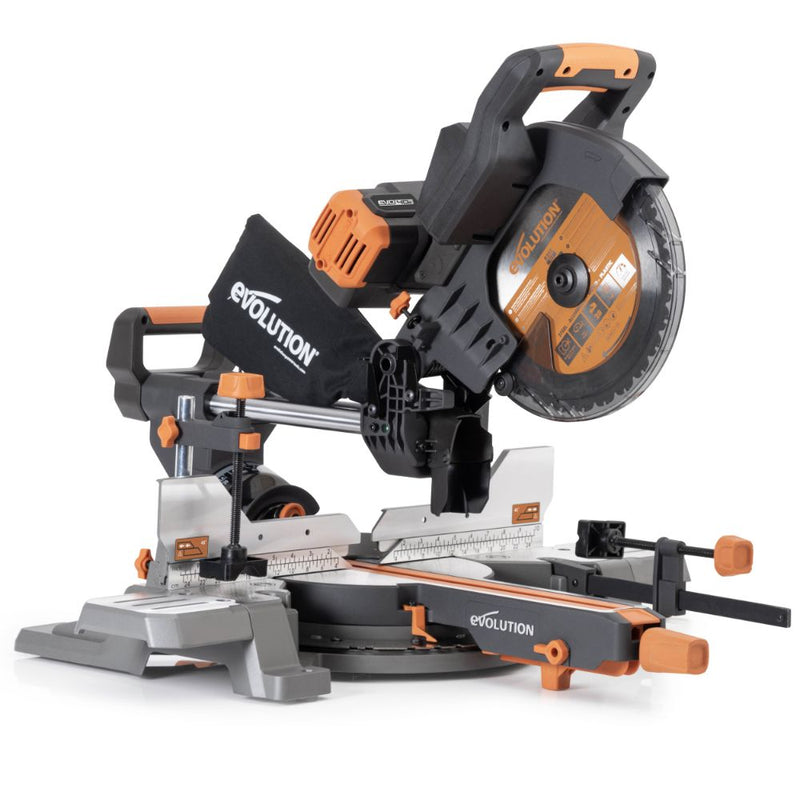

Evolution Cordless R255SMS-DB-Li: Dual Bevel Sliding Miter Saw With 10 in. Multi-Material Blade

Bare Tool:

$375.00

Earn 376 EVO Points with purchase.

Evolution Cordless R255SMS-DB-Li: Dual Bevel Sliding Miter Saw With 10 in. Multi-Material Blade

SKU: 100-0004

EAN/UPC: 849713042828

New Product

Specifications

Blade Size 10 In.
Power Cordless

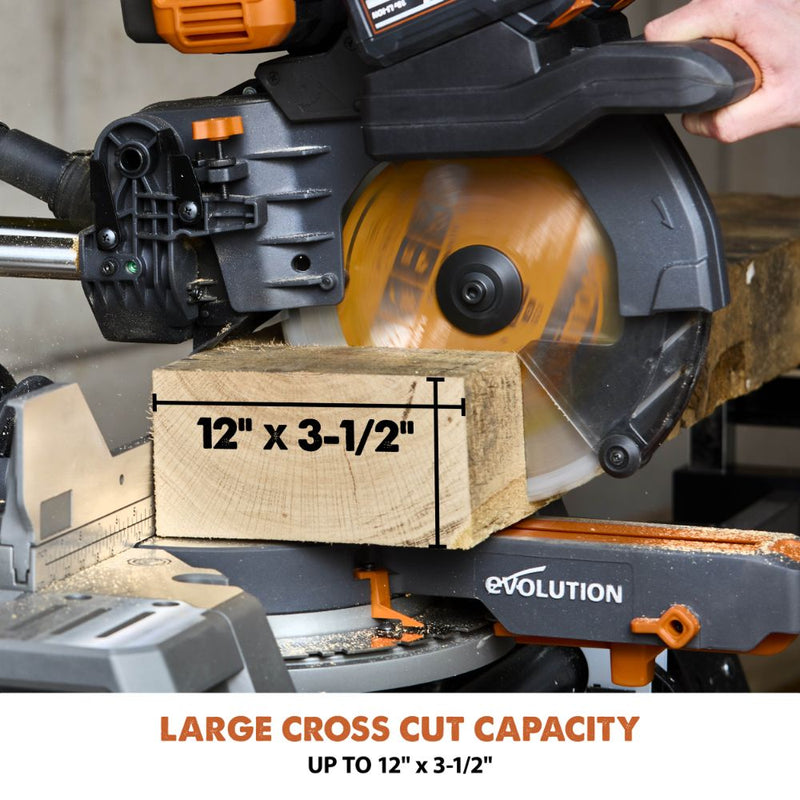

Max. Cross Cut 12" x 3-1/2" ( 305 x 90mm)
Learn More

45-Day Satisfaction Guarantee

Download Instruction Manual
Download Assembly Guide
Download Parts Diagram
$375.00
Pay-In-4 : $93.75 per month

If you are tax-exempt, please contact customer service for further assistance. Call (833) 685-8472

Frequently Bought Together

Hear From Our Customers!

Description



R255SMS-DB-Li Dual Bevel, Double Battery, Cordless, 40 Volt Brushless Miter Saw from Evolution with Multi-Material cutting technology.

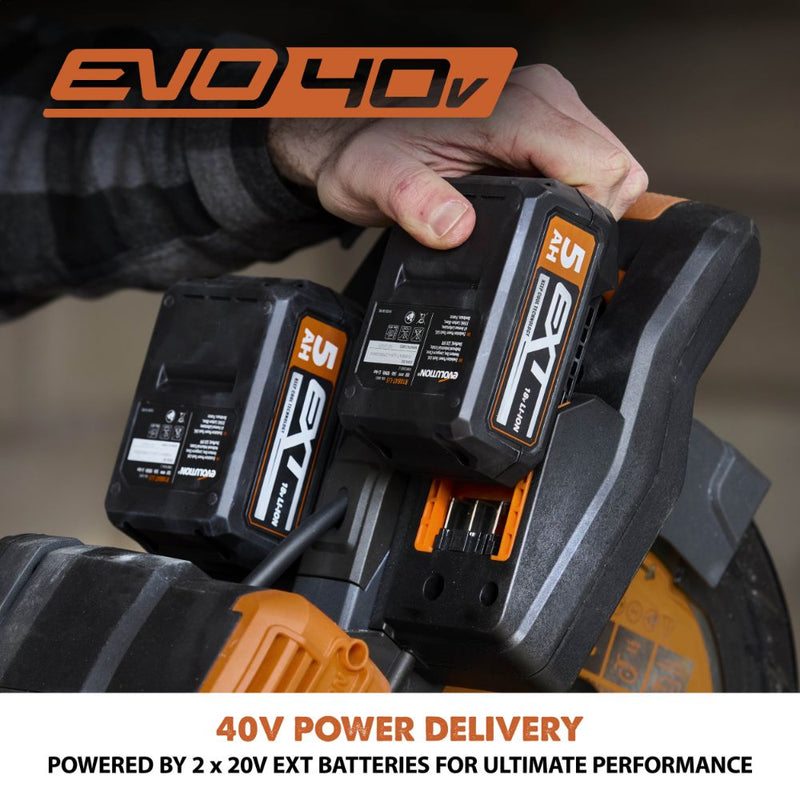

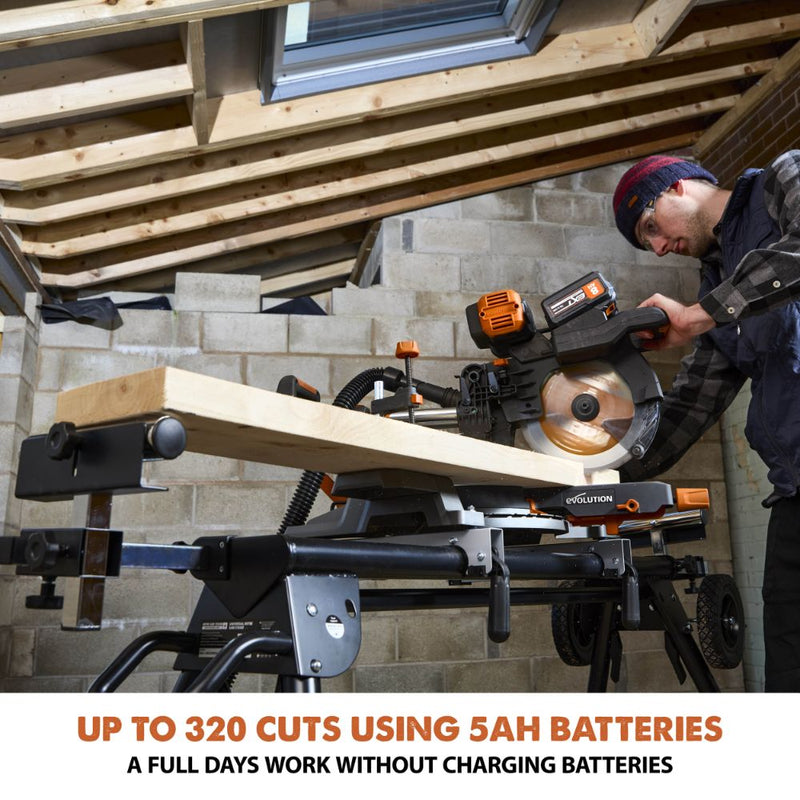

Ready for both the job site and DIY use, this powerful saw delivers accurate dual bevel cutting with +/- 48-degree bevel and +/-50-degree miter capability. Powerful hi-torque Brushless DC motor with optimized gearbox & blade system. Compact, lightweight & robust design, weighing only 36.6 lbs. Powered by two 20v EXT batteries the R255SMS-DB-Li Cordless Dual Bevel Miter Saw provides long run times from a single charge and has the power to get the job done. Add it to one of our Universal Miter Saw Stands, and you have a seriously capable jobsite Miter Saw.

Features

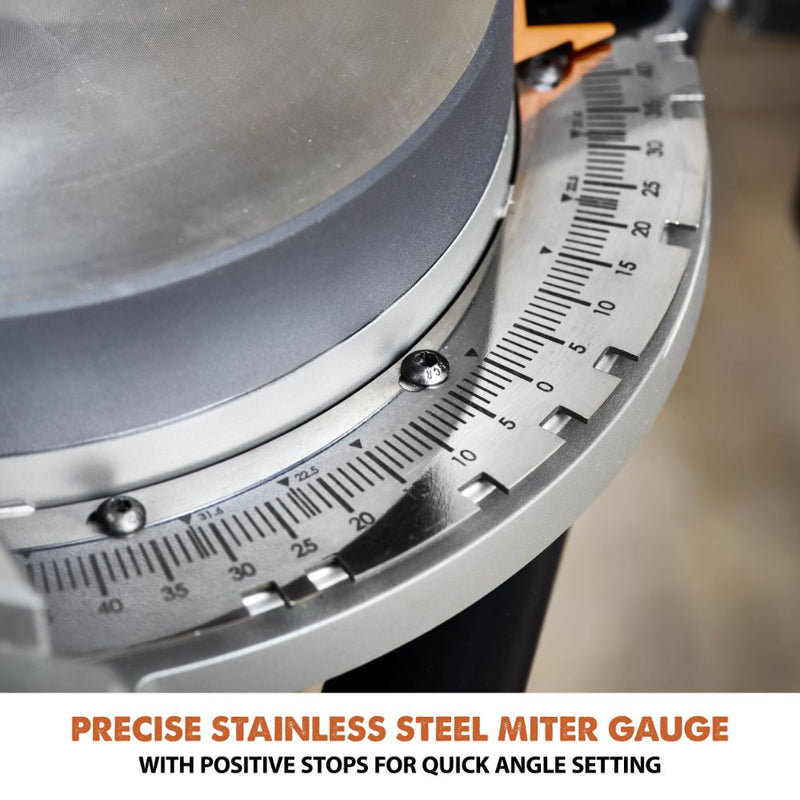

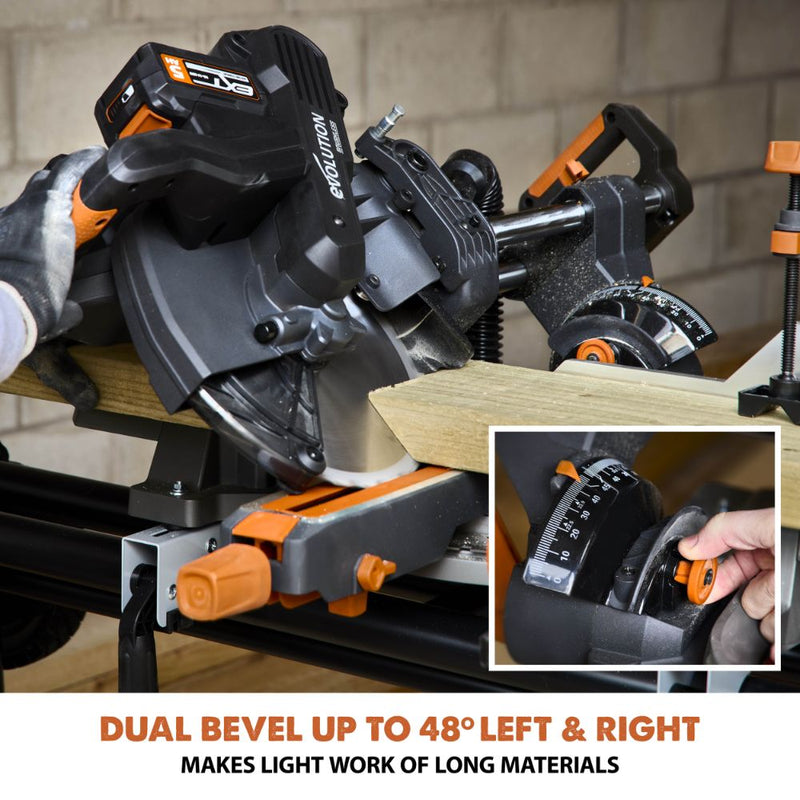

  • Dual Bevel capable +/- 48° (L & R) bevel tilt and +/-50˚ miter angles.

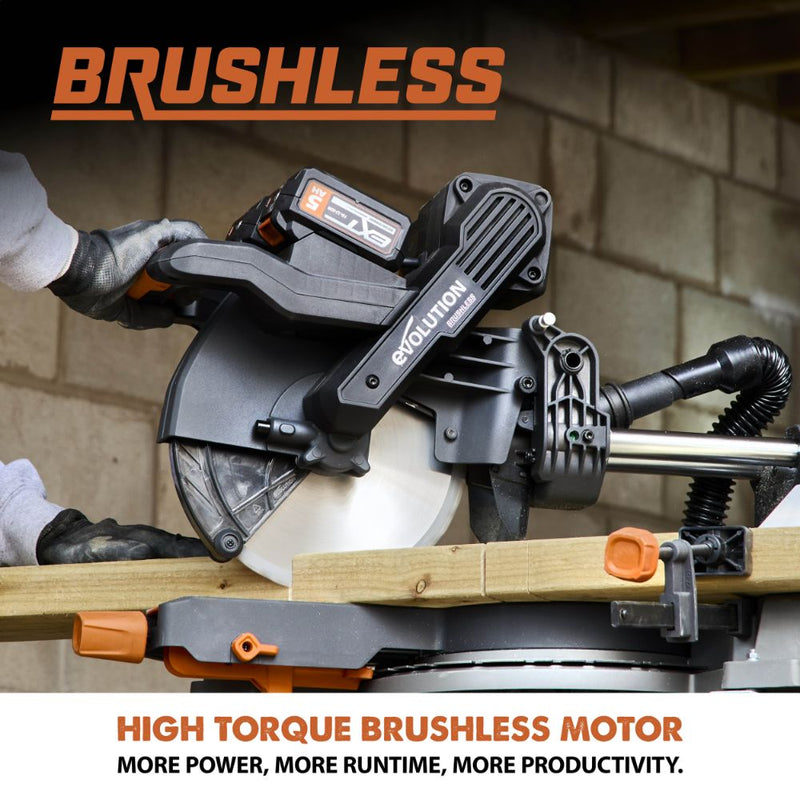

  • High Power 40v Brushless DC motor.

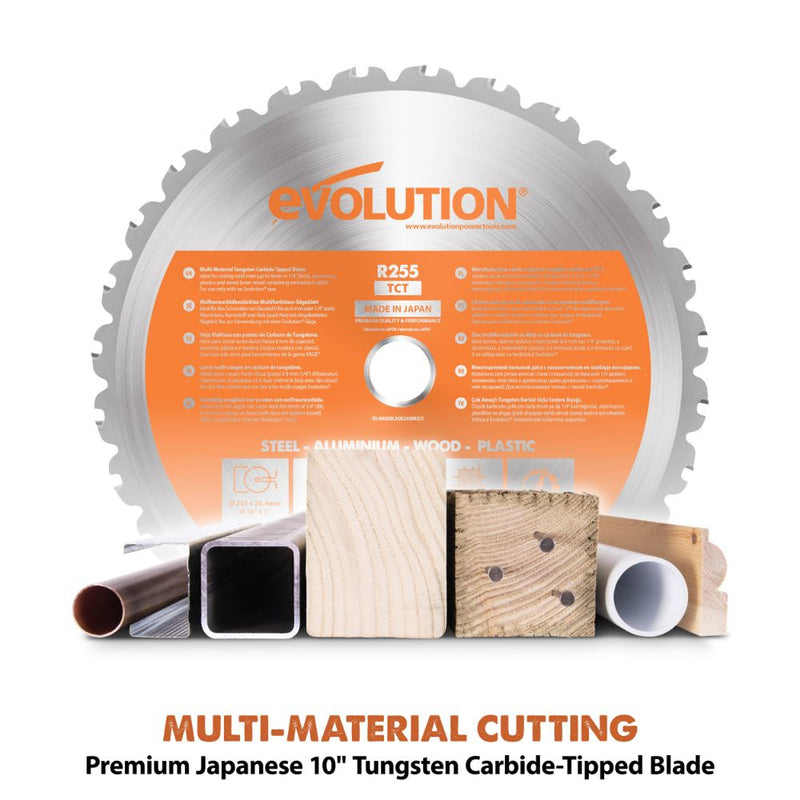

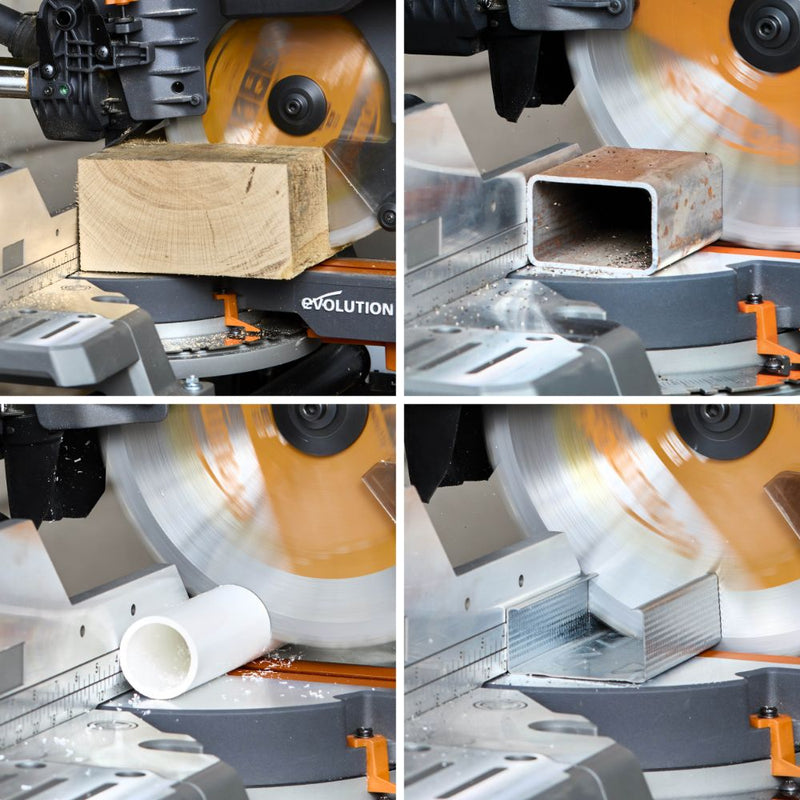

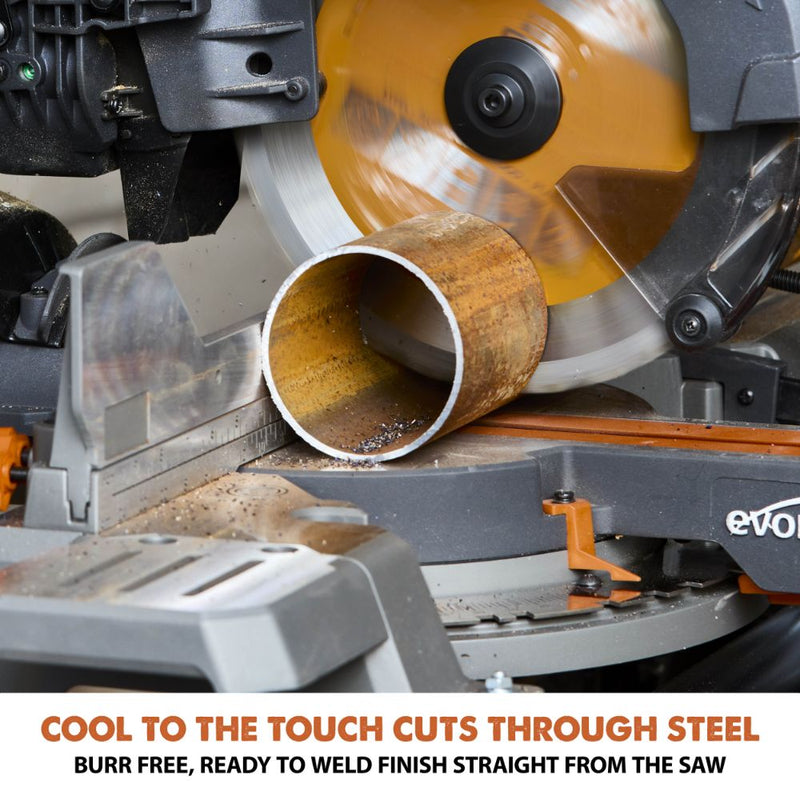

  • Multi-Material: premium Japanese 28T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites, and more.
  • Depth Stop feature enables accurate trench cuts.
  • Backstop feature for maximum depth cuts.
  • Cast alloy base & side extensions, trade tough build.
  • Ergonomic ambidextrous handles for easy control.
  • Improved front and top clamps with self-leveling design.
  • Soft Start & quick-stop Electronic Blade Brake For Safety.

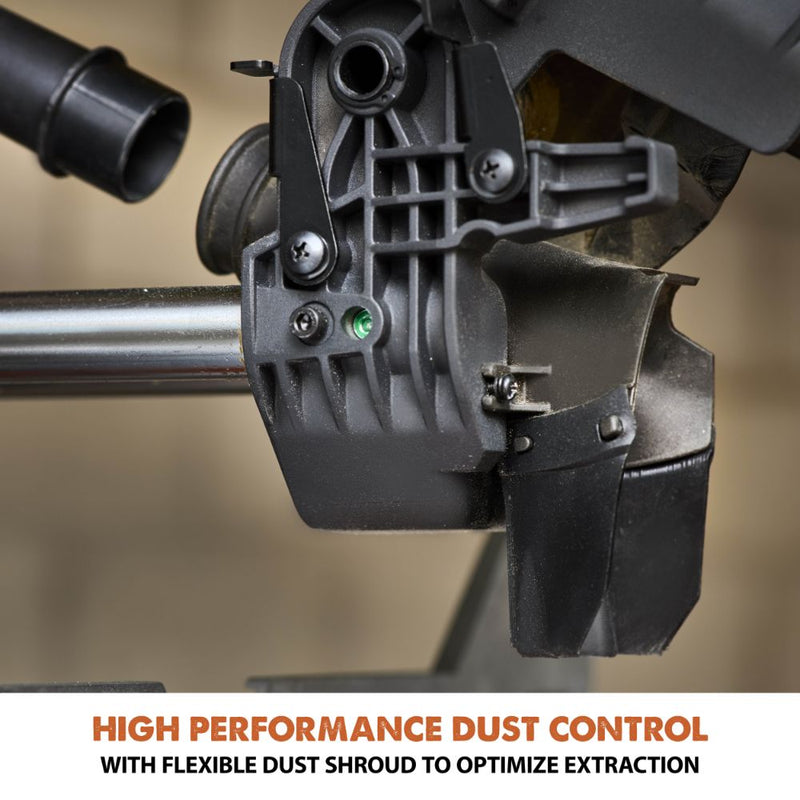

  • Vacuum compatible up to 97% dust extraction, R11VAC-LI, and R15VAC.
  • 3-Year limited warranty* on the tool
  • EXT Li-ion cordless performance and versatility.
  • 2-year warranty on Battery. All purchased EXT batteries are eligible for the 'Battery Lifetime Exchange' Program (Registration Requited).
Machine Specifications
Name R255SMS-DB-LI
Product Code 100-0001
Voltage / (Hz) 40v
Power 850W
No Load Speed (min-1 rpm) 3,000rpm
Blade Size 10"
Blade Bore 1"
Net Weight 41 lbs
Dust port Adaptor Size 1-1/4"
Tool Dimensions 39-1/4" x 30-3/8" x 17-3/4"
Cutting Capacity
Mild steel Plate - Max Thickness 1/4"
Mild Steel Tube Max Wall Thickness 1/8"
0º Miter x 0º Bevel 12" x 3-1/2" ( 305 x 90mm)
45º Miter x 0º Bevel 3-1/2" x 8-1/2" ( 215mm x 90mm)
0º Miter x 45º Bevel (left) 12" x 2-1/16" ( 305mm x 52mm )
0º Miter x 45º Bevel (right) 12" x 2-1/16" (300mm x 33mm)
45º Miter x 45º Bevel (left) 2-1/16" x 8-1/2"
45º Miter x 45º Bevel (right) 1-5/16" x 8-1/2"
Miter Range 50°- 50°
Bevel Range +/- 48° L&R
Blade Diameter 10"
Bore Diameter 1"
No of Teeth 28T
Kerf 0.08"
Sound pressure level Lpa 93.7dB(A)
Sound power level Lwa 100.5dB(A)
Uncertainty 3dB (A)
Items Supplied
Bare Loaded
Miter Saw x x
Instruction Manual x x
Multi-Material 28T TCT Blade x x
Top & Front Clamps x x

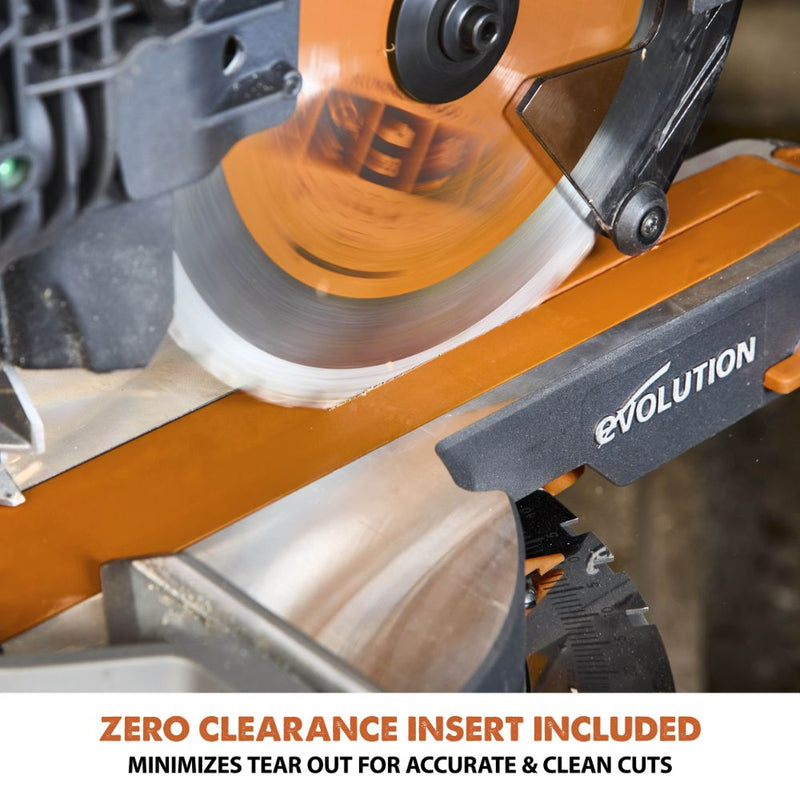

Zero Clearance Insert x x
Machine Table Extension = 4x socket headed screws x x
Double Ended Hex Key M6 x M4 x x
Rotary Table & neck x x
Cutting Head x
 x
Carriage Slides x x
Multi-locking Knob x x
Dust Port Adaptor x x
Dust Bag x x

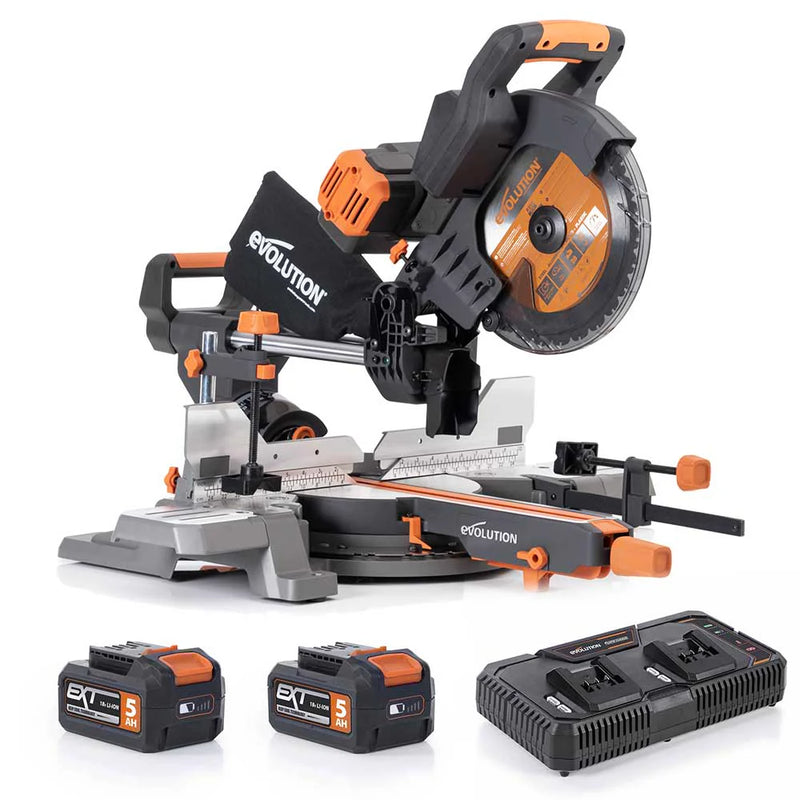

2x 5Ah Battery x
Single Port Fast Charger
Dual Port Fast Charger x
