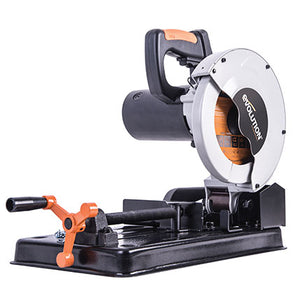

FeaturesThe Evolution RAGE4 is a 185mm chop saw designed exclusively for Electricians and Plumbers. Producing fast, ultra-clean cuts through armored cable, Unistrut and cable tray, as well as conduit, chrome, copper & plastic pipe, plus plastic hose. Easier to use than a hacksaw, far more portable than a 14" (355mm) chop saw.
|Motor (120V 60Hz):||10A|
|Speed No Load:||4200rpm|
|Blade Dia.:||7-1/4 in.|
|No. of Teeth:||20|
|Max. Cross Cut (0° x 0°):||1-3/4 in. x 3-3/4 in.|
|Max. Miter Cut (45° x 0°):||1-5/8 in. x 1-5/8 in.|
|Max Round Tube (0° x 0°):||2 in.|
|Mild Steel Plate
|Mild Steel Box Section
(Max. Wall Thickness):
|Instruction Manual||20T Multi-Material TCT Blade|
|15/65 in. Hex Key (Vice Adjustment)||13/64 in. Hex Key (Blade Change)|
|1/8 in. Hex Key (Upper Blade Guard)||Rubber Vice Jaw Protector|
|Dust Extraction Port||Spare Motor Brushes|
|Dimensions & Weights|
|Product Dimensions:||10 x 15 x 10.5 In.|
|Packaging Dimensions:||20-5/64 x 12-19/32 x 12-13/64 in.|
|Product Weight:||20.1 lbs|
|Packaged Weight:||22.4 lbs|
|Wood||Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.|
|Ferrous Metal||Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut.|
|Non-Ferrous Metal||Aluminum, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.|
|Plastic||Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.|
|Not Recommended||Hardened high carbon, coated and stainless steel.
Note: Cutting galvanised steel may reduce blade life.
