Evolution EVOMAG28 Magnetic Drill Spare Parts

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 386-8665, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution EVOMAG28 Magnetic Drill Spare Parts

Evolution EVOMAG28 Magnetic Drill Spare Parts

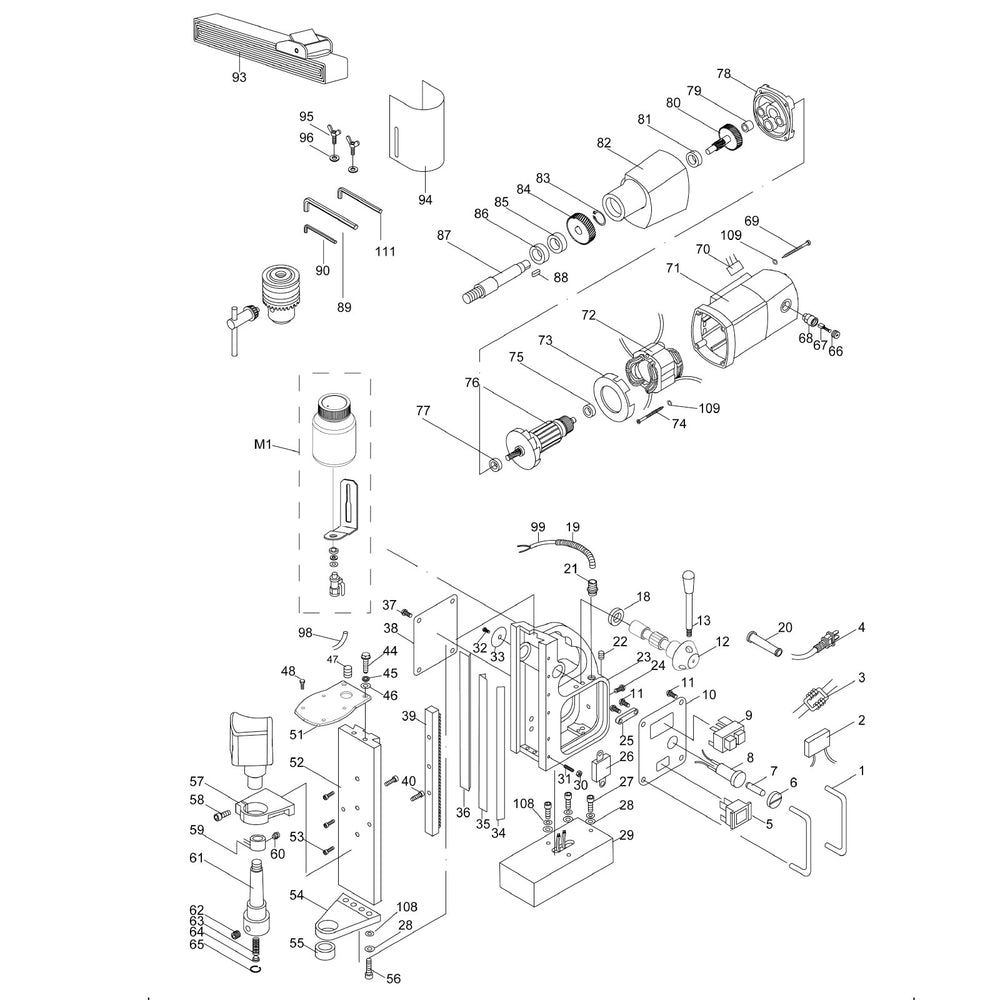

Parts List:

M1 - Lubricant bottle assembly (# 095-0031)

$11.99

Out of Stock

1 - Switch Plate Bar (# 090-0102)

$2.99

Out of Stock

2 - Capacitor (# 090-0103)

$2.99

Out of Stock

3 - Inductor (# 090-0104)

$2.99

Out of Stock

4 - Power Cord (# 090-0105)

$2.99

Out of Stock

5 - Electro Magnet Switch (# 090-0109)

$2.99

Out of Stock

6 - Fuse Holder Cap (# 090-0110)

$2.99

Out of Stock

7 - Fuse 20 amp (# 090-0112)

$2.99

Out of Stock

8 - Fuse Holder (# 090-0114)

$2.99

Out of Stock

9 - Main Motor Switch (relayed) (# 090-0116)

$2.99

Out of Stock

10 - Switch Plate (# 090-0100)

$2.99

Out of Stock

11 - M4 x 12 Screw (# F-SPHPZ-M4-12-ST-BO)

$1.25

Only 15 left

12 - Crank (# 090-0118)

$2.99

Out of Stock

13 - Crank Handle (# 090-0119)

$2.99

Out of Stock

18 - 2015 bearing Bush (# 090-0120)

$2.99

Out of Stock

19 - Cord Sheath (# 090-0121)

$2.99

Out of Stock

20 - Cable Protector (# 090-0122)

$2.99

Out of Stock

21 - Conduit Gland (# 090-0123)

$2.99

Out of Stock

22 - Cable Gland (# 090-0124)

$2.99

Out of Stock

23 - Main Body Assembly (# 090-0125)

$2.99

Out of Stock

24 - M5 x 10 Screw (# F-SPHPZ-M5-10-ST-BO)

$1.25

In Stock

25 - Cable Clamp (# 090-0126)

$2.99

Out of Stock

26 - Main Rectifier (# 090-0127)

$2.99

Out of Stock

27 - M6 x 20 Cap Screw (# F-SHCS-M6-20-ST-BO)

$1.25

In Stock

28 - 6mm Washer (# F-W-M6-ST-BO)

$1.25

In Stock

29 - Electro Magnet (# 090-0128)

$2.99

Out of Stock

30 - M5 Nut (# F-NSH-M5-ST-BO)

$2.99

Out of Stock

31 - M5 x 20 Grubb Screw (# F-SSCFP-M5-20-ST-BO)

$2.99

Out of Stock

32 - M6x8 Cap Screw (# F-SPHPZ-M6-8-ST-BO)

$2.99

Out of Stock

33 - Crank Axle Washer (# 090-0133)

$2.99

Out of Stock

34 - Gib Strip Tensioner (# 090-0134)

$2.99

Out of Stock

35 - Gib Strip (Pr) (# 090-0135)

$2.99

Out of Stock

36 - Gib Strip (# 090-0135)

$2.99

Out of Stock

37 - M5 x 10 Screw (# F-SPHPZ-M5-10-ST-BO)

$1.25

In Stock

38 - Spec plate (# 090-0101)

$2.99

Out of Stock

39 - Rack (# 090-0137)

$2.99

Out of Stock

40 - M6 x 20 Cap Screw (# F-SHCS-M6-20-ST-BO)

$1.25

In Stock

44 - M6 x 12 Flange Hex Bolt (# F-HFB-M6-12-ST-BO)

$2.99

Out of Stock

45 - 6mm Spring Washer (# F-SWA-M6-ST-BO)

$14.99

In Stock

46 - 6mm Washer (# F-W-M6-ST-BO)

$1.25

In Stock

47 - Conduit Gland (# 090-0141)

$2.99

Out of Stock

48 - 3.5mm Self Tap Screw (# F-TFPX-6-15-ST-BO)

$2.99

Out of Stock

51 - Motor Support Plate (# 090-0142)

$2.99

Out of Stock

52 - Slide Plate (# 090-0143)

$2.99

Out of Stock

53 - M6 x 12 Cap Screw (# F-SHCS-M6-12-ST-BO)

$1.25

In Stock

54 - Arbor Support Bracket (# 090-0144)

$2.99

Out of Stock

55 - 2520 Bearing (# 090-0145)

$2.99

Out of Stock

56 - M6 x 16 Cap Screw (# F-SHCS-M6-16-ST-BO)

$2.99

In Stock

57 - Motor Mounting Bracket (# 090-0146)

$2.99

Out of Stock

58 - M6 x 30 Cap Screw (# F-SHCS-M6-30-ST-BO)

$2.99

In Stock

59 - Coolant Inlet Body (# 090-0147)

$2.99

Out of Stock

60 - 1/4 Quick Coupler (# 090-0148)

$2.99

Out of Stock

61 - Arbor Shaft (# 090-0149)

$2.99

Out of Stock

62 - M10 x 10 Grubb Screw (# F-SSCFP-M10-10-ST-BO)

$2.99

In Stock

63 - Spring (# 090-0150)

$2.99

Out of Stock

64 - Coolant Seal (# 090-0151)

$2.99

Out of Stock

65 - Circlip (# F-CCINT-21-089-ST-BO)

$2.99

Out of Stock

66 - Brush Cap (# 090-0152)

$2.99

Out of Stock

67 - Carbon Brush (# 090-0153)

$2.99

Out of Stock

68 - Brush Holder (# 090-0154)

$2.99

Out of Stock

69 - M5 x 40 Screw (# F-SPHPZ-M5-40-ST-BO)

$2.99

In Stock

70 - Capacitor (# 090-0155)

$2.99

Out of Stock

71 - Motor Housing (# 090-0156)

$2.99

Out of Stock

72 - Field Assy (# 090-0157)

$2.99

Out of Stock

73 - Fan Shroud (# 090-0161)

$2.99

Out of Stock

74 - 4.8 x 65 Screw (# F-TFPX-10-65-ST-SC)

$2.99

Out of Stock

75 - 608 Bearing (# F-B-608-2Z)

$2.50

In Stock

76 - Armature (# 090-0182)

$2.99

Out of Stock

77 - 609 Bearing (# F-B-609-2Z)

$10.99

Out of Stock

78 - Inter Gear Plate (# 090-0186)

$2.99

Out of Stock

79 - 627 Bearing (# F-B-627-2Z)

$6.99

Out of Stock

80 - Gear Pinion (# 090-0162)

$2.99

Out of Stock

81 - 627 Bearing (# F-B-627-2Z)

$6.99

Out of Stock

82 - Gear Box Housing (# 090-0163)

$2.99

Out of Stock

83 - Circlip (# F-CCEXT-16-100-ST-PO)

$2.99

In Stock

84 - Final Drive Gear (# 090-0187)

$2.99

Out of Stock

85 - 6003 Bearing (# F-B-6003-2Z)

$3.99

In Stock

86 - 6004 Bearing (# F-B-6004-2Z)

$2.99

Out of Stock

87 - Main Drive Spindle (# 090-0164)

$2.99

Out of Stock

88 - 4 x 15 Woodruff Key (# 090-0165)

$2.99

Out of Stock

89 - 5mm Allen Key (# F-HEXKEY-M5-ST-BO)

$4.99

Out of Stock

90 - 4mm Allen Key (# F-HEXKEY-M4-ST-BO)

$14.99

Out of Stock

93 - Safety Belt (# 090-0170)

$2.99

Out of Stock

94 - Guard (# 090-0171)

$2.99

Out of Stock

95 - Wing Screw (# 090-0172)

$2.99

Out of Stock

96 - 6mm Washers (# F-W-M6-ST-BO)

$1.25

In Stock

98 - Coolant pipe (# 090-0173)

$2.99

Out of Stock

99 - Motor Cable (# 090-0181)

$2.99

Out of Stock

100 - Label set 110v (# 090-0174)

$2.99

Out of Stock

101 - Label set 230v (# 090-0175)

$2.99

Out of Stock

108 - Blow Moulded Case (# 090-0189)

$2.99

Out of Stock

109 - 6mm Spring Washer (# F-SWA-M6-ST-BO)

$14.99

In Stock

110 - 5mm Spring Washer (# F-SWA-M5-ST-BO)

$2.99

In Stock

111 - 2.5mm Allen Key (# F-HEXKEY-M2.5-ST-BO)

$2.99

In Stock

Cant find what you are looking for? Contact Us Give us a call on: +1 (866) 386-8665
