  • Evolution EVOMAG42 Spare Parts (Section 2)

Evolution EVOMAG42 Magnetic Drill Spare Parts (Head)

Latest Model

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 EVO-TOOL, toll free. They will find the part and create the order for you, with FREE delivery.

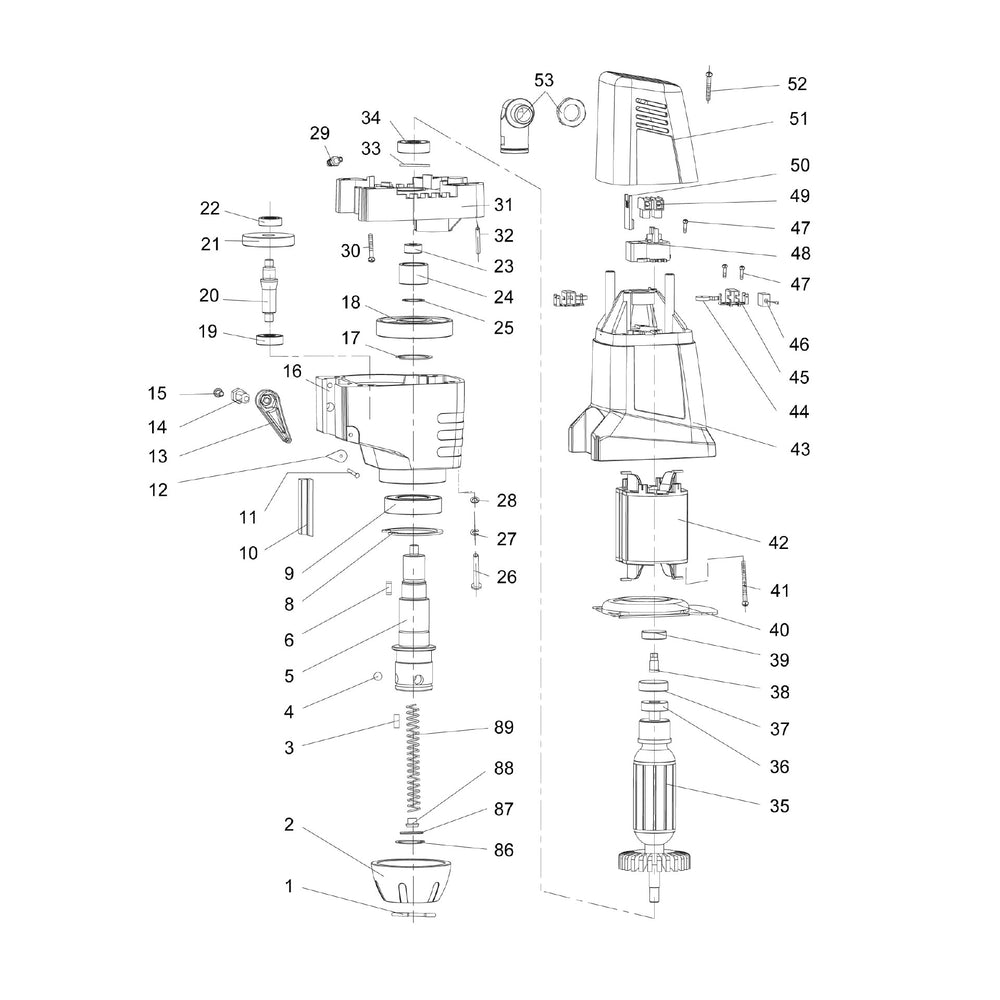

Evolution EVOMAG42 Spare Parts (Section 2)
Evolution EVOMAG42 Magnetic Drill Spare Parts (Head)

Parts List:

Please enter a search term before proceeding.
1 - Circlip 30mm x1 (# F-CCEXT-30-119-ST-PO)
$15.99

Out of Stock

2 - Clamping Sleeve x1 (# EV42S2)
$15.99

Only 13 left

3 - Pin 3x12mm x1 (# EV42S3)
$2.99

Only 10 left

4 - Screw M8x8 x1 (# F-SSCCP-M8-8-ST-BO)
$15.99

Out of Stock

5 - Main Drive Shaft x1 (# EV42S5)
$59.99

Only 11 left

6 - Flat Key x1 (# EV42S6)
$2.99

Only 5 left

8 - Circlip 47mm x1 (# F-CCINT-47-125-ST-PO)
$15.99

Out of Stock

9 - Bearing 6005 x1 (# EV42S9)
$9.99

Only 8 left

10 - Clamping Piece x1 (# EV42S10)
$12.99

In Stock

11 - Finger x1 (# EV42S11)
$2.99

In Stock

12 - Rivet x1 (# EV42S12)
$2.99

In Stock

13 - Clamping Lever x1 (# EV42S13)
$7.99

In Stock

14 - Special Lock Screw (Lh) x1 (# EV42S14)
$2.99

Only 17 left

15 - Screw M4x10 x1 (# F-SPHPZ-M4-10-ST-BO)
$15.99

In Stock

16 - Gear Box Housing x1 (# EV42S16)
$59.99

Only 12 left

17 - Circlip 25mm x1 (# F-CCEXT-25-118-ST-BO)
$15.99

Out of Stock

18 - Final Drive Gear x1 (# EV42S18)
$48.99

Only 20 left

19 - Bearing 627Zz x1 (# EV42S19)
$6.99

Only 16 left

20 - Primary Drive Shaft x1 (# EV42S20)
$44.99

Only 8 left

21 - Primary Gear x1 (# EV42S21)
$32.99

Only 16 left

22 - Bearing 607Zz x1 (# EV42S22)
$6.99

Only 19 left

23 - Seal x1 (# EV42S23)
$9.99

Only 15 left

24 - Spindle Bush x1 (# EV42S24)
$13.99

Only 16 left

25 - Circlip 20mm x1 (# F-CCEXT-20-105-ST-BO)
$15.99

Out of Stock

26 - Screw M5x25 x1 (# F-SPHPZ-M5-60-ST-BO)
$15.99

Out of Stock

27 - Spring washer 5mm x1 (# F-SWA-M5-ST-BO)
$15.99

In Stock

28 - Flat Washer x1 (# EV42S28)
$2.99

In Stock

29 - Coolant Nozzle x1 (# EV42S29)
$8.99

Out of Stock

30 - Tapping Screw ST4.2x25 x1 (# F-TFPX-8-25-ST-SC)
$15.99

Out of Stock

31 - Gear Box Cover x1 (# EV42S31)
$29.99

Only 15 left

32 - Pin 4x16 x3 (# EV42S32)
$4.99

Only 6 left

33 - O Ring 26 X 2 x1 (# EV42S33)
$2.99

Only 8 left

34 - Bearing 6000Rs x1 (# EV42S34)
$6.99

Only 14 left

35 - Armature x1 (# EV42S35)
$85.99

Only 15 left

36 - Bearing 607Zz x1 (# EV42S36)
$6.99

In Stock

37 - Bearing Sleeve x1 (# EV42S37)
$6.99

Only 14 left

38 - Insulator Ring x1 (# EV42S38)
$6.99

In Stock

39 - Ring Magnet x1 (# EV42S39)
$8.99

Only 20 left

40 - Air Deflector x1 (# EV42S40)
$6.99

Only 5 left

41 - Tapping screw ST4.2x70 x1 (# 095-0213)
$2.99

In Stock

42 - Field Assy x1 (# EV42S42)
$68.99

Only 18 left

43 - Motor Housing x1 (# EV42S43)
$24.99

Only 5 left

44 - Spring x1 (# EV42S44)
$4.99

In Stock

45 - Brush Holder x1 (# EV42S45)
$6.99

In Stock

46 - Carbon Brush x1 (# 095-0135)
$15.99

Out of Stock

47 - Tapping Screw St2.9*9.5 x1 (# EV42S47)
$2.99

In Stock

48 - Sensor Base x1 (# EV42S48)
$8.99

Only 11 left

49 - Cable Connector x1 (# EV42S49)
$2.99

Only 20 left

50 - Sensor x1 (# EV42S50)
$14.99

In Stock

51 - Back Cover x1 (# EV42S51)
$17.99

Only 10 left

52 - Tapping Screw St4.2x16 x1 (# EV42S52)
$2.99

In Stock

53 - Cable Connector x1 (# 095-0140)
$18.99

Out of Stock

86 - Circlip x1 (# F-CCINT-20-110-ST-BO)
$15.99

Out of Stock

87 - Washer x1 (# F-W-M8-ST-BO)
$53.99

In Stock

88 - Coolant Seal x1 (# EV42S88)
$2.99

Only 19 left

89 - Spring x1 (# EV42S89)
$2.99

In Stock
