Evolution R185CCL Circular Saw Spare Parts

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 386-8665, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution R185CCL Circular Saw Spare Parts

Evolution R185CCL Circular Saw Spare Parts

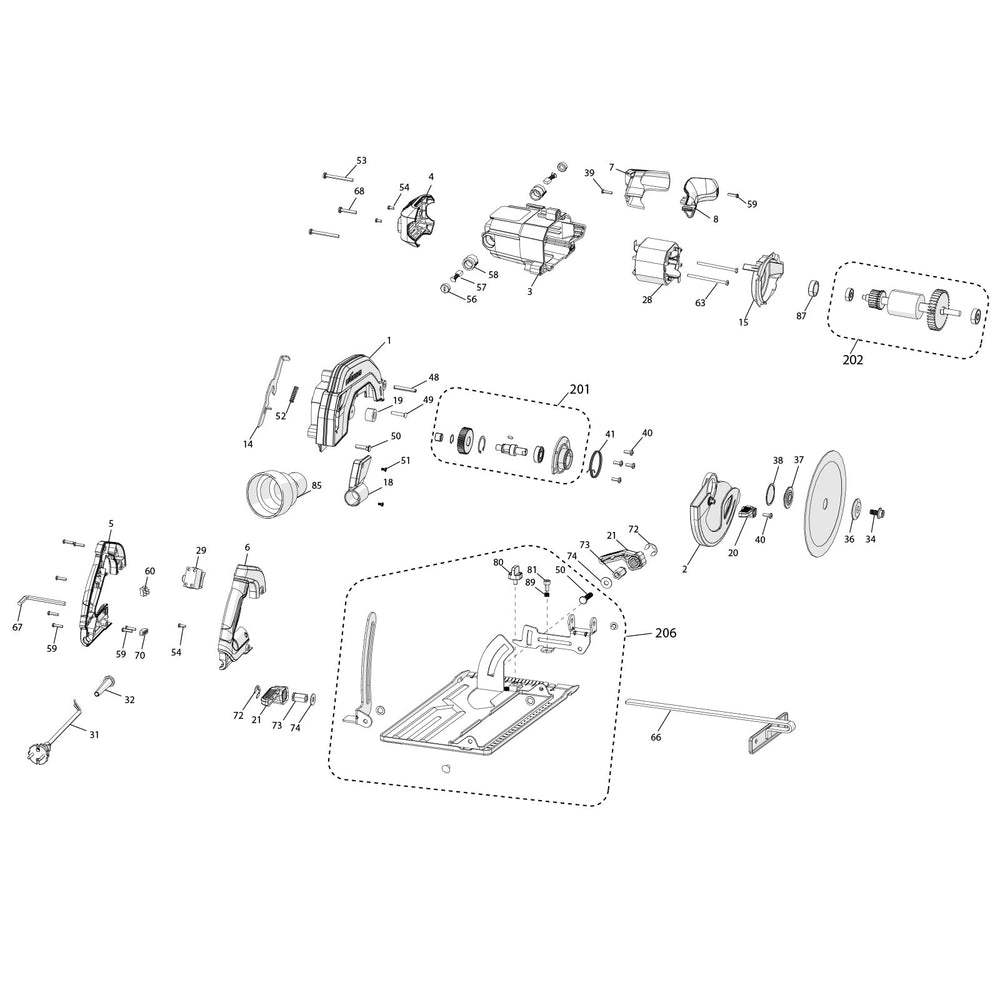

Parts List:

1 - Blade housing 185 (# 027-0101)

$12.99

Only 15 left

2 - Blade Guard 185 (# 027-0102)

$5.99

In Stock

3 - Motor Housing Small (# 026-0103)

$6.00

Only 5 left

4 - End Cap (Orange) (# 027-0104)

$2.99

In Stock

5 - Main handle- LHS Blank (Orange) (# 027-0128)

$5.99

In Stock

6 - Main handle- RHS (Orange) (# 027-0106)

$2.99

In Stock

7 - Front Handle - LHS (# 026-0107)

$2.99

Only 4 left

8 - Front Handle - RHS (# 026-0108)

$3.99

In Stock

9 - Evolution Pressed Base 185 (# 027-0224)

$9.60

Out of Stock

12 - Bevel Pivot Plate (185 Pressed) (# 027-0213)

$2.99

Out of Stock

14 - Arbour Lock Plate (# 027-0114)

$2.99

Only 16 left

15 - Fan baffle (# 027-0115)

$2.99

In Stock

17 - Depth Gauge (in) 185 Pressed (# 027-0211)

$2.99

Out of Stock

18 - Dust Port Adaptor (185) (# 027-0118)

$2.99

In Stock

19 - Blade Guard bumper (# 027-0119)

$2.99

In Stock

20 - Blade guard lever (Orange) (# 027-0120)

$2.99

In Stock

21 - Adjustment lever (Orange) (# 027-0121)

$2.99

In Stock

24 - Gearbox Housing (# 027-0124)

$2.99

In Stock

27 - Armature 10A (USA 120V) (# 026-0132)

$24.43

Out of Stock

28 - Stator 10A (USA 120V) (# 026-0136)

$22.99

Out of Stock

29 - Switch Non-Lock off (Orange) (# 027-0125)

$3.99

Only 14 left

31 - Cable USA 120V (16AWG PVC) 3m (# 026-0172)

$9.60

Out of Stock

32 - Cable Strain (Small) (# 027-0149)

$0.96

Out of Stock

34 - Flanged Blade Bolt (# 027-0158)

$2.99

In Stock

36 - Outer Flange (Pressed Steel) (# 027-0153)

$2.99

Out of Stock

37 - Inner Flange (20mm) (# 027-0155)

$2.99

In Stock

37 - Inner Flange (5/8in) (# 027-0156)

$2.99

In Stock

38 - Guard retention clip (# 027-0157)

$2.99

In Stock

39 - Screw ST 5X25 (# F-TFPX-5-25-ST-BO)

$2.99

In Stock

40 - Pan Head Screw M5x12 (# F-SPHPZ-M5-12-ST-BO)

$1.25

In Stock

41 - Guard Spring (# 027-0160)

$2.99

Only 19 left

42 - Bearing 6001 (Huasing) (# F-B-6001-2Z)

$3.99

Only 15 left

43 - Gearbox shaft (# 027-0162)

$2.99

Only 18 left

44 - Woodruf Key (# 027-0163)

$2.99

In Stock

45 - Circlip Internal 25mm (# F-CCINT-25-120-ST-BO)

$2.99

In Stock

46 - Gear (# 027-0165)

$5.99

In Stock

47 - Needle Bearing (# 027-0166)

$2.99

In Stock

48 - Roll pin 6x40mm (# F-SDH-600-40-ST-BO)

$2.99

In Stock

49 - Pan Head Screw M6x18 (# F-SPHPZ-M6-18-ST-BO)

$2.99

In Stock

50 - Coach bolt M6X21 (# F-CB-M6-21-ST-BO)

$2.99

In Stock

51 - Countersunk Screw M4x8 (# F-SCHPZ-M4-8-ST-BO)

$2.99

In Stock

52 - Arbour lock Spring (# 027-0171)

$2.99

In Stock

53 - Pan Head Screw M5x50 (# F-SPHPZ-M5-50-ST-BO)

$1.25

In Stock

54 - Screw ST 4X10 (# F-TFPX-4-10-ST-BO)

$1.25

In Stock

56 - Brush holder cap (# 027-0175)

$2.99

In Stock

57 - Carbon brush (# 027-0176)

$2.99

In Stock

58 - Brush holder (# 027-0178)

$2.99

In Stock

59 - Screw ST 4X16 (# F-TFPX-4-16-ST-BO)

$1.25

In Stock

60 - Terminal Block (4) (# 027-0177)

$2.99

In Stock

63 - Screw ST 4X50 (# F-TFPX-4-50-ST-BO)

$2.99

In Stock

64 - Bearing 608 (Huasing) (# F-B-608-2Z)

$2.50

In Stock

65 - Bearing 6000 (Huasing) (# F-B-6000-2Z)

$3.99

In Stock

66 - Parallel guide (# 027-0185)

$2.99

In Stock

67 - Hex key M6 (6mm) (# F-HEXKEY-M6-ST-BO)

$2.99

In Stock

68 - Pan Head Screw M5x30 (# F-SPHPZ-M5-30-ST-BO)

$2.99

In Stock

69 - Circlip External 16mm (# F-CCEXT-16-100-ST-BO)

$2.99

In Stock

70 - Cable Clamp (# 027-0189)

$2.99

In Stock

72 - E clip 9mm (# F-ECLIP-9-100-ST-BO)

$2.99

In Stock

73 - Lever Hex Block (# 027-0192)

$2.99

In Stock

74 - Washer M6 (# F-W-M6-ST-BO)

$1.25

In Stock

75 - Rivet 6mm (# 027-0212)

$2.99

Out of Stock

80 - Parallel Guide Thumb screw (Orange) (# 027-0199)

$2.99

In Stock

81 - Socket head cap screw M5X10 (# F-SHCS-M5-10-ST-BO)

$2.99

In Stock

85 - Dust Hose Connector USA (# 027-0221)

$2.99

In Stock

87 - Rubber Bearing Sleeve (# 027-0223)

$2.99

In Stock

89 - Spring (# 027-0159)

$2.99

In Stock

97 - Plastic Washer 6mm (# 027-0241)

$2.99

Out of Stock

200 - Armature Assembly (USA 120V) (# 027-0052)

$2.99

Out of Stock

201 - Gearbox Assembly (# 026-0060)

$13.99

Out of Stock

206 - Evolution Pressed Base 185 Assembly (# 027-0070)

$26.99

Out of Stock
