Evolution R185SMS+: Single Bevel Sliding Miter Saw With 7-1/4 in. Multi-Material Cutting Blade

SKU: R185SMS+

Multi-Material Cutting: Includes 7-1/4" TCT blade.
Accurate Cuts: Laser guide, adjustable depth, 9 miter stops.
Flexible Angles: 50° miter, 0°-45° bevel, 8-1/4" x 2-1/4" crosscut.
Portable: Lightweight, carry handles, dust collection, 10ft power cable.

Frequently Bought Together

Compatible with:

Description

Light-weight, compact and portable miter saw with all the accessories you need to get the job done. Equipped with a 7-1/4inch 20 tooth multi-material cutting, this sliding miter saw shines when cutting 6mm thick mild steel. Features a 50 - 50-degree rotary base for miter and compound cutting and an adjustable depth stop with 8-1/4 inch slide makes light work of trench cutting.

Features

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut, and 9 positive miter stops.
Reliable, smooth square cutting every time in a variety of materials.
Powerful 10A hi-torque motor with an optimized gearbox & blade system.
0° - 45° bevel tilt and 50˚ - 50˚ miter covers all common cutting angles accurately and easily.
8-1/4 x 2-1/4 inch max. crosscut capacity.
Ergonomic trigger handle designed for left and right-handed use.

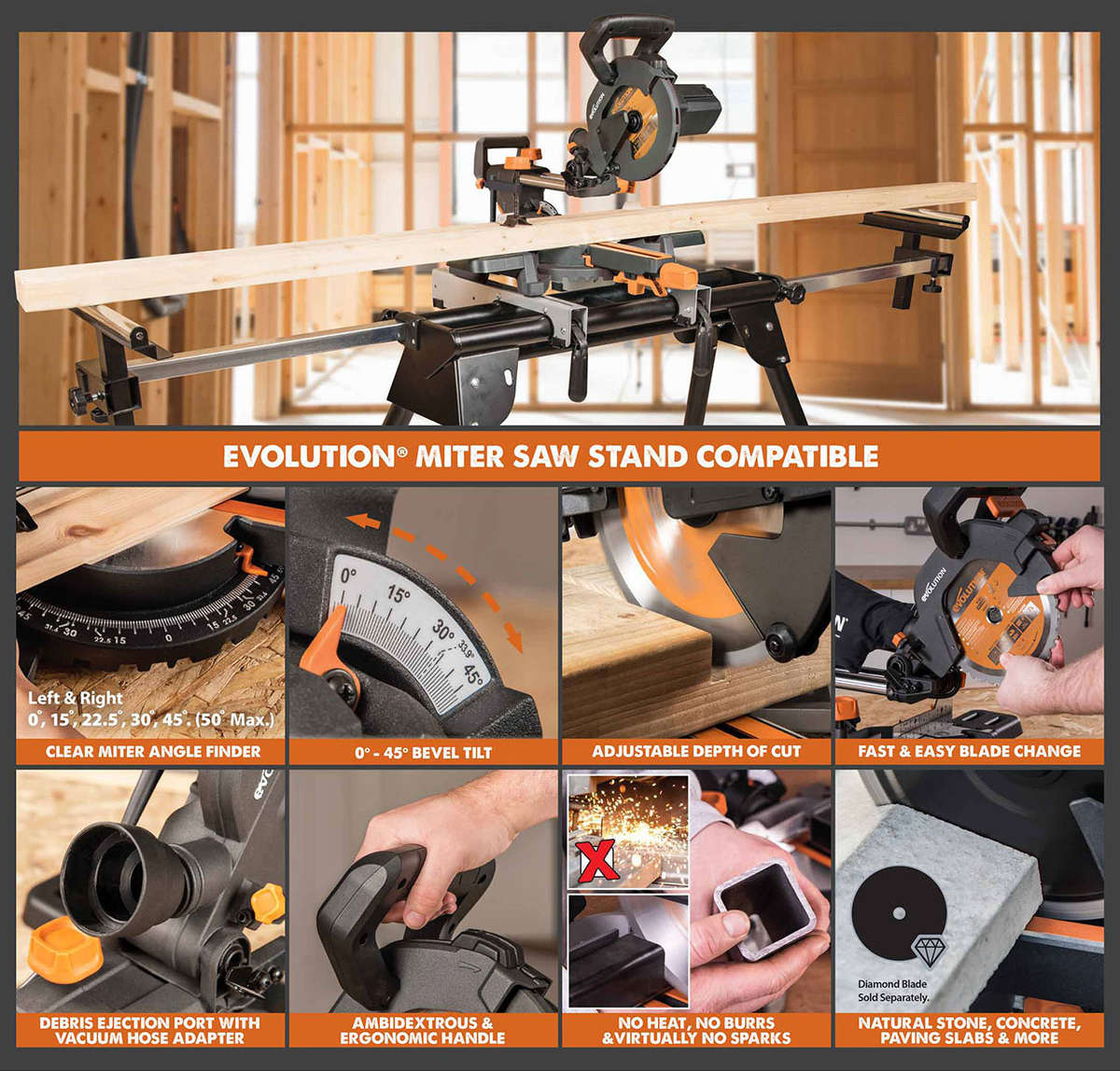

Compatible with the Evolution Miter Saw Stand.
Compact, lightweight & robust design, weighing under 20 lbs.
Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
3 Year limited warranty.

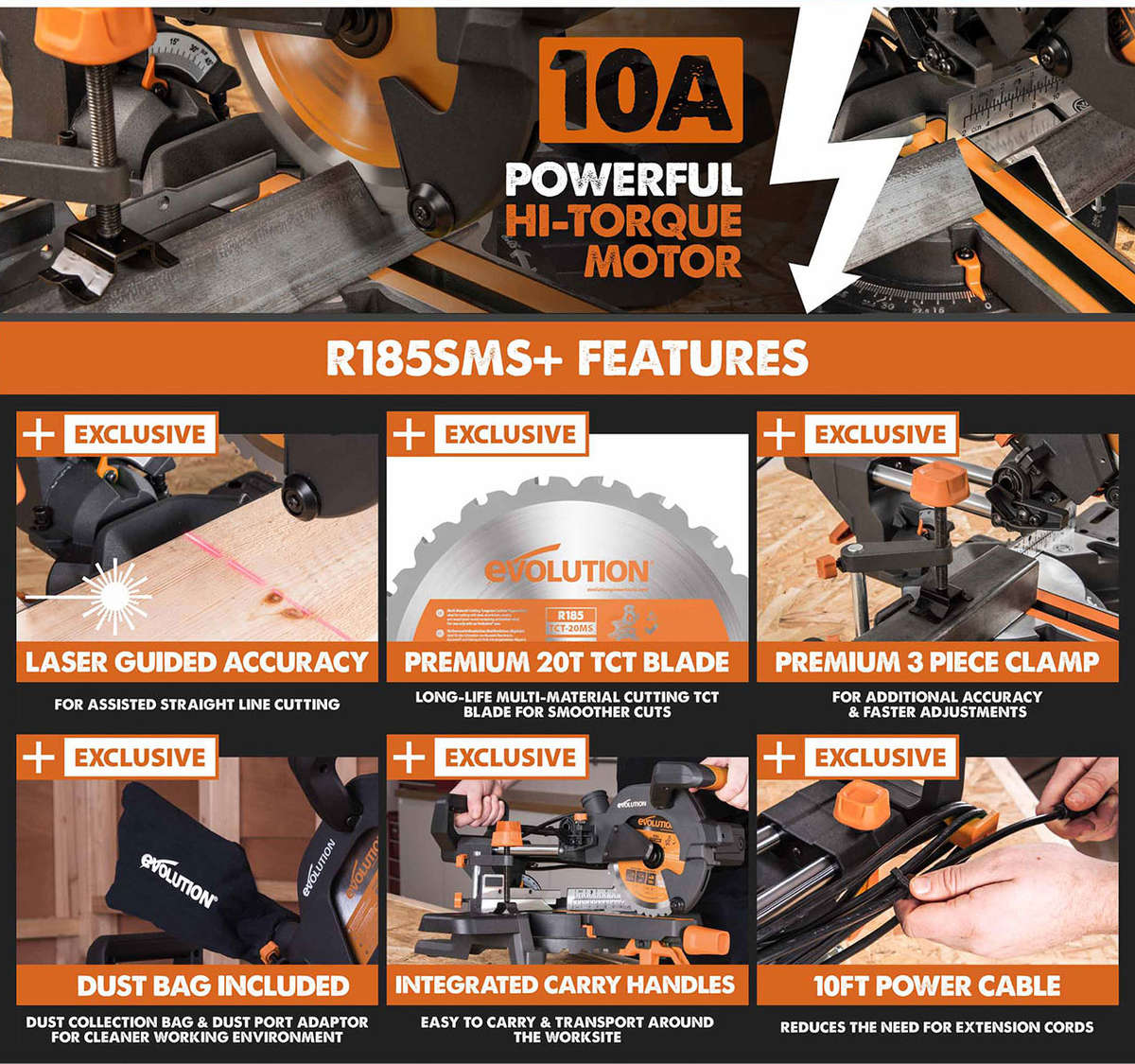

+PLUS Features

Premium Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
3pc clamp included for additional accuracy and faster adjustments.
Laser-Guided Precision for assisted straight-line cutting.
Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
Integrated carry handles - easy to carry and transport around the workplace.
10ft power cable reduces the need for extension leads.

Specifications

Machine Spec

Motor (120V 60Hz):	10 A
Speed No Load:	3700 rpm
Max. Bevel (Left):	45°
Max. Miter:	50°
Cable Length:	10ft

Blade Spec

Blade Dia.:	7-1/4 In.
No. of Teeth:	20
Bore:	25/32 In.
Kerf:	0.066 in.

Cutting Capacities

Max. Cross Cut (0° x 0°):	8-1/4 In. x 2-1/4 In.
Max. Bevel Cut (0° x 45°):	8-1/4 In. x 1-1/2 In.
Max. Miter Cut (45° x 0°):	5-3/4 In. x 2-1/4 In.
Max. Compound Cut (45° x 45°):	5-3/4 In. x 1-1/2 In.
Mild Steel Box Section (Max. Wall Thickness):	1/4 In.
Mild Steel Plate (Max. Thickness):	1/4 In.

Dimensions & Weights

Product Dimensions:	11-3/8 In. x 23-1/2 In. x 22-1/4 In.
Packaging Dimensions:	17-33⁄64 In. x 17-1⁄8 In. x 12-13⁄32 In.
Product Weight:	19.7lbs
Packaged Weight:	23.5lbs

Noise Data

Sound Pressure Level L_PA:	91,9dB(A) K=3 dB(A)
Sound Power Level L_WA:	104,9dB(A) K=3 dB(A)

Items Included

20T Multi-Material TCT Blade	3 Pc Hold Down Clamp
Machine Table Extensions	Dust Collection Bag
Double Ended Hex Key (M6 & M4)	Rotary Table And Neck
Cutting Head	Carriage Slides
Miter Locking Knob	Mains Cable Guide/Clamp (1 Fitted)
Self Tapping Cap Screw	Socket Headed Screws (Fitted)
Cable Clamp Component	Laser Lens Cap (Fitted)
Dust Port Adaptor	Rear Carry Handle
10ft Cable

Cutting Applications

Wood	Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
Ferrous Metal	Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
Non-Ferrous Metal	Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
Plastic	Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
Not Recommended	Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life.

Miter Saw Cross Cut Capacities

		R185SMS+ 7-1/4" Miter Saw	R255SMS+ 10" Miter Saw	R255SMS-DB+ 10" Miter Saw
Max. Cross Cut		2-1/4" x 8-1/4" (Actual)	3-9/16" x 11-13/16" (Actual)	3-1/2" x 11-13/16" (Actual)
Nominal Size Lumber	Actual Size Lumber
1" x 2"	3/4"x 1-1/2"	✔	✔	✔
1" x 3"	3/4"x 2-1/2"	✔	✔	✔
1" x 4"	3/4"x 3-1/2"	✔	✔	✔
1" x 5"	3/4"x 4-1/2"	✔	✔	✔
1" x 6"	3/4"x 5-1/2"	✔	✔	✔
1" x 7"	3/4"x 6-1/4"	✔	✔	✔
1" x 8"	3/4"x 7-1/4"	✔	✔	✔
1" x 10"	3/4"x 9-1/4"	-	✔	✔
1" x 12"	3/4"x 11-1/4"	-	✔	✔
1-1/4" x 4"	1" x 3-1/2"	✔	✔	✔
1-1/4" x 6"	1" x 5-1/2"	✔	✔	✔
1-1/4" x 8"	1" x 7-1/4"	✔	✔	✔
1-1/4" x 10"	1" x 9-1/4"	-	✔	✔
1-1/4" x 12"	1" x 11-1/4"	-	✔	✔
1-1/2" x 4"	1-1/4" x 3-1/2"	✔	✔	✔
1-1/2" x 6"	1-1/4" x5-1/2"	✔	✔	✔
1-1/2" x 8"	1-1/4" x 7-1/4"	✔	✔	✔
1-1/2" x 10"	1-1/4" x 9-1/4"	-	✔	✔
1-1/2" x 12"	1-1/4" x 11-1/4"	-	✔	✔
2" x 2"	1-1/2" x 1-1/2"	✔	✔	✔
2" x 4"	1-1/2" x 3-1/2"	✔	✔	✔
2" x 6"	1-1/2" x 5-1/2"	✔	✔	✔
2" x 8"	1-1/2" x 7-1/4"	✔	✔	✔
2" x 10"	1-1/2" x 9-1/4"	-	✔	✔
2" x 12"	1-1/2" x 11-1/4"	-	✔	✔
3" x 6"	2-1/2" x 5-1/2"	-	✔	✔
4" x 4"	3-1/2" x 3-1/2"	-	✔	✔
4" x 6"	3-1/2" x 5-1/2"	-	✔	✔
4" x 8"	3-1/2" x 7-1/4"	-	✔	✔
4" x 10"	3-1/2" x 9-1/4"	-	✔	✔
4" x 12"	3-1/2" x 11-1/4"	-	✔	✔
4" x 14"	3-1/2" x 13-1/4"	-	-	-
