R255SMSL: Sliding Miter Saw With 10 in. Multi-Material Cutting Blade


  • Make a Selection
  • - $0.00

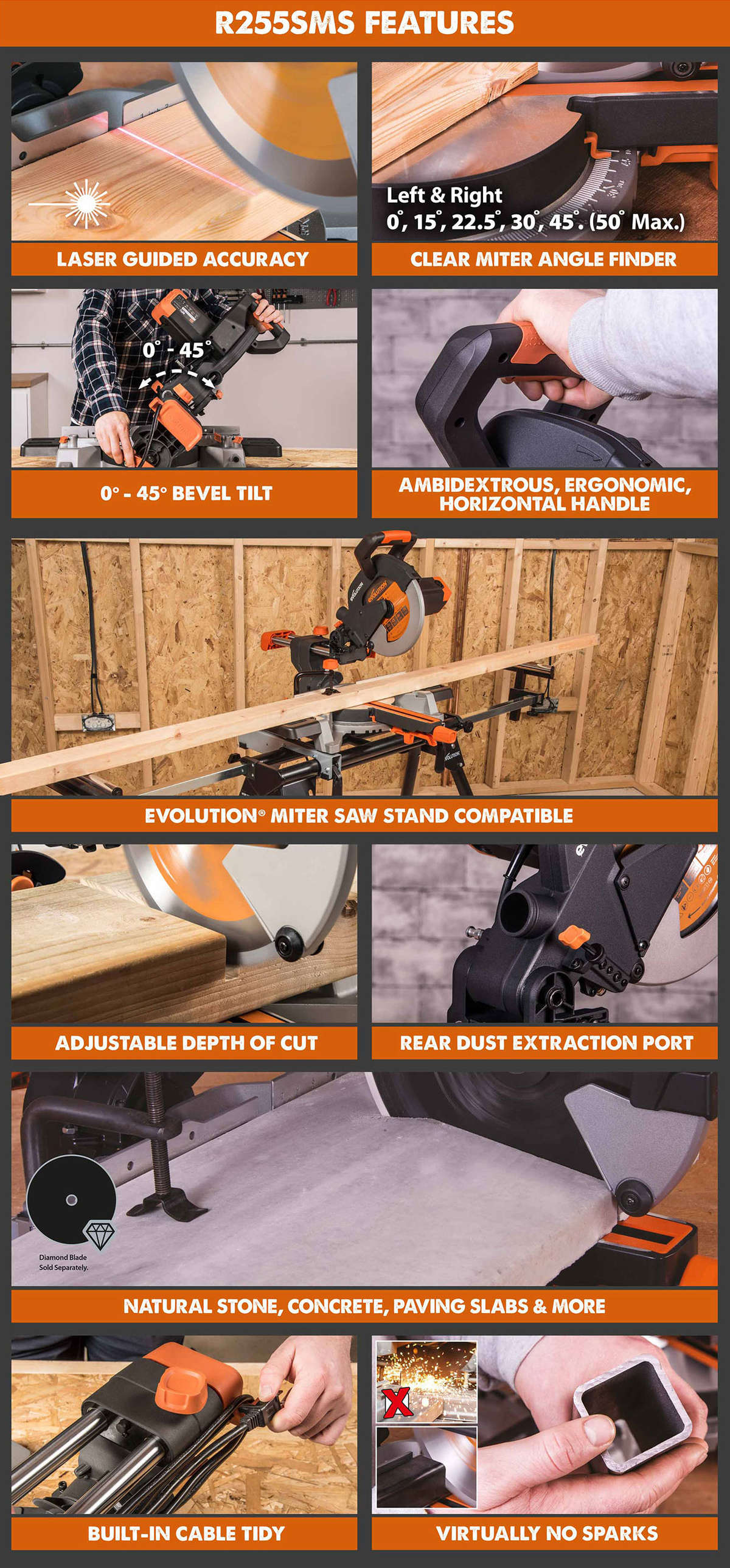

Evolution's most popular 10-inch sliding miter saw. Its ability to cut different materials with the same blade sets it apart from the standard wood cutting saws. Achieves high-quality cuts in soft and hardwood as well an impressive square, clean-cut in mild steel, aluminum, copper, plastic and more. A fantastic addition to any job site or home workshop.
  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate cutting with 11-3/4 inch sliding functionality and adjustable depth of cut.
  • Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.
  • Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
  • Perform accurate Crosscuts, miter cuts, bevel cuts and Compound cuts with adjustable precision settings.
  • Cut to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
  • An impressive 11-3/4 x 3-1/8 inch crosscut capacity and 11-3/4 x 1-3/4 inch bevel cut capacity.
  • Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.
  • Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
  • The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
  • Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included.
  • 3 Year limited warranty.

Machine Spec

Motor (120V 60Hz): 15 A
Speed No Load: 2500 rpm
Max. Bevel (Left): 0° - 45°
Max. Miter: 50° - 50°
Cable Length: 6 ft



Blade Spec

Blade Dia.: 10 in.
No. of Teeth: 24
Bore: 1 in.
Kerf: 0-5/64 in.



Cutting Capacities

Max. Cross Cut (0° x 0°): 11-3/4 x 3-5/32 in.
Max. Bevel Cut (0° x 45°): 8-1/4 x 3-1/8 in.
Max. Miter Cut (45° x 0°): 11-3/4 x 1-3/4 in.
Max. Compound Cut (45° x 45°): 8-1/4 x 1-3/4 in.
Mild Steel Plate
(Max. Thickness):
1/4 in.
Mild Steel Box Section
(Max. Wall Thickness):
1/8 in.



Items Included

Machine Table Extensions Double Ended Hex Key (M6 & M5)
Rotary Table And Neck Cutting Head
Carriage Slides Mitre Locking Knob
Mains Cable Guide/Clamp Self Tapping Cap Screw
Socket Headed Screws Cable Clamp Component
Double Ended Cable Clip Slide Rail Protector
2pc Hold Down Clamp 10 inch 24 Tooth Blade



Dimensions & Weights

Product Dimensions: 14- 3/16 x 27-3/4 x 28-47/64 in.
Packaging Dimensions: 22-1⁄4 x 14-3⁄8 x 20-15⁄32 in.
Product Weight: 33.7 lbs
Packaged Weight: 39.2 lbs



Noise Data

Sound Pressure Level LPA: 95,8 dB(A)
K=3 dB(A)
Sound Power Level LWA: 108,8 dB(A)
K=3 dB(A)



Cutting Applications

 Wood Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
 Ferrous Metal Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
 Non-Ferrous Metal Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
 Plastic Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
 Not Recommended Hardened high carbon, coated and stainless steel.
Note: Cutting galvanized steel may reduce blade life.
