Evolution R260DCT-Li Concrete Saw Spare Parts

Latest Model

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 EVO-TOOL, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution R260DCT-Li Concrete Saw Spare Parts

Evolution R260DCT-Li Concrete Saw Spare Parts

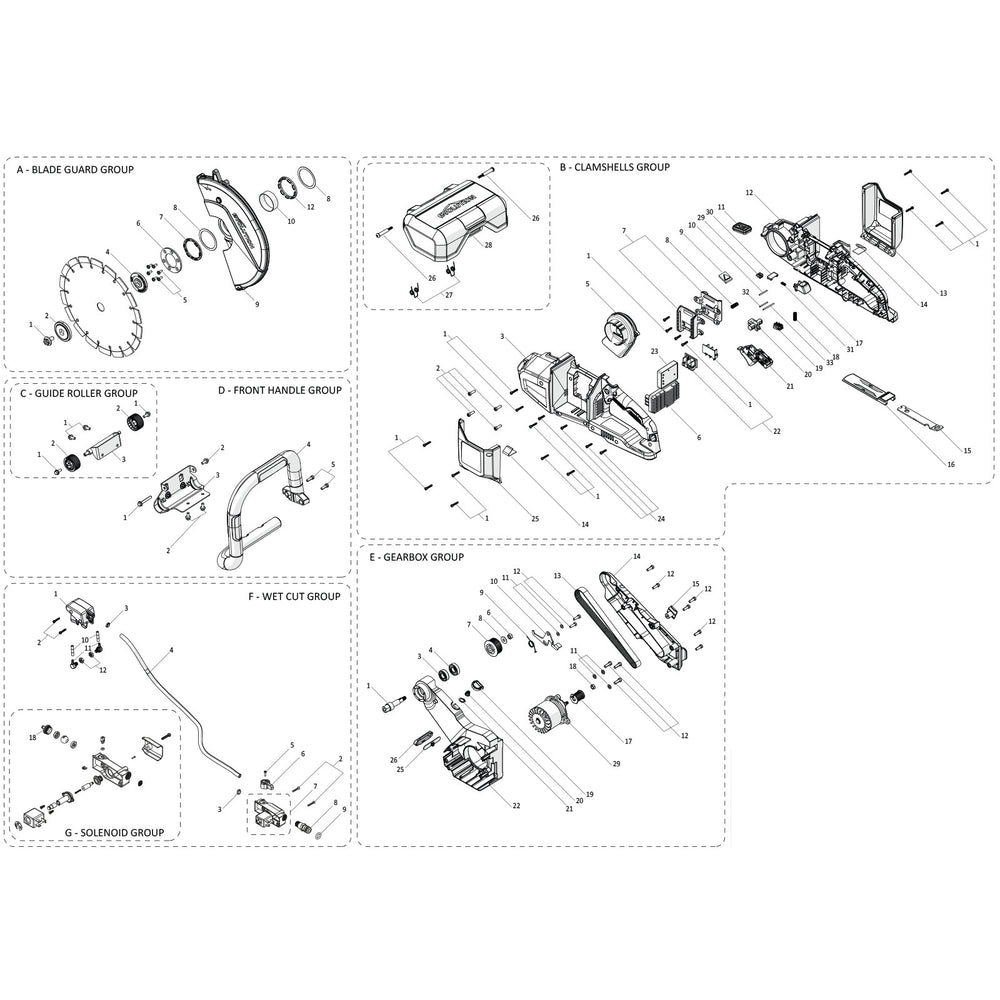

Parts List:

A01 - Blade Bolt (# 012-0211)

$2.99

In Stock

A02 - Flange Outer 50Mm Pressed (# 010-0114)

$6.99

Out of Stock

A04 - Flange Inner 50Mm Pm (# 010-0113)

$5.99

Out of Stock

A05 - Screw Pan Head Torx Steel Bo M4 6Mm (# F-SFPT-M4-6-ST-BO)

$2.99

Out of Stock

A06 - Blade Guard Retaining Plate (# 109-0108)

$3.99

Out of Stock

A07 - Rubber Guard Outer Washer (# 109-0231)

$2.99

Out of Stock

A08 - Fiber Washer (# 109-0228)

$2.99

Out of Stock

A09 - Blade Guard (# 109-0107)

$37.99

Out of Stock

A10 - Guard Sleeve (# 109-0230)

$2.99

Out of Stock

A12 - Rubber Guard Inner Washer (# 109-0229)

$2.99

Out of Stock

B01 - Tapping Screw Pan Head Torx Bo M4 20Mm T20 (# F-TFBHT-M4-20-BO-T20)

$2.99

Out of Stock

B02 - Screw Head Cap Torx Steel Bo M5 16Mm (# F-SHCT-M5-16-ST-BO)

$2.99

Out of Stock

B03 - Clamshell Right (# 109-0214)

$2.99

Out of Stock

B05 - Motor Vent Duct (# 109-0145)

$3.99

Out of Stock

B06 - Controller Motor Brushless 36V (# 109-0196)

$100.99

Out of Stock

B07 - Battery Socket (# 109-0148)

$2.99

Out of Stock

B08 - Lock Off Spring (# 109-0118)

$2.99

Out of Stock

B09 - Overload Led Window (# 109-0151)

$2.99

Out of Stock

B10 - Lid Latch Mount Pin (# 109-0191)

$2.99

Out of Stock

B11 - Control Panel Switch (# 109-0154)

$5.99

Out of Stock

B12 - Clamshell Left (# 109-0217)

$2.99

Out of Stock

B13 - Battery Compartment Left (# 109-0122)

$4.99

Out of Stock

B14 - Battery Spring Plate (# 109-0153)

$2.99

Out of Stock

B15 - Spanner (# 012-0176)

$2.99

Out of Stock

B16 - Onboard Tool Storage (# 109-0126)

$2.99

Out of Stock

B17 - Lid Latch (# 109-0125-1)

$2.99

Out of Stock

B18 - Lid Latch Spring (# 109-0190)

$2.99

Out of Stock

B19 - Microswitch (# 109-0195)

$2.99

Out of Stock

B20 - Lock Off Push Button (# 109-0117)

$2.99

Out of Stock

B21 - Trigger Switch (# 109-0124)

$24.99

Out of Stock

B22 - Battery Connector (# 068-0159)

$2.99

Out of Stock

B23 - Battery Controller Pcb 36V (# 068-0160)

$2.99

Out of Stock

B24 - Tapping Screw Pan Head Torx Bo M4 16Mm T20 (# F-TFBHT-M4-16-BO-T20)

$2.99

Out of Stock

B25 - Battery Compartment Right (# 109-0121)

$4.99

Out of Stock

B26 - Compartment Lid Self Tap Shoulder Screw (# 109-0142)

$2.99

Out of Stock

B27 - Compartment Lid Torsion Spring (# 109-0143)

$2.99

Out of Stock

B28 - Battery Compartment Lid (# 109-0123)

$9.99

Out of Stock

B29 - Lid Release Latch (# 109-0125-2)

$2.99

Out of Stock

B30 - Lid Release Latch Retainer (# 109-0125-3)

$2.99

Out of Stock

B31 - Lid Release Latch Spring (# 109-0125-4)

$2.99

Out of Stock

B32 - Microswitch Mount Pin Short (# 109-0232)

$2.99

Out of Stock

B33 - Microswitch Mount Pin Long (# 109-0233)

$2.99

Out of Stock

C01 - Flanged Hex Screw M5X10 (# F-HFS-M5-10-ST-BO)

$2.99

Out of Stock

C02 - Guide Wheel (# 109-0133)

$2.99

Out of Stock

C03 - Guide Wheel Chassis (# 109-0132)

$6.99

Out of Stock

D01 - Flanged Hex Screw M5X35 (# F-HFS-M5-35-ST-BO)

$2.99

Out of Stock

D02 - Flanged Hex Screw M5X10 (# F-HFS-M5-10-ST-BO)

$2.99

Out of Stock

D03 - Skid Plate (# 109-0130)

$5.99

Out of Stock

D04 - Front Handle (# 109-0128)

$19.99

Out of Stock

D05 - Screw Head Cap Torx Steel Bo M5 16Mm (# F-SHCT-M5-16-ST-BO)

$2.99

Out of Stock

E01 - Arbor Shaft (# 109-0116)

$7.99

Out of Stock

E03 - 6002 Bearing (# F-B-6002-2Z)

$2.99

In Stock

E04 - 6201 Bearing (# F-B-6201-2Z)

$2.99

Out of Stock

E06 - Nut M8 (# F-NSF-M8-ST-BO)

$4.99

Only 3 left

E07 - Driven Pulley (# 109-0200)

$6.99

Out of Stock

E08 - Washer M8 Steel Bo (# F-W-M8-ST-BO)

$53.99

In Stock

E09 - Blade Lock Arm Torsion Spring (# 109-0141)

$2.99

Out of Stock

E10 - Blade Lock Arm (# 109-0113)

$3.99

Out of Stock

E11 - Washer M5 Steel Bo (# F-W-M5-ST-BO)

$53.99

Out of Stock

E12 - Screw Head Cap Torx Steel Bo M5 16Mm (# F-SHCT-M5-16-ST-BO)

$2.99

Out of Stock

E13 - Toothed Drive Belt (# 109-0103)

$21.99

Out of Stock

E14 - Belt Cover & Hose Retention (# 109-0144)

$6.99

Out of Stock

E15 - Upper Hose Clip (# 109-0188)

$2.99

Out of Stock

E17 - Driving Pulley (# 109-0101)

$4.99

Out of Stock

E18 - Nut M6 (# F-NSF-M6-ST-BO)

$53.99

In Stock

E19 - Blade Lock Push Button (# 109-0115)

$2.99

Out of Stock

E20 - Blade Lock Push Button Conical Spring (# 109-0114)

$2.99

Out of Stock

E21 - E Clip 6Mm Id (# F-ECLIP-6-100-ST-BO)

$2.99

In Stock

E22 - Gearbox Chassis (# 109-0111)

$33.99

Out of Stock

E25 - Dual Led Unit (# 109-0213)

$2.99

Out of Stock

E26 - Led Holder (# 109-0213-1)

$2.99

Out of Stock

E29 - Motor Dxc 36V Brushless (# 109-0137)

$89.99

Out of Stock

F01 - Blade Guard Handle Manifold (# 109-0109)

$4.99

Out of Stock

F02 - Tapping Screw Pan Head Torx Bo M4 20Mm T20 (# F-TFBHT-M4-20-BO-T20)

$2.99

Out of Stock

F03 - Hose Clip 10Mm (# 109-0182)

$2.99

Out of Stock

F04 - Main Water Hose (# 109-0178)

$10.99

Out of Stock

F05 - Screw Button Head Torx Steel Bo M3 12Mm (# F-SBT-M3-12-ST-BO)

$2.99

Out of Stock

F06 - Water Valve Lever (# 109-0177)

$2.99

Out of Stock

F07 - Solenoid Valve Assembly (# 109-0209)

$43.99

Out of Stock

F08 - Hose Adaptor Brass (# 109-0160)

$5.99

Out of Stock

F09 - Hose Adaptor O-Ring (# 109-0161)

$2.99

Out of Stock

F10 - Blade Guard Water Hose (# 109-0234)

$2.99

Out of Stock

F11 - Water Outlet (# 012-0210)

$2.99

In Stock

F12 - M8 Half Nut Bzp (# F-NSH-M8-ST-BZP)

$2.99

Out of Stock

F13 - Hose Connector (# 012-0230)

$6.99

Out of Stock

G18 - Solenoid Valve Outlet Nozzle (# 109-0209-17)

$26.99

Out of Stock
