  • Evolution S355CPS Spare Parts (Head)

Evolution S355CPS Chop Saw Spare Parts (Head)

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 386-8665, toll free. They will find the part and create the order for you, with FREE delivery.

Evolution S355CPS Spare Parts (Head)

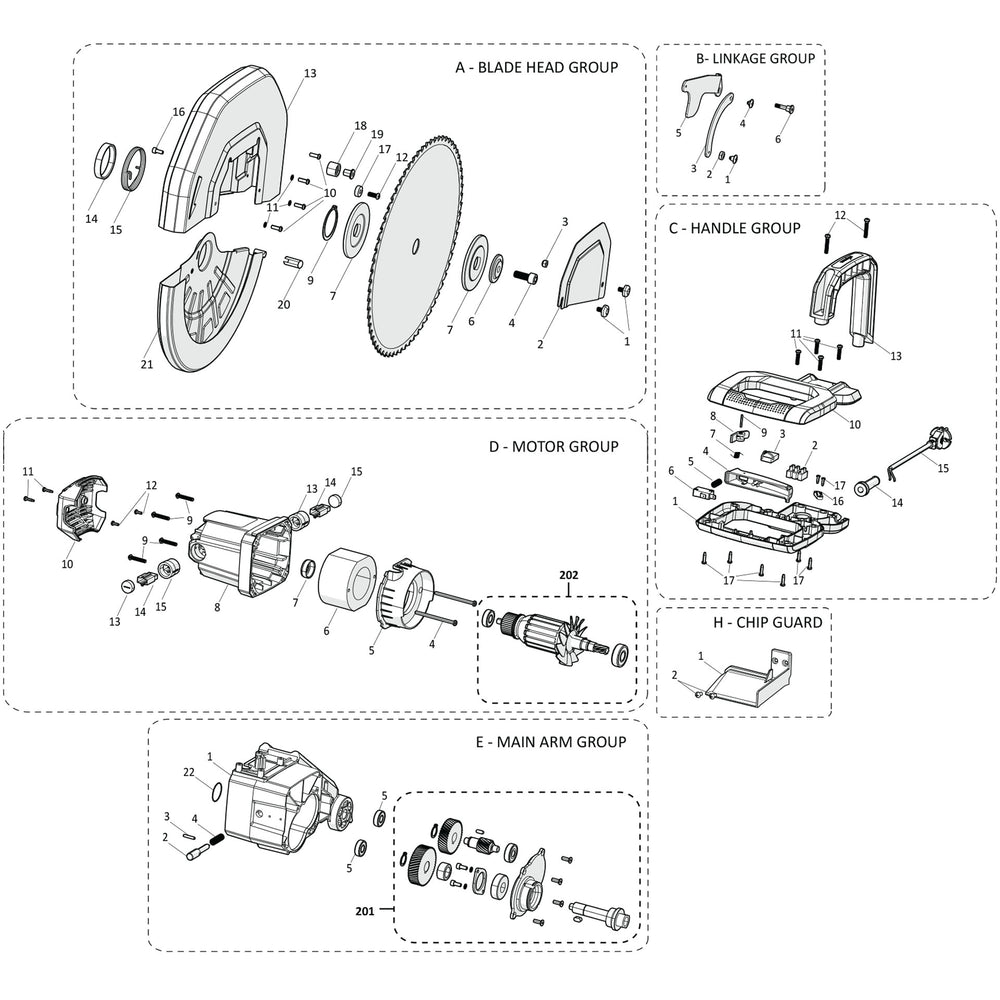

Find the part number on the diagram, and search the number from the list below.
Please enter a search term before proceeding.
A01 - Arbour Cover Screw x1 (# 083-0101)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A02 - Arbour Cover x1 (# 083-0102)
$3.99

Only 9 left

FREE 1 to 2 Day Delivery
A03 - Locking Nut M6 x1 (# F-NSH--M6-ST-BO)
$2.99

Out of Stock

A04 - Socket Cap Screw M10x25 x1 (# F-SHCS-M10-25-ST-BO)
$1.25

In Stock

FREE 1 to 2 Day Delivery
A06 - Blade Washer x1 (# 083-0103)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A07 - Flange 89 x1 (# 084-0104)
$4.99

Out of Stock

A09 - Circlip φ48 x1 (# F-CCEXT-48-120-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A10 - Pozi Pan Head Screw M5x14 x1 (# F-SPHPZ-M5-14-ST-BO)
$4.99

In Stock

FREE 1 to 2 Day Delivery
A11 - Spring Washer φ5 x1 (# F-SWA-M5-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A12 - Pozi Pan Head Screw M6x12 x1 (# F-SPHPZ-M6-12-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A13 - Blade Head Assembly 355 x1 (# 083-0105)
$25.99

In Stock

FREE 1 to 2 Day Delivery
A14 - Moving Guard Spring Spacer 355 x1 (# 083-0106)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A15 - Moving Guard Spring x1 (# 083-0107)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A16 - Socket Cap Screw M5x12 x1 (# F-SHCS-M5-12-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A17 - Ball Bearing 606 x1 (# F-B-606-2Z)
$8.99

Only 12 left

FREE 1 to 2 Day Delivery
A18 - Bump Stop x1 (# 083-0108)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A19 - Bump Stop Fixing x1 (# 083-0109)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A20 - Slider Cap x1 (# 083-0110)
$2.99

In Stock

FREE 1 to 2 Day Delivery
A21 - Moving Guard Assembly 355 x1 (# 083-0111)
$9.99

Only 20 left

FREE 1 to 2 Day Delivery
B01 - Linkage Shoulder Screw Upper x1 (# 083-0115)
$2.99

In Stock

FREE 1 to 2 Day Delivery
B02 - Screw Spacer x1 (# 083-0116)
$2.99

Only 6 left

FREE 1 to 2 Day Delivery
B03 - Small Linkage x (# 083-0117)
$3.99

Only 2 left

FREE 1 to 2 Day Delivery
B04 - Linkage Shoulder Screw Middle x1 (# 083-0118)
$2.99

In Stock

FREE 1 to 2 Day Delivery
B05 - Main Linkage x1 (# 083-0119)
$2.99

Only 14 left

FREE 1 to 2 Day Delivery
B06 - Linkage Shoulder Screw Lower x1 (# 083-0120)
$2.99

Only 18 left

FREE 1 to 2 Day Delivery
C01 - Main Handle Lower x1 (# 083-0121)
$21.99

Only 11 left

FREE 1 to 2 Day Delivery
C02 - Terminal Block x1 (# 083-0122)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C04 - Main Trigger Blue x1 (# 084-0106)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C05 - Main Trigger Spring x1 (# 083-0126)
$3.99

Only 7 left

FREE 1 to 2 Day Delivery
C06 - Switch x1 (# 084-0172)
$3.99

Out of Stock

C07 - Trigger Lock Spring x1 (# 083-0128)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C08 - Lock Trigger x1 (# 083-0129)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C09 - Trigger Lock Pin x1 (# 083-0130)
$4.99

In Stock

FREE 1 to 2 Day Delivery
C10 - Main Handle Upper x1 (# 083-0131)
$14.99

Out of Stock

C11 - Pozi Pan Head Screw M5x30 w/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C12 - Pozi Pan Head Screw M5x30 w/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C13 - Carry Handle x1 (# 083-0132)
$3.99

Only 17 left

FREE 1 to 2 Day Delivery
C14 - Cable Sleeve Small x1 (# 083-0133)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C15 - Cable US 120V/R10f x1 (# 084-0110)
$12.99

In Stock

FREE 1 to 2 Day Delivery
C16 - Cable Strain Clamp x1 (# 083-0140)
$2.99

In Stock

FREE 1 to 2 Day Delivery
C17 - Pozi Pan Head Tapping Screw ST4x16 x1 (# F-TFPX-4-16-ST-BO)
$1.25

In Stock

FREE 1 to 2 Day Delivery
D04 - Pozi Pan Head Tapping Screw ST5x80 x1 (# F-TFPX-5-80-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D05 - Air Baffle 65 x1 (# 084-0125)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D06 - Stator 65/110-120V1800W/15A x1 (# 084-0126)
$16.24

Out of Stock

D06 - Stator 65/220-240V2200W x1 (# 084-0127)
$62.99

Out of Stock

D07 - Ball Bearing Cap x1 (# 053-0270)
$2.99

Out of Stock

D08 - Motor Housing x1 (# 083-0150)
$5.99

Only 17 left

FREE 1 to 2 Day Delivery
D09 - Pozi Pan Head Screw M5x30 w/ Washer x1 (# F-SPHPZ-M5-30-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D10 - End Cap Blue x1 (# 084-0131)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D11 - Pozi Pan Head Tapping Screw ST4x16 x1 (# F-TFPX-4-16-ST-BO)
$1.25

In Stock

FREE 1 to 2 Day Delivery
D12 - Pozi Pan Head Screw M4x10 x1 (# F-SPHPZ-M4-10-ST-BO)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D13 - Brush Holder x1 (# 083-0152)
$2.99

Only 13 left

FREE 1 to 2 Day Delivery
D15 - Brush Holder Cover x1 (# 083-0155)
$2.99

In Stock

FREE 1 to 2 Day Delivery
D202 - Armature 65 Assembly 110-120V UK/USA x1 (# 084-0050)
$99.99

Out of Stock

E01 - Arm x1 (# 083-0160)
$72.99

In Stock

FREE 1 to 2 Day Delivery
E02 - Arbour Locking Pin x1 (# 083-0161)
$2.99

In Stock

FREE 1 to 2 Day Delivery
E03 - Roller Pin 4x20 x1 (# F-SDL-4-20--ST-BO)
$4.99

Only 19 left

FREE 1 to 2 Day Delivery
E04 - Locking Pin Spring x1 (# 083-0162)
$2.99

In Stock

FREE 1 to 2 Day Delivery
E05 - Ball Bearing 6000 YQ x1 (# F-B-6000-2Z)
$3.99

In Stock

FREE 1 to 2 Day Delivery
E22 - Rubber Bearing Ring x1 (# 083-0196)
$2.99

In Stock

FREE 1 to 2 Day Delivery
E201 - Gearbox Assembly (S355/380) x1 (# 084-0055)
$54.99

In Stock

FREE 1 to 2 Day Delivery
H01 - Chip Guard x1 (# 084-0170)
$2.99

In Stock

FREE 1 to 2 Day Delivery
H02 - Pozi Pan Head Screw M5x8 x1 (# F-SPHPZ-M5-8-ST-BO)
$1.25

In Stock

FREE 1 to 2 Day Delivery
