S5AGR-Li Cordless Angle Grinder Spare Parts

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Davenport IA, a quick call on 866 386-8665, toll free. They will find the part and create the order for you, with FREE delivery.

S5AGR-Li Cordless Angle Grinder Spare Parts

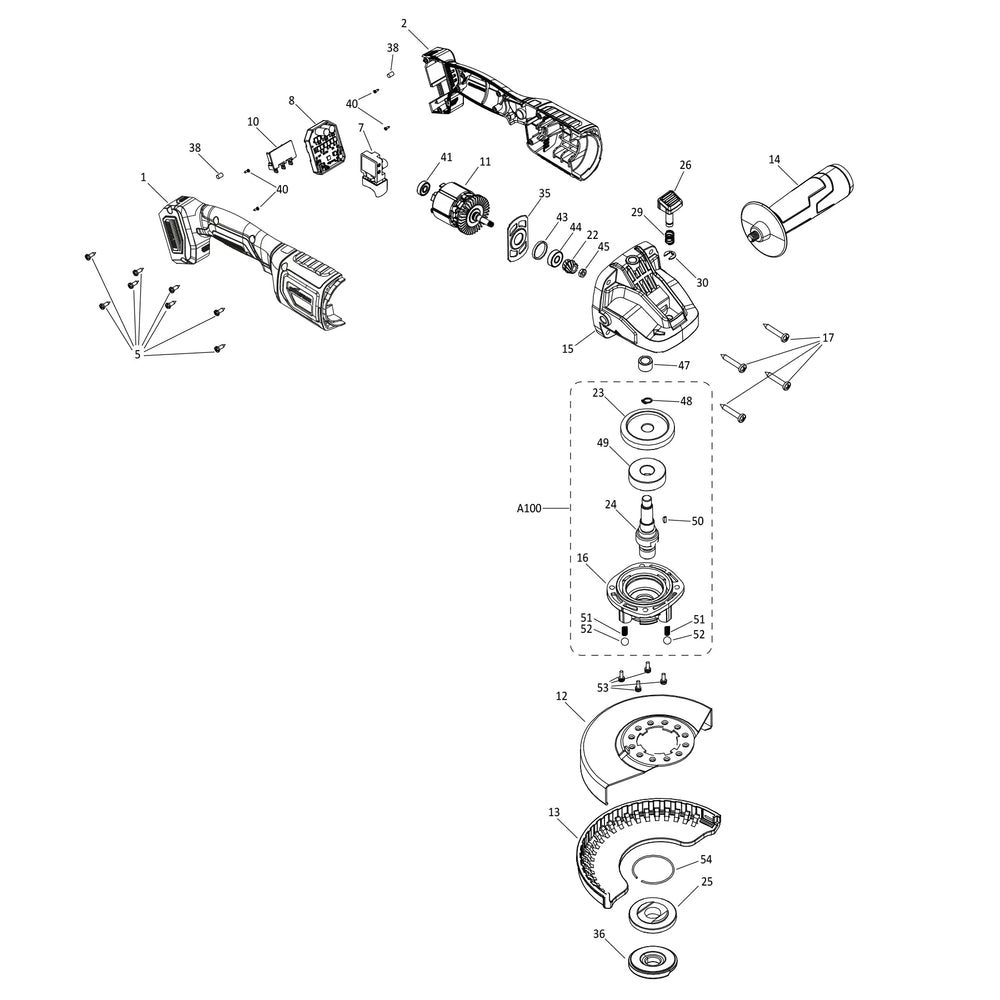

Find the part number on the diagram, and search the number from the list below.

A100 - LOWER GEARBOX & OUTPUT SHAFT ASSEMBLY (# 142-0141)

$2.98

Out of Stock

A1 - LEFT BODY HOUSING (# 142-0101)

$6.98

Out of Stock

A2 - RIGHT BODY HOUSING (# 142-0102)

$6.98

Out of Stock

A5 - THREAD FORMING SCREW PAN HEAD POZIDRIV M4X14 (# F-TFPX-M4-14-ST-BO)

$0.98

In Stock

FREE 1 to 2 Day Delivery

A7 - TRIGGER SWITCH (# 142-0112)

$10.98

Out of Stock

A8 - MOTOR CONTROLLER PCB (# 139-0113)

$35.98

Out of Stock

A10 - BATTERY PIN CONNECTOR (# 139-0115)

$7.98

Out of Stock

A11 - MOTOR - BRUSHLESS INRUNNER (# 142-0116)

$33.98

Out of Stock

A12 - BLADE GUARD (# 142-0105)

$5.98

Out of Stock

A13 - BLADE GUARD COVER (# 142-0117)

$5.98

Out of Stock

A14 - AUX HANDLE (# 142-0106)

$4.98

Out of Stock

A15 - GEARBOX (# 142-0107)

$6.98

Out of Stock

A16 - GEARBOX COVER (# 142-0108)

$4.98

Out of Stock

A17 - SCREW PAN HEAD POZIDRIV ST4.2X22 (# F-SPHPZ-M4.2-22-ST-BO)

$0.98

Out of Stock

A22 - BEVEL PINION (# 142-0118)

$5.98

Out of Stock

A23 - BEVEL GEAR (# 142-0119)

$8.98

Out of Stock

A24 - BLADE SHAFT M14 (# 142-0120)

$9.98

Out of Stock

A25 - INNER FLANGE (# 142-0121)

$4.98

Out of Stock

A26 - OUTPUT SHAFT LOCK ACTUATOR (# 139-0122)

$1.98

Out of Stock

A29 - OUTPUT SHAFT LOCK SPRING (# 139-0123)

$0.98

Out of Stock

A30 - ECLIP 5X0.8MM (# F-ECLIP-5-080-ST-PO)

$0.98

Out of Stock

A35 - GEARBOX INPUT BEARING RETAINING PLATE (# 142-0128)

$1.98

Out of Stock

A36 - OUTER FLANGE (# 142-0124)

$6.98

Out of Stock

A38 - RUBBER COLUMN ¯5X8 (# 139-0132)

$0.98

Out of Stock

A40 - THREAD FORMING SCREW PAN HEAD POZIDRIV M5X5 (# F-TFPX-M5-5-ST-BO)

$0.98

Out of Stock

A41 - BEARING 607-2Z (# F-B-607-2Z)

$6.98

Out of Stock

A43 - RUBBER RING ¯22X¯25X3 (# 139-0134)

$0.98

Out of Stock

A44 - BEARING 608-2RS (# F-B-608-2RS)

$7.98

Out of Stock

A45 - NUT STANDARD LOCK / HA;LF NUT NSH (# F-NSH-M6-ST-SC)

$0.98

Out of Stock

A47 - PM WEAR-RESISTANT BEARING 081208 (# F-B-081208)

$6.98

Out of Stock

A48 - ELASTIC RETAINING RING ¯10 (# 142-0134)

$0.98

Out of Stock

A49 - DEEP GROOVE BALL BEARING (# F-BEARING)

$6.98

Out of Stock

A50 - WOODRUFF KEY (# F-FK-10-3-3.7-HRC35-40)

$0.98

Out of Stock

A51 - STEEL BALL SPRING (# 142-0135)

$0.98

Out of Stock

A52 - STEEL BALL (# 142-0136)

$0.98

Out of Stock

A53 - SCREW PAN HEAD POZIDRIV M4X14 (# F-SPHS-M4-14-ST-BO)

$0.98

Out of Stock

A54 - STEEL CABLE BAFFLE RING (# 142-0137)

$0.98

Out of Stock
