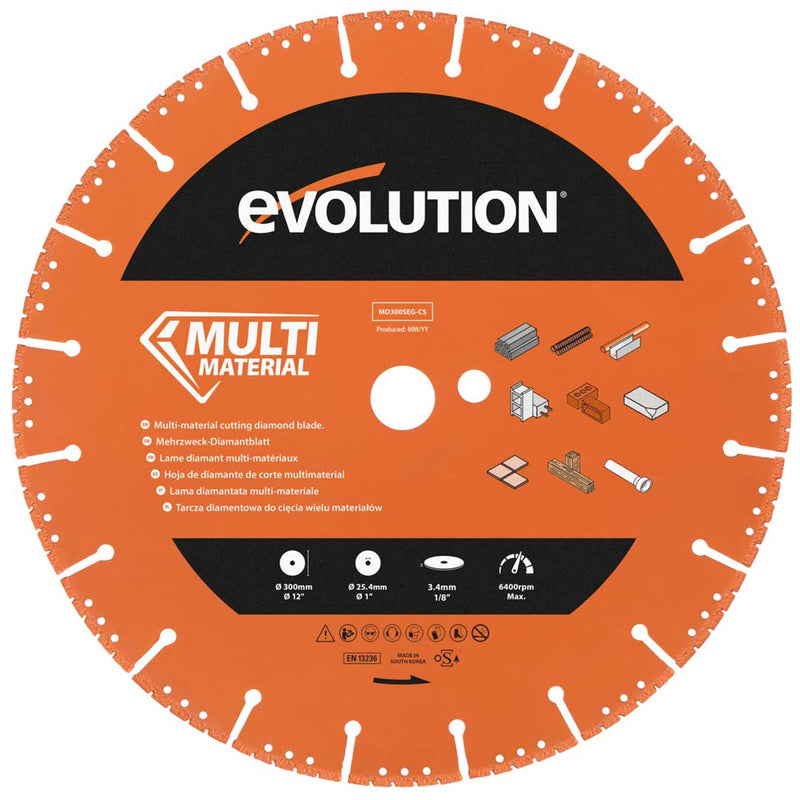

Evolution MD300SEG-CS | 12 in. | Segmented Edge | 1 in. Arbor | Multi-Purpose, Metal Cutting Diamond Blade
SKU: MD300SEG-CS
- Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money
- 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel
- Constant Diameter: Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade Read more
45-Day Satisfaction Guarantee
Earn 258 EVO Points with purchase
Compatible with: Evolution R300DCT and the R300DCT+
Pay-In-4 :
$32.25
per month
Only 15 left!
Frequently Bought Together
Compatible with:
Description
Multi-material cutting diamond edge blade offers versatile cutting and superior blade life.
- Compatible with the R300DCT Concrete Cutting Saw and the R300DCT+ Concrete Cutting Saw
- Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money.
- 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel.
- Constant Diameter:Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade.
- Cleaner & Safer: The steel body won’t shatter, unlike abrasives, which can cause serious injury. Less dust, less sparks & less odour vs abrasive discs, make this a safer cutting solution.

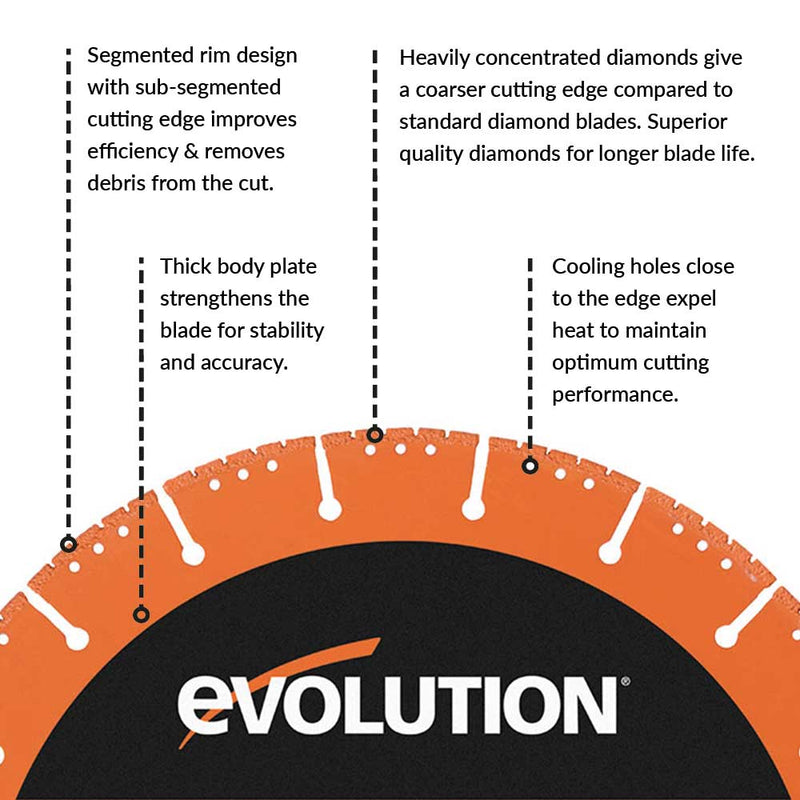

- Cooling holes close to the edge expel heat to maintain optimum cutting performance.
- Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
- Superior quality diamonds for longer blade life.
- Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
- Thick body plate strengthens the blade for stability and accuracy.
Note: The Evolution multi-material, metal cutting blade should not be used when water is being used for dust suppression.
Specifications
Dia. Ø: | 12 in. |
Max. Speed: | 6400 RPM |
Bore / Arbor Ø: | 1 in. |
Rim: | Segmented |
Base Thickness: | 0.083 in. |
Segment / Tooth Thickness: | 0.134 in. |
Segment / Tooth Height: | 0.118 in. |
Segment / Tooth Quantity: | 20 |
Sub-Segment / Tooth Quantity: | 100 |
Optional Concrete Saw Blades
Materials | General Purpose Diamond Blades |
Premium Diamond Blades |
Multi-Material Diamond Blades |
---|---|---|---|
Cured Concrete | ✪✪✪ | ✪✪✪ | ✪ |
Reinforced Concrete | ✪✪✪ | ✪✪✪ | ✪ |
Standard Brick | ✪✪✪ | ✪✪✪ | ✪ |
Roof Tile | ✪✪✪ | ✪✪✪ | ✪ |
Soft Natural Stone (Limestone, Sandstone etc.) | ✪✪ | ✪✪✪ | ✪ |
Engineering Brick | ✪✪ | ✪✪✪ | ✪ |
Hard Natural Stone (Quartz, Granite etc.) | ✪ | ✪✪✪ | X |
Iron | X | X | ✪✪✪ |
Ductile Iron | X | X | ✪✪✪ |
Steel & Stainless Steel | X | X | ✪✪✪ |
Plastic | X | X | ✪✪✪ |
Abrasive Material | ✪✪ | ✪✪ | ✪✪ |
Aluminium | X | X | ✪✪ |
Fibre-Reinforced plastic | X | X | ✪✪ |
Wood | X | X | ✪✪ |
Hard Tile, Porcelain | X | X | ✪ |
Ceramic Tiles | X | X | ✪ |
X - Not Suitable | ✪ - Limited Life | ✪✪ - Good | ✪✪✪ - Optimum |
