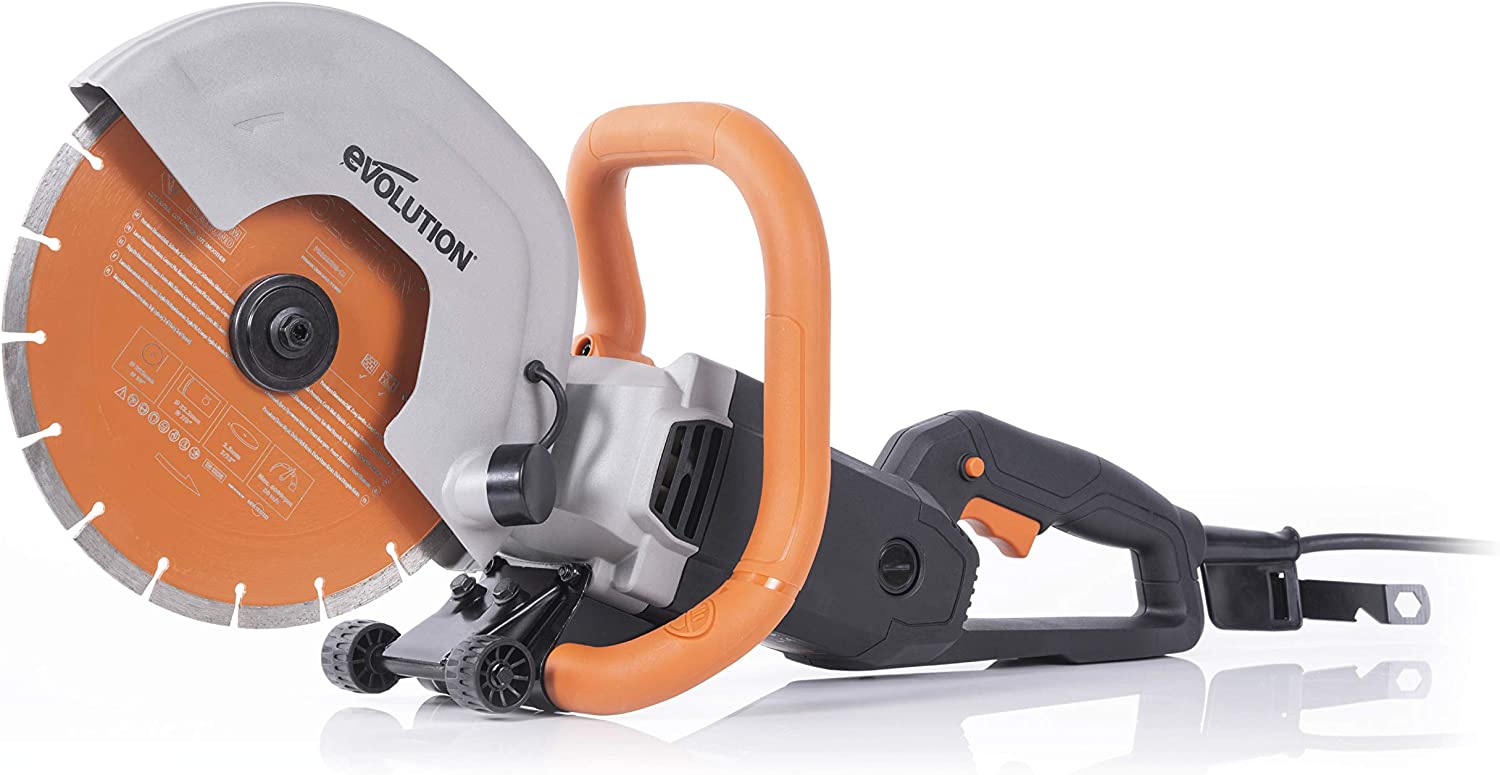

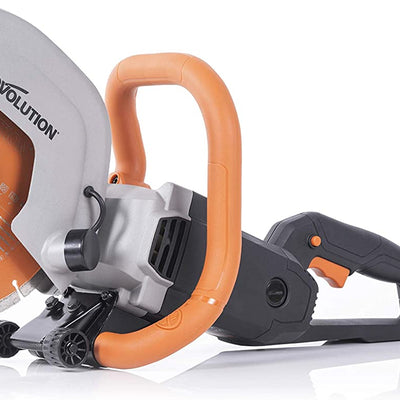

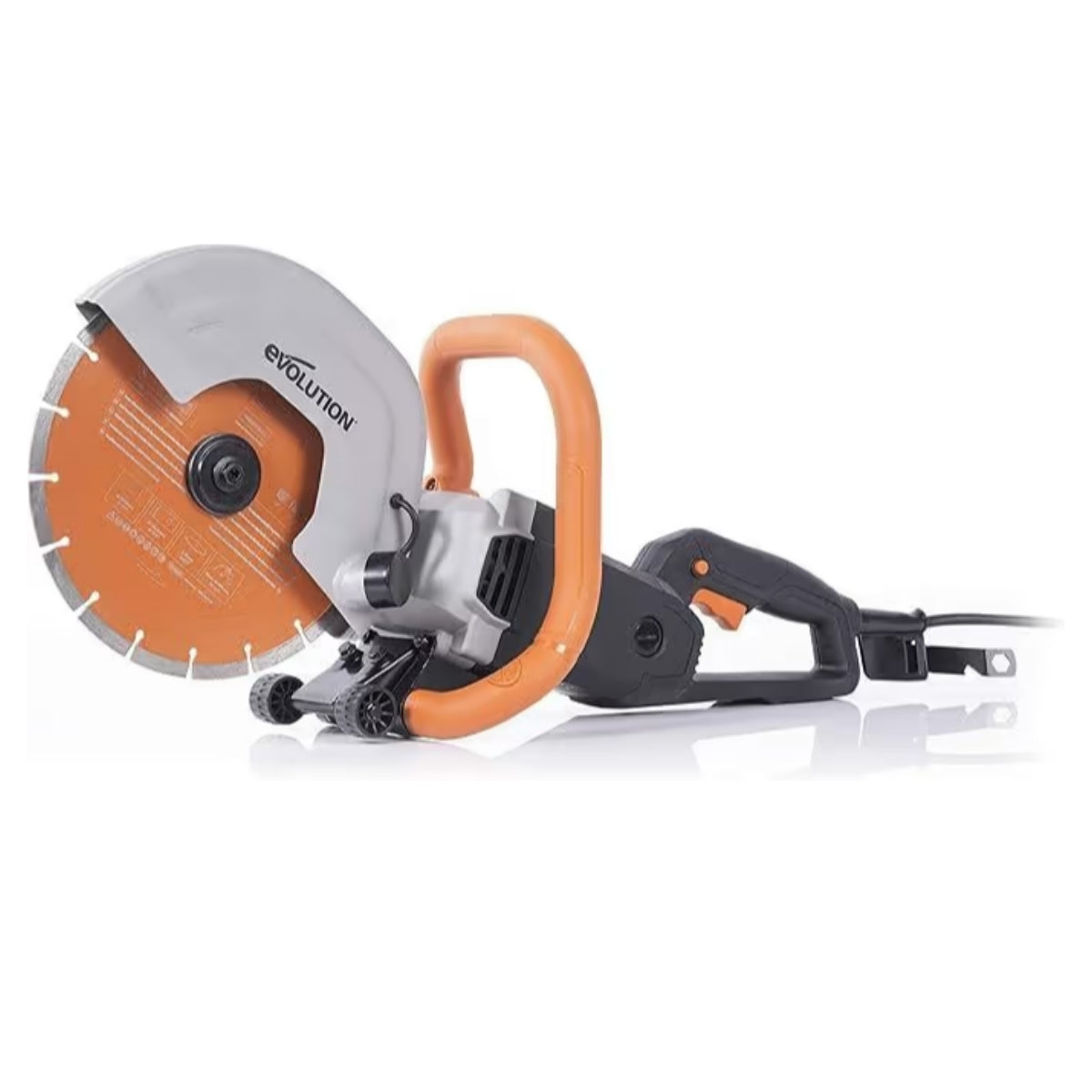

Evolution R255DCT | 10 in. | Electric Concrete Cut-Off Saw | Disc Cutter | Diamond Blade Included
$229.00
×
Evolution R255DCT | 10 in. | Electric Concrete Cut-Off Saw | Disc Cutter | Diamond Blade Included
SKU: R255DCT
- Electric powered. No pull chords, no petrol and no servicing, saves you time and money.
- No Harmful Fumes. Makes this tool safe to use in any environment.
- Lightweight design. Central position gives a balanced centre of gravity.

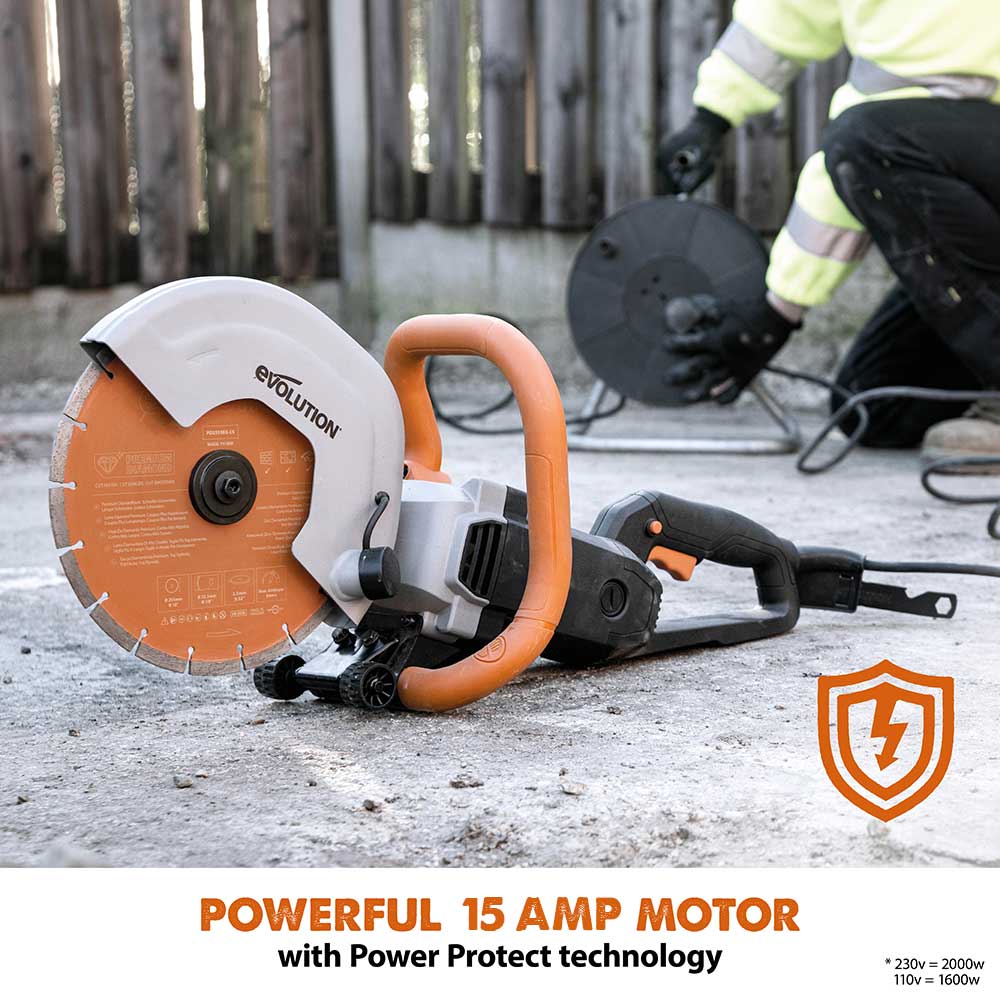

- Powerful 15A motor with soft start, wheeled skid plate. Read more
3 Year Warranty
45-Day Satisfaction Guarantee
Pay-In-4:
$57.25
over 4 months
Frequently Bought Together
Compatible with:
Description

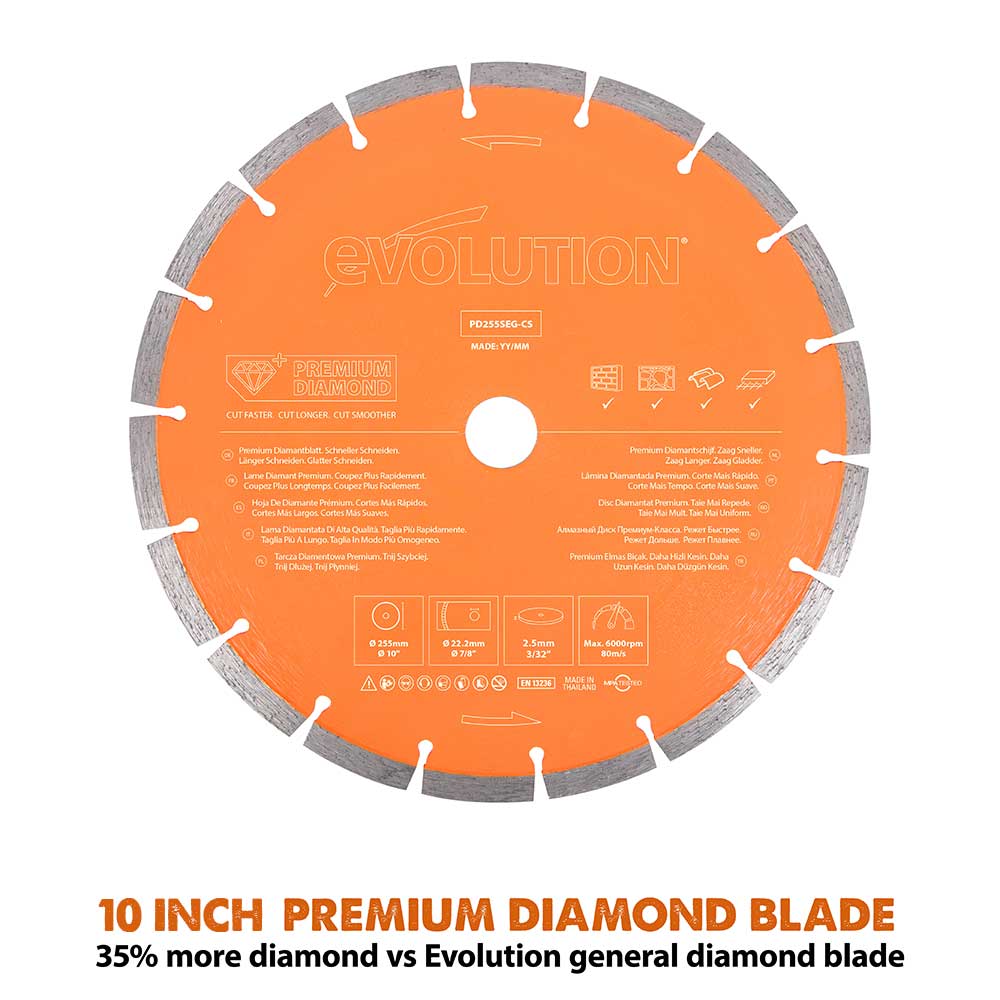

Open up brick walls quicker and easier than ever before with the all-new Evolution 10 inch electric concrete saw, disc cutter. It can cut the depth of a brick wall in one pass! Up to 4 inch cut capacity, premium diamond blade for faster cuts and increased blade life, plus extra long 13 ft rubber power cable.
- Greater Cut Capacity. Cut the width of a brick in one pass with the supplied 10-inch premium blade.
- Powerful Motor. The powerful electric motor makes light work of all types of masonry including reinforced concrete! Central position gives a balanced centre of gravity.
- Electric Blade Brake. Stops the blade in seconds.
- Built-in Dust Port. With rubber cap for easy vacuum attachment and dust collection.
- Lightweight Design. No heavy petrol engine or batteries weighing you down for a light and manoeuvrable design.
- More Economical. No expensive petrol or batteries, no oil & no servicing.
- No Harmful Fumes. Makes this tool safe to use in any environment.
- Large Fixed Blade Guard. Protects the user from flying debris & optimises dust suppression & collection.
- Full Wrap Around Handle. For easy horizontal and vertical cutting.
- Reinforced Skid Plate. Allows you to thrown the machine down on any surface with confidence. The raised angle lifts the blade away from the floor so you can put the machine down straight after the cut.

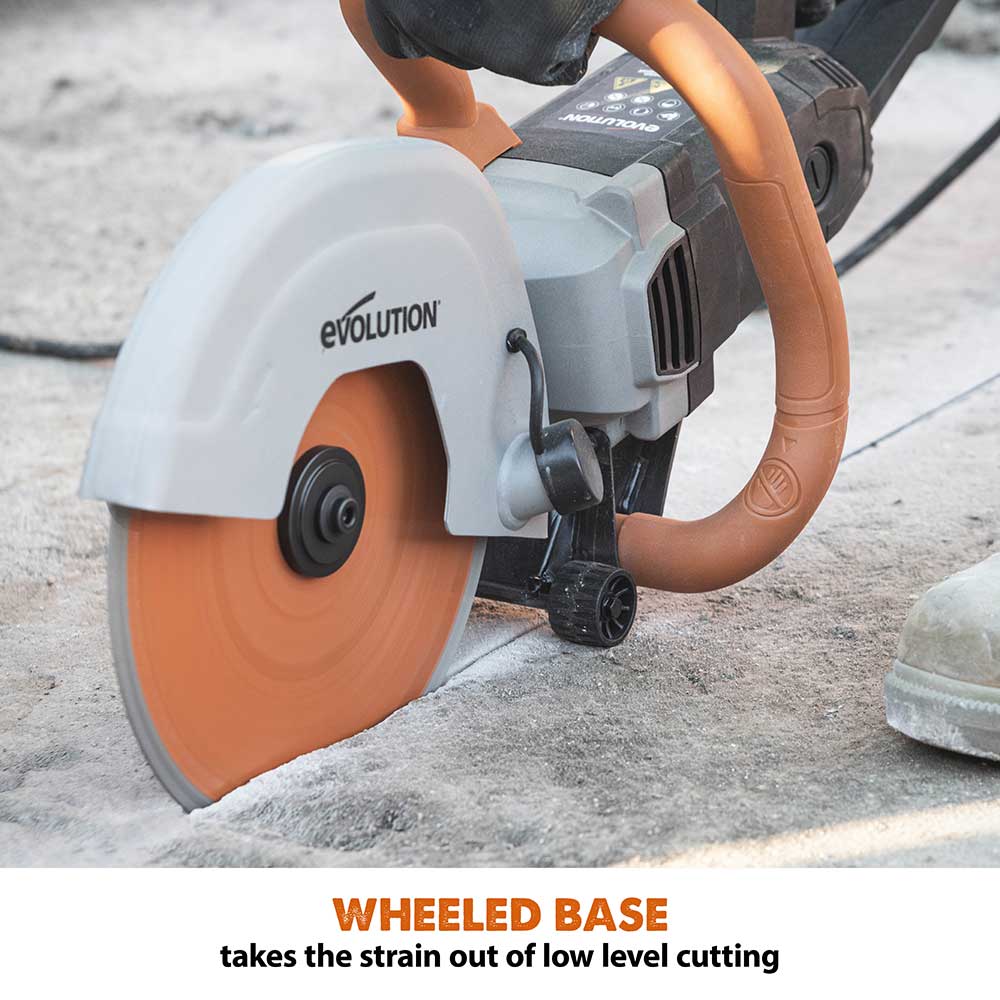

- Built-In Wheels Give accuracy when making long, straight cuts at ground level & reduces user fatigue.

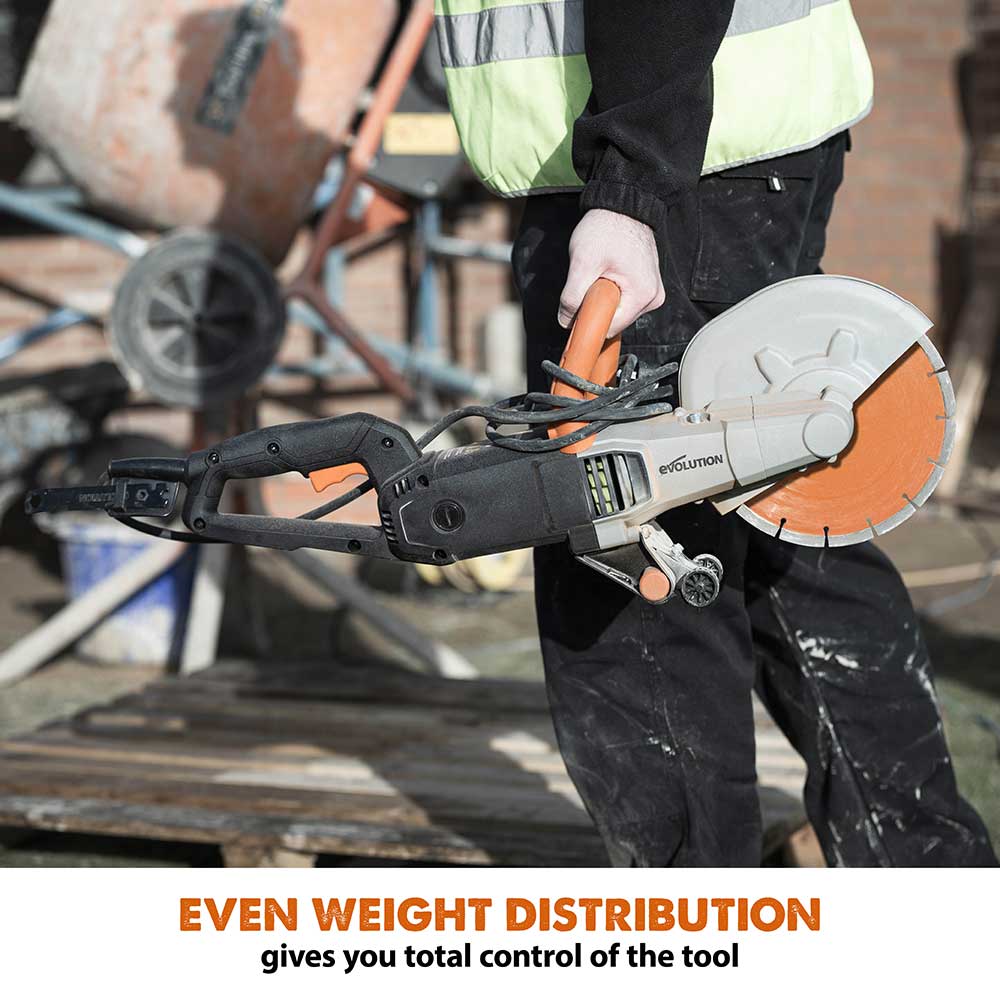

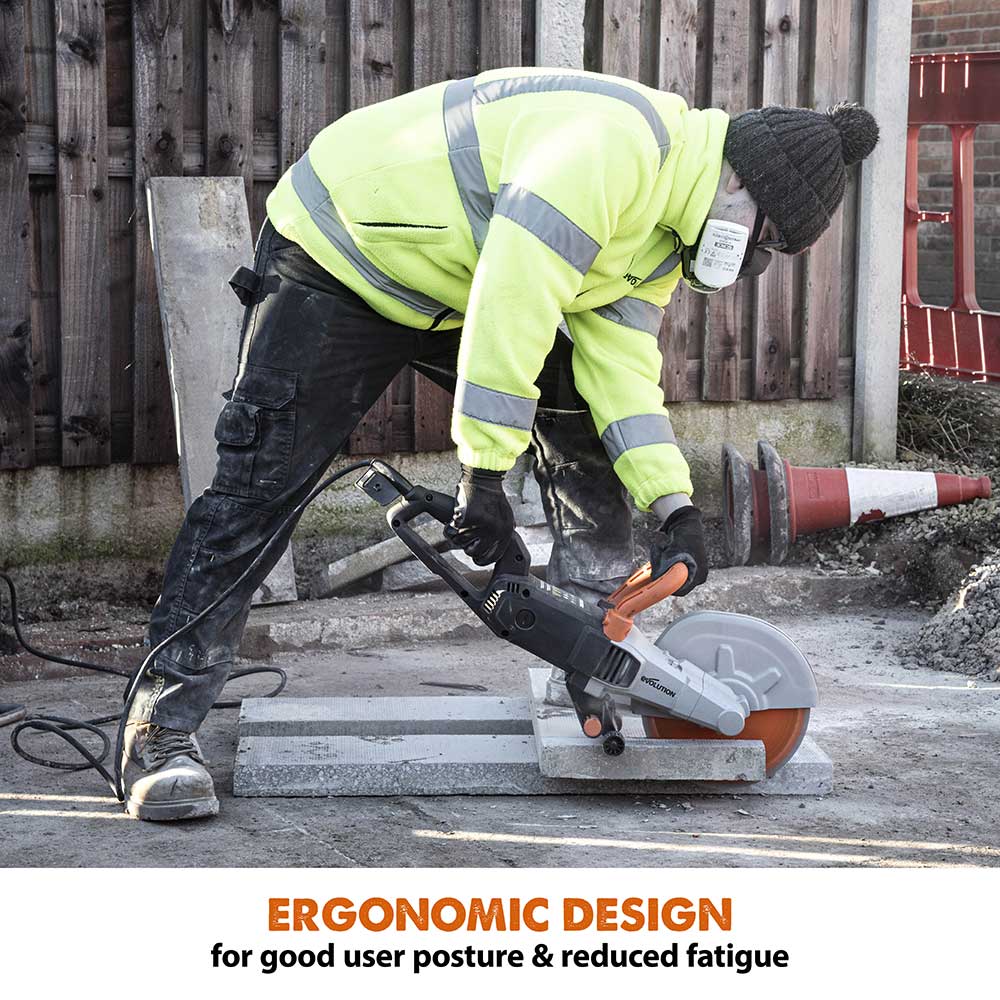

- Total Control. Ergonomic handles and optimised weight distribution gives the user total control when cutting giving an accurate cut and reduced user fatigue.
- Safer To Use. Ergonomic user posture & more blade coverage drastically reduces the chance of an accident.

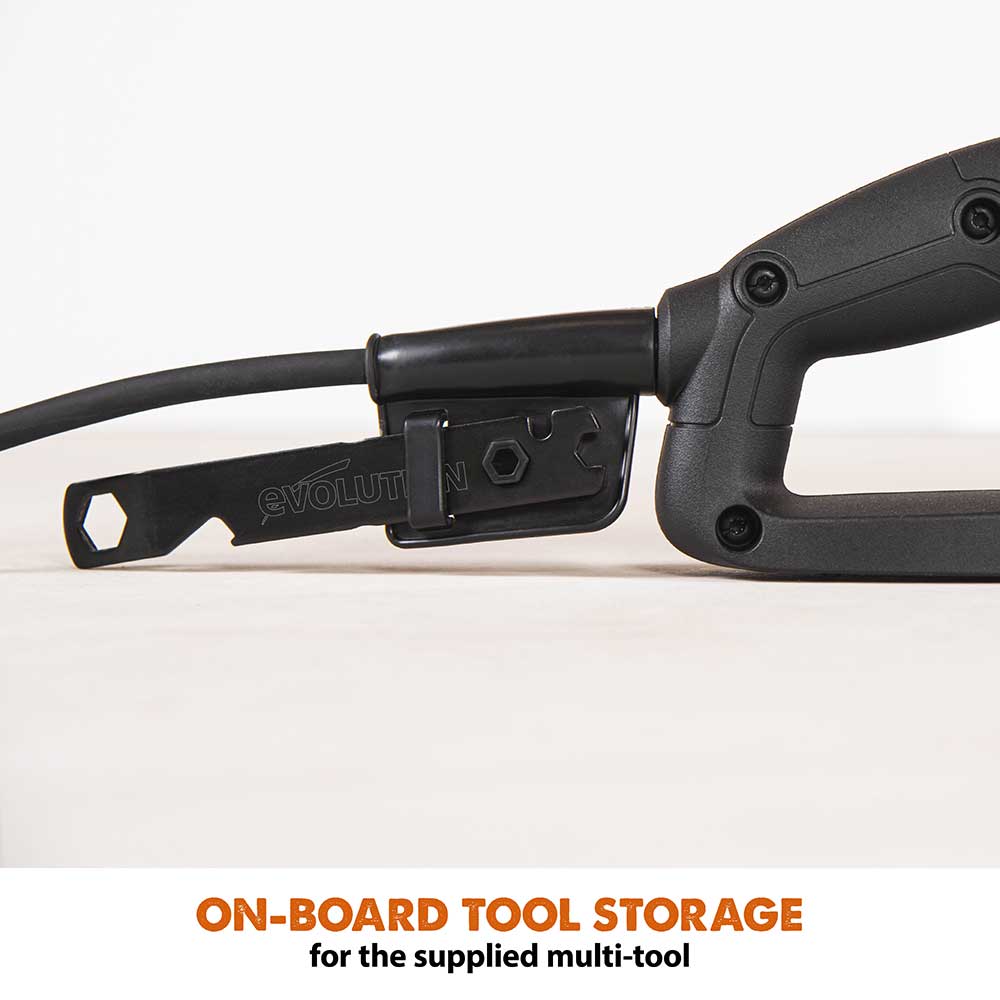

- On-board Tool Storage. One multi-tool for all machine adjustments with dedicated onboard storage.
All Evolution DCT models come equipped with our new Power Protect Technology to conquer the most demanding jobs and cut for years to come.
 |
Double insulated motor coil protects the motor from dust ingress and vastly improves motor life. Features a robust powder coating for complete protection. |
 |
Unique aerodynamic fan system increases airflow through the motor for better cooling during heavy-duty use and expels dust. |
 |
Specially designed air vents prevent water and other debris from entering the motor housing to make it safe for use in all conditions. |
 |
Built-in drainage holes allow any water to escape from inside the machine body and prevents damage to internal parts. |
Specifications
| Power | 15 Amp |
| Rated Speed | 6000 RPM |
| Max. Duty Cycle | 20 Mins |
| Weight | 16 lb |
| Cable | 13 ft Rubber Cable |
| Cutting Capacity at 90˚ | 4 in. |
| Blade Supplied | General Purpose Diamond Blade (D255SEG-CS) |
| Blade Diameter | 10 in. |
| Blade Bore / Arbor | 7/8 in. |
| Sound Pressure Max. LPA | 98.0dB(A) K=3dB(A) |
| Sound Power Level Max. LWA | 109.0dB(A) K=3dB(A) |
| Handle Vibration Max. Level | 6.15m/s2 K=1.5m/s2 |
Compatible With:
| Evolution 10 in., Segmented Edge, 1 in. Bore, Concrete, Stone, Brick Cutting Diamond Blade (D255SEG-CS) |
| Evolution 10 in., Segmented Edge with High Diamond Concentration, 1 in. Bore, Premium Diamond Blade (PD255SEG-CS) |
| Evolution 10 in., Segmented Edge, 1 in. Bore, Multi-Purpose, Metal Cutting Diamond Blade (MD255SEG-CS) |
| Evolution Soft Shell Carry Tool Bag (012-0250) |
| *Evolution Electric Disc Cutters are not intended to be used with 3rd party abrasive discs. These tools have not been certified for these blade types and their use could potentially result in accident or injury. |
Items Supplied
| Blade | x1 (PD255SEG-CS) |
| Multi-Tool (Adjustments) | x1 |
| Wheeled Undercarriage | x1 |
| Rubber Cap (Extraction Port) | x1 |
| Instruction Manual | x1 |
Documents
Optional Concrete Saw Blades
 |
 |
 |
|
|---|---|---|---|
| Materials | General Purpose Diamond Blades |
Premium Diamond Blades |
Multi-Material Diamond Blades |
| Cured Concrete | ✪✪✪ | ✪✪✪ | ✪ |
| Reinforced Concrete | ✪✪✪ | ✪✪✪ | ✪ |
| Standard Brick | ✪✪✪ | ✪✪✪ | ✪ |
| Roof Tile | ✪✪✪ | ✪✪✪ | ✪ |
| Soft Natural Stone (Limestone, Sandstone etc.) | ✪✪ | ✪✪✪ | ✪ |
| Engineering Brick | ✪✪ | ✪✪✪ | ✪ |
| Hard Natural Stone (Quartz, Granite etc.) | ✪ | ✪✪✪ | X |
| Iron | X | X | ✪✪✪ |
| Ductile Iron | X | X | ✪✪✪ |
| Steel & Stainless Steel | X | X | ✪✪✪ |
| Plastic | X | X | ✪✪✪ |
| Abrasive Material | ✪✪ | ✪✪ | ✪✪ |
| Aluminium | X | X | ✪✪ |
| Fibre-Reinforced plastic | X | X | ✪✪ |
| Wood | X | X | ✪✪ |
| Hard Tile, Porcelain | X | X | ✪ |
| Ceramic Tiles | X | X | ✪ |
| X - Not Suitable | ✪ - Limited Life | ✪✪ - Good | ✪✪✪ - Optimum |
