Evolution R255SMS-DB+: Dual Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade

SKU: R255SMSDB+

Multi-Material: Cuts wood, steel, aluminum, and more with one blade.
Precision: 12" slide, laser guide, and depth adjustment.
Versatile Angles: 45°-45° bevel tilt, 50°-50° miter.
User-Friendly: Ergonomic, quick stops, dust collection, carry handles.

Frequently Bought Together

Compatible with:

Description

The biggest saw in the Evolution family of miter saws. An impressive 3-1/2 depth of cut and a 12-inch slide for big cross cuts in 4 x 4-inch fence posts, as well being able to cut through hardwoods, mild steel, aluminum, plastic and more with a single blade included with the machine. Complete with all the accessories required to deliver fast, accurate, hassle-free cutting.

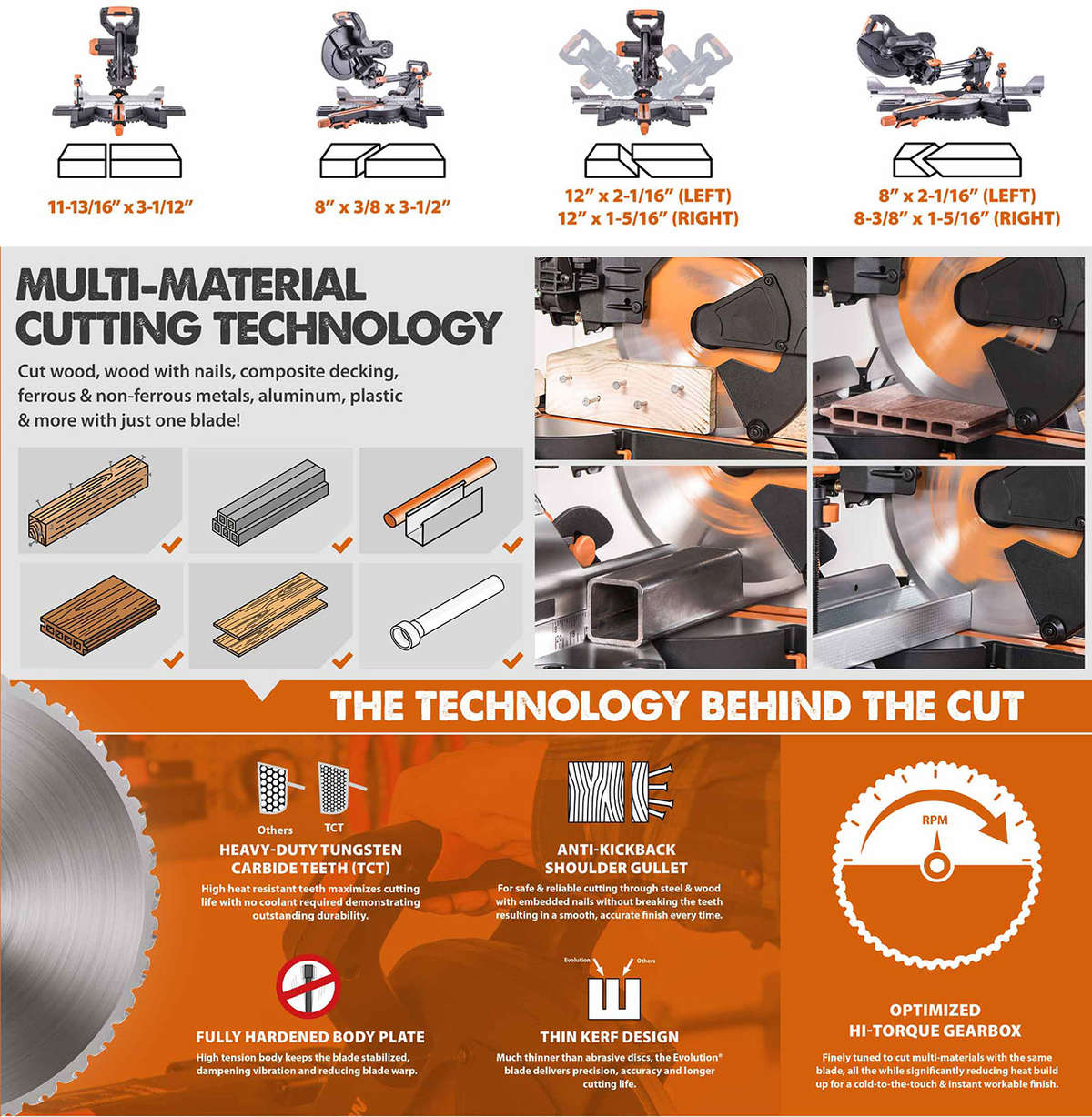

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with 11-13/16-inch sliding functionality.
Adjustable depth of cut and laser precision guidance.
Smooth, square, reliable cutting every time in a variety of materials.

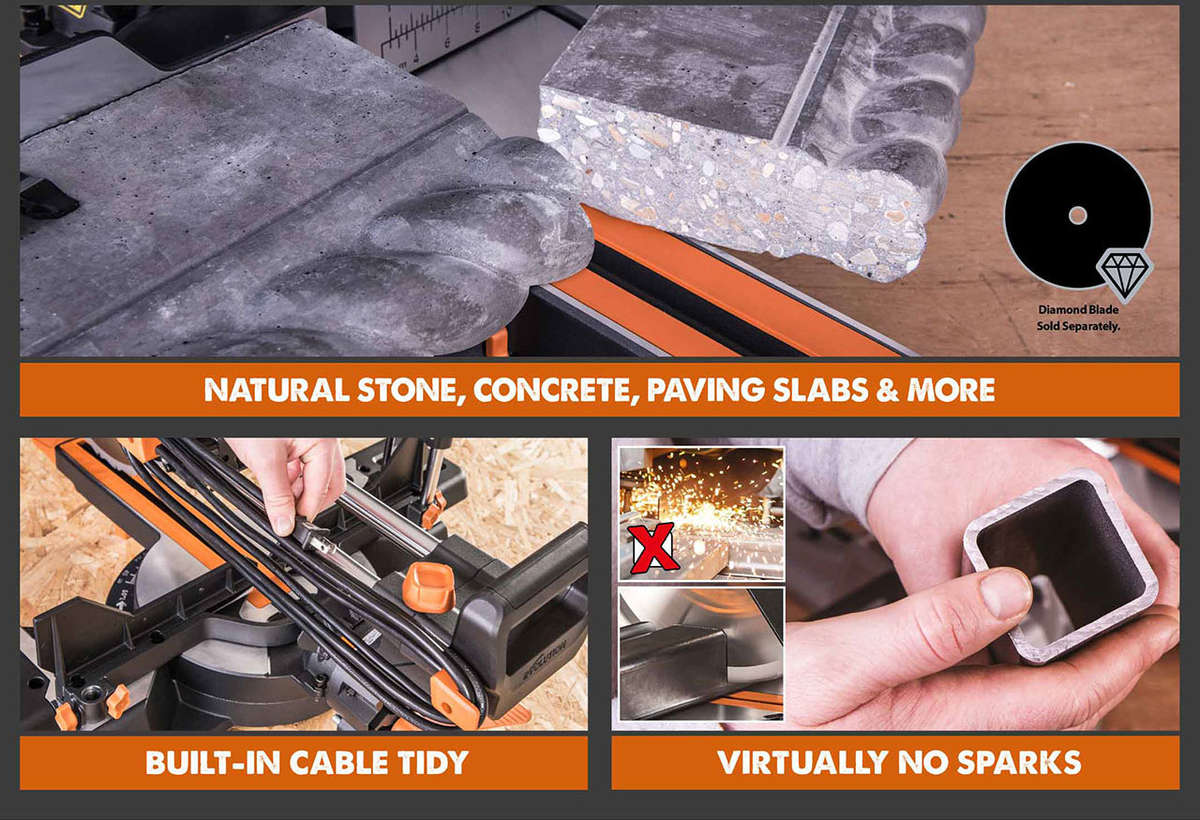

Cut mild steel with no heat, no burrs & virtually no sparks.
Powerful 15A hi-torque, optimized gearbox, and blade system to increase motor and blade life.
Perform crosscuts, miter cuts, bevel cuts and compound cuts with precision.

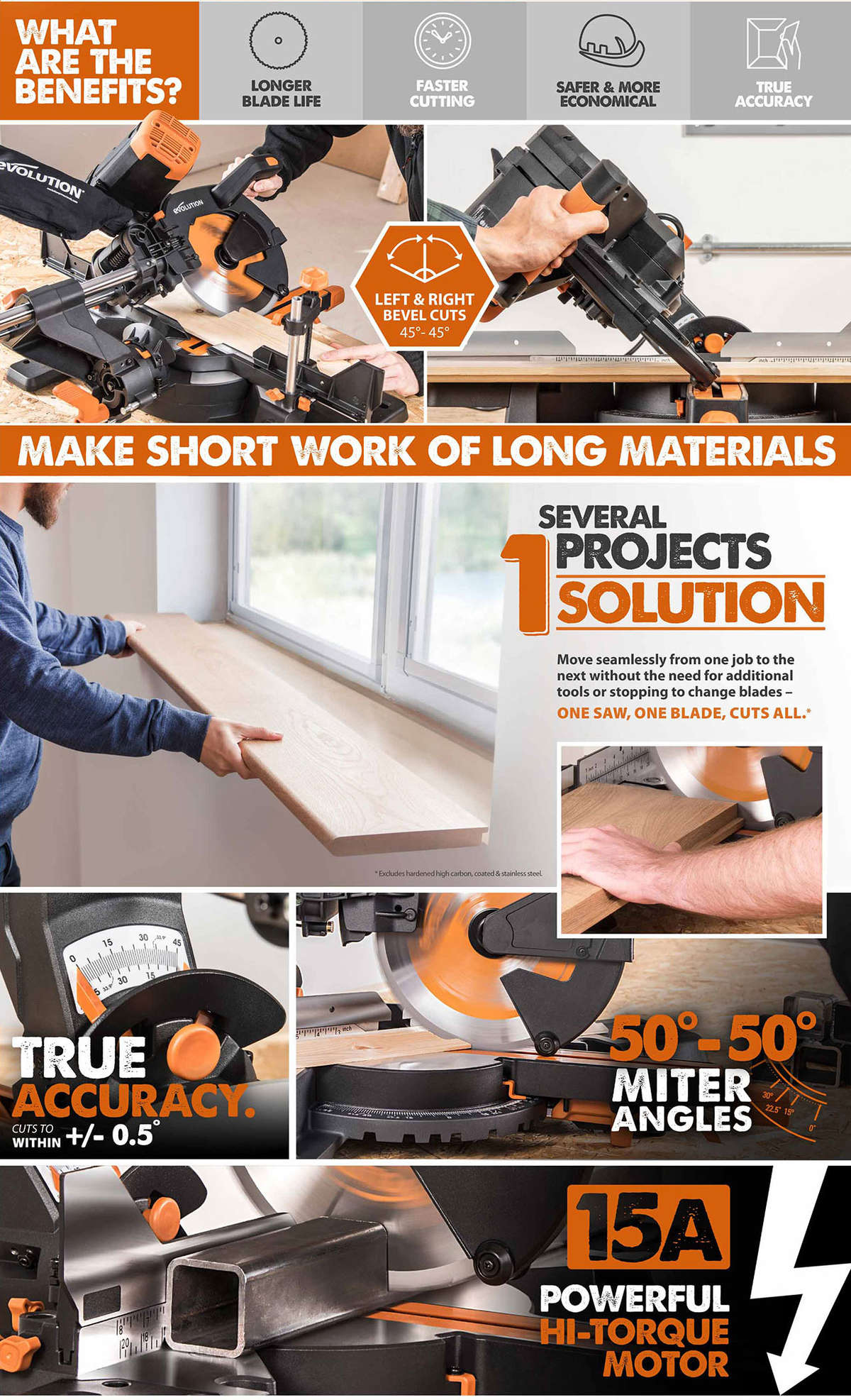

Cut 45° - 45° bevel tilt and 50˚ - 50˚ miter angles.
Quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
An impressive 11-13/16 x 3-1/2 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.
Ambidextrous, ergonomic, horizontal trigger with comfortable grip combats repetitive strain.
Compatible with Evolution's Mitre Saw Stand, perfect for accurate repeat cutting.
Evolution's 3-year guarantee.

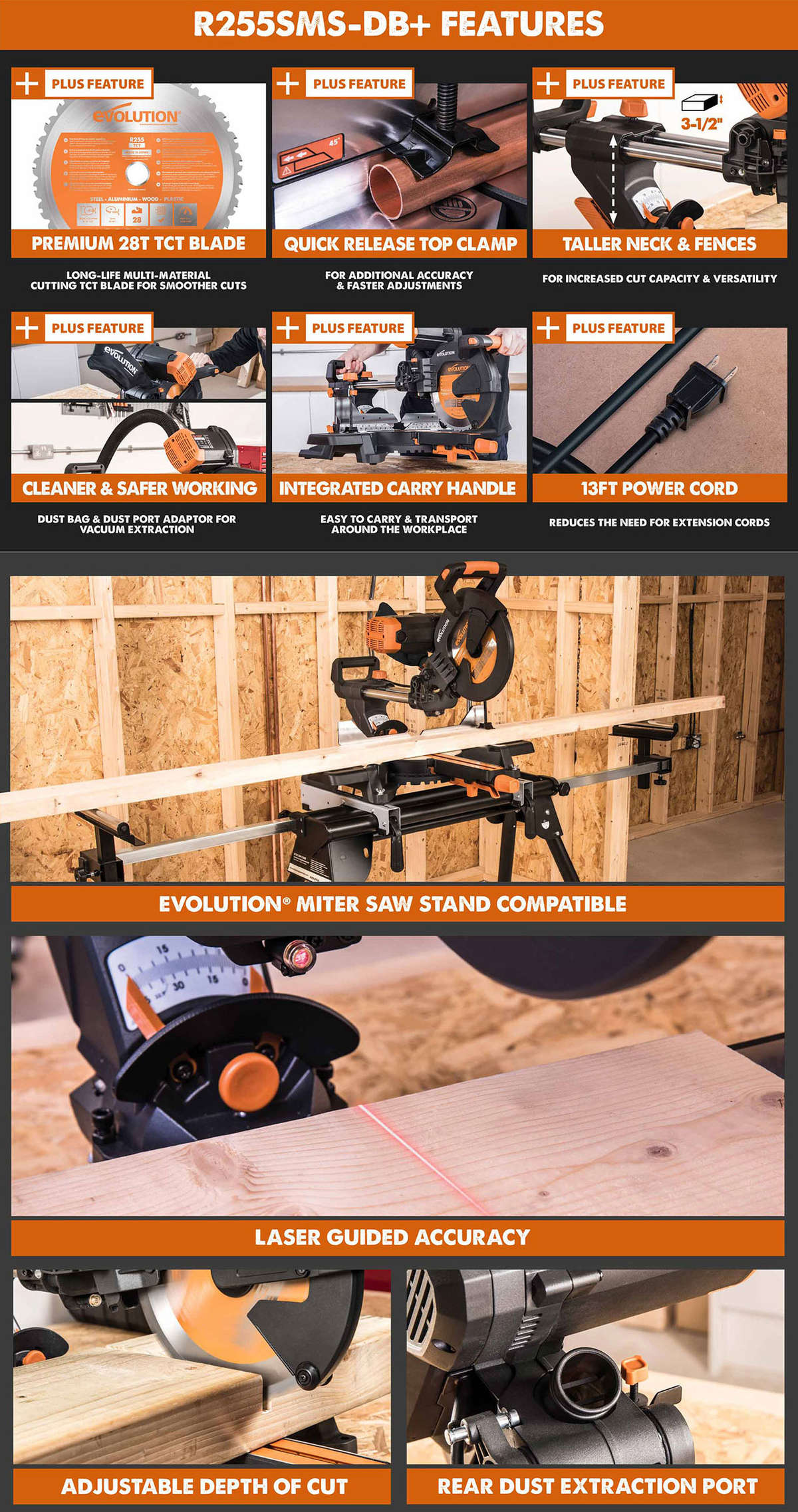

+PLUS Features

Includes a premium, TCT, 10-inch blade included for long-life, multi-material cutting.
Quick-Release top clamp included for additional safety and faster adjustments.
Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright.
Laser-guided cutting line on your workpiece for assisted straight-line cutting.
Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
Integrated carry handles - easy to carry and transport around the workplace.
13ft rubber power cable gives you the power and reach you need to get the job done.

Cutting Capacities

Max. Cross Cut (0° x 0°):	11-13/16 x 3-1/2 in.
Max. Bevel Cut Left (0° x 45°):	11-13/16 x 2-1/16 in.
Max. Bevel Cut Right (0° x 45°):	11-13/16 x 1-5/16 in.
Max. Miter Cut (45° x 0°):	8-3/8 x 3-1/2 in.
Max. Compound Cut Left (45° x 45°):	8-3/8 x 2-1/16 in.
Max. Compound Cut Right (45° x 45°):	8-3/8 x 1-5/16 in.
Mild Steel Plate (Max. Thickness):	1/4 in.
Mild Steel Box Section (Max. Wall Thickness):	1/8 in.

Cutting Applications

Wood	Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
Ferrous Metal	Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
Non-Ferrous Metal	Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
Plastic	Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
Not Recommended	Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life.

Specifications

Machine Specs

Motor (120V 60Hz):	15 A
Speed No Load:	2600 rpm
Max. Bevel (Left & Right):	45° - 45°
Max. Miter:	50° - 50°
Cable Length:	13 ft

Blade Specs

Blade Dia.:	10 in.
No. of Teeth:	28
Bore:	1 in.
Kerf:	0-5/64 in.

Dimensions & Weights

Product Dimensions:	14-3/16 x 27-3/4 x 28-47/64 in.
Packaging Dimensions:	22-1⁄4 x 14-3⁄8 x 20-15⁄32 in.
Product Weight:	40.3 lbs
Packaged Weight:	45 lbs

Noise Data

Sound Pressure Level L_PA:	95,8 dB(A) K=3 dB(A)
Sound Power Level L_WA:	108,8 dB(A) K=3 dB(A)

Items Included

Machine Table Extensions x2	6mm & 4mm Dual-Ended Hex Key
Rotary Table And Neck	Cutting Head
Carriage Slides	Mitre Locking Knob
Mains Cable	Guide/Clamp
Self Tapping Cap Screw x1	M6 x 16mm Socket Headed
Screws x4 M5 x 12mm	Socket Headed Screws x2
Laser Lens Cap	Cable Clip
Slide Locking Knob	Dust Port Adaptor
Dust Collection Bag	Quick Release Hold Down Clamp
10 In. (255mm) 28 Tooth Blade	Instruction Manual

Documents

Download PDF Manual

Download PDF Diagrams

Spare Parts (Head)

Spare Parts (Base And Rails)

Spare Parts (Motor)

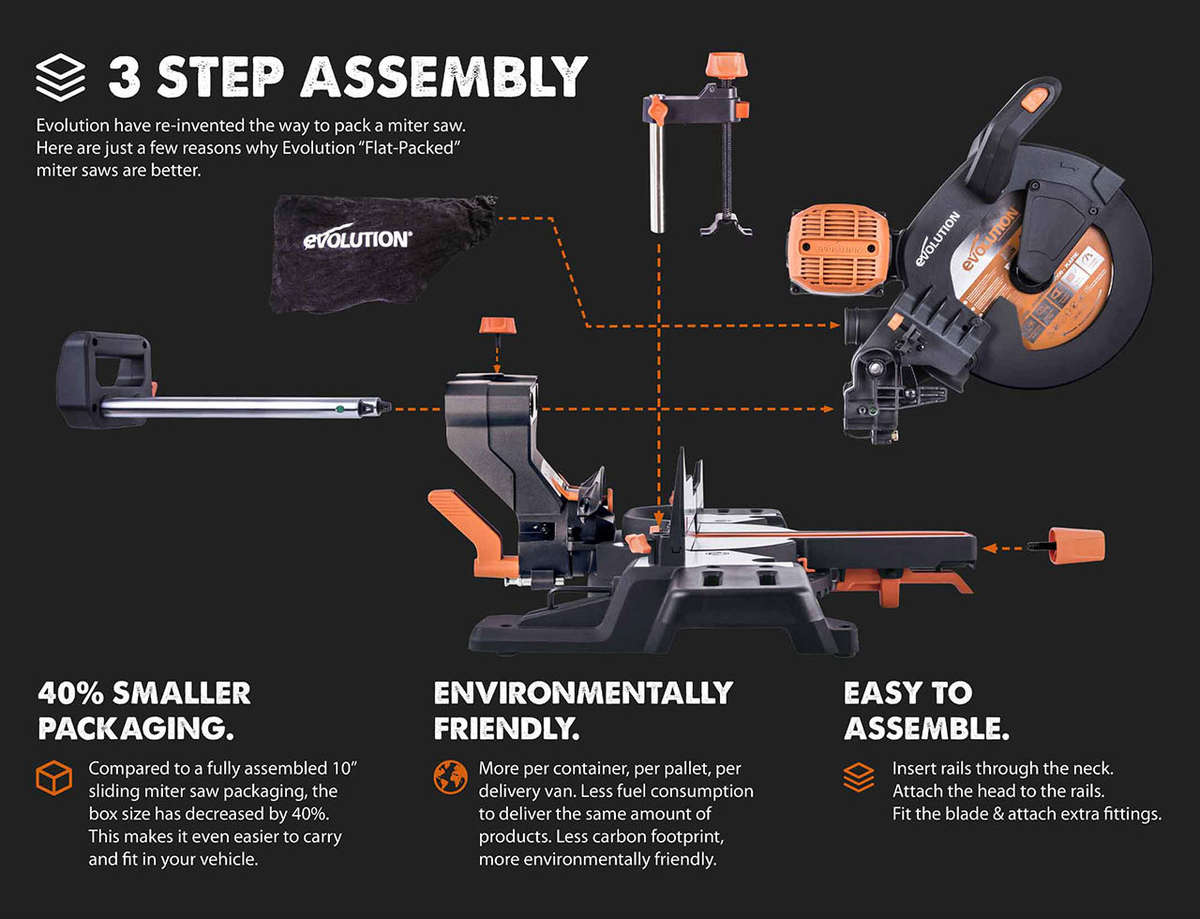

Assembly Guide

Miter Saw Cross Cut Capacities

		R185SMS+ 7-1/4" Miter Saw	R255SMS+ 10" Miter Saw	R255SMS-DB+ 10" Miter Saw
Max. Cross Cut		2-1/4" x 8-1/4" (Actual)	3-9/16" x 11-13/16" (Actual)	3-1/2" x 11-13/16" (Actual)
Nominal Size Lumber	Actual Size Lumber
1" x 2"	3/4"x 1-1/2"	✔	✔	✔
1" x 3"	3/4"x 2-1/2"	✔	✔	✔
1" x 4"	3/4"x 3-1/2"	✔	✔	✔
1" x 5"	3/4"x 4-1/2"	✔	✔	✔
1" x 6"	3/4"x 5-1/2"	✔	✔	✔
1" x 7"	3/4"x 6-1/4"	✔	✔	✔
1" x 8"	3/4"x 7-1/4"	✔	✔	✔
1" x 10"	3/4"x 9-1/4"	-	✔	✔
1" x 12"	3/4"x 11-1/4"	-	✔	✔
1-1/4" x 4"	1" x 3-1/2"	✔	✔	✔
1-1/4" x 6"	1" x 5-1/2"	✔	✔	✔
1-1/4" x 8"	1" x 7-1/4"	✔	✔	✔
1-1/4" x 10"	1" x 9-1/4"	-	✔	✔
1-1/4" x 12"	1" x 11-1/4"	-	✔	✔
1-1/2" x 4"	1-1/4" x 3-1/2"	✔	✔	✔
1-1/2" x 6"	1-1/4" x5-1/2"	✔	✔	✔
1-1/2" x 8"	1-1/4" x 7-1/4"	✔	✔	✔
1-1/2" x 10"	1-1/4" x 9-1/4"	-	✔	✔
1-1/2" x 12"	1-1/4" x 11-1/4"	-	✔	✔
2" x 2"	1-1/2" x 1-1/2"	✔	✔	✔
2" x 4"	1-1/2" x 3-1/2"	✔	✔	✔
2" x 6"	1-1/2" x 5-1/2"	✔	✔	✔
2" x 8"	1-1/2" x 7-1/4"	✔	✔	✔
2" x 10"	1-1/2" x 9-1/4"	-	✔	✔
2" x 12"	1-1/2" x 11-1/4"	-	✔	✔
3" x 6"	2-1/2" x 5-1/2"	-	✔	✔
4" x 4"	3-1/2" x 3-1/2"	-	✔	✔
4" x 6"	3-1/2" x 5-1/2"	-	✔	✔
4" x 8"	3-1/2" x 7-1/4"	-	✔	✔
4" x 10"	3-1/2" x 9-1/4"	-	✔	✔
4" x 12"	3-1/2" x 11-1/4"	-	✔	✔
4" x 14"	3-1/2" x 13-1/4"	-	-	-
